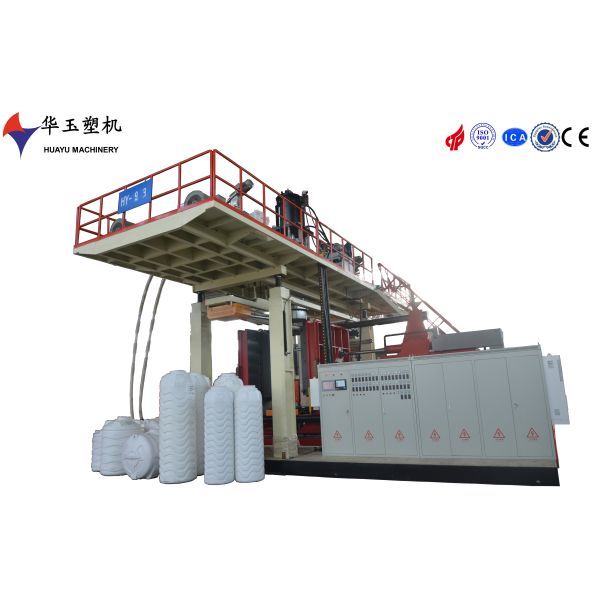

HY200L-1000L 7LAYERS BLOW MOULDING MACHINE with 260kw Average Consumption

Capacity range: 200-1000L

Machine dimension : 10.5*5.4*6M

Average consumption: 260kw

Total power: 520kw

Accumulator capacity: 35KG

Extruder motor: 37kw*7

Screw diameter: 80*7MM

Screw L/D ratio: 28:1

Plasticizing capacity: 430KG/H

Platen size: 1500*1700*70MM

Platen distance: 850*2600MM

Clamping force: 800KN

Servo motor: 30kw

Weifang Huayu Plastic Machinery Co.,Ltd. was founded in 2002, the manufacturer specialized in superlarge automatic blow moulding machine. The company intergrates the leading technique and concept indomestic and abroad, specializing in the design, production, and sales of large automatic blow mouldingmachine from one to ten layers products.

Our company's blow moulding machine can produce various types of plastic water tanks range from 50liters to 30000 liters, including lBC tank, double L ring drum, road barrier, road cone, isolation wall, pallettable board, float, kayak, toolbox and other blow moulding products. The excellent quality, stable perfor-mance, and superior cost-effectiveness of the company's products not only sell well in the domesticmarket, but also export to more than 80 countries and regions such as Asia, Southeast Asia, the MiddleEast, Europe, North America, South America, and Africa etc, receiving high praise from customers.

At present, our company has made breakthrough progress in the technology of multi-layer storage diehead, filling multiple gaps in the domestic blow moulding industry. We will continue to devote ourselvesto research and development in the feld of blow moulding machine, and strive to build an internationalbrand in the blow moulding industry!
