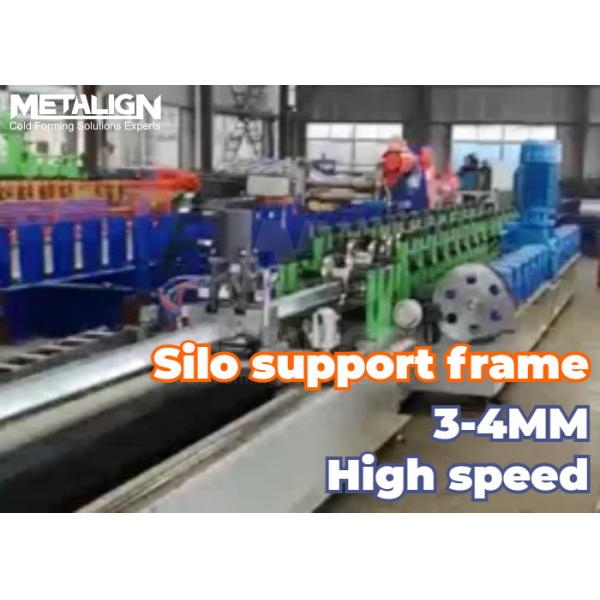

Heavy Duty Column Silo Roll Forming Machine With Tracking Punching And Hydraulic Cutter

Heavy Duty Silo Column Roll Forming Machine With Tracking Punching And Hydraulic Cutter

1. Production Line Overview

• Designed for silo manufacturers and agricultural construction suppliers, this line delivers precision forming of heavy-gauge galvanized steel profiles with pre-punched holes for efficient onsite assembly.

2. Profile Description

• The profile is a heavy-duty galvanized steel column, 1.2–4.2mm thick, designed for silo wall framing. It features pre-punched installation holes and a robust shape for structural strength in agricultural and industrial buildings.

3. Production Process

• Hydraulic Decoiler → Guiding System → Roll Former → Flying Punching → Straightening → Hydraulic Cutter → Out Table
• The forming process integrates continuous profiling with tracking punching, allowing the forming machine to run non-stop while the punching head synchronizes its movement with the line. This improves productivity, especially for profiles requiring multiple installation holes.

4. Technical Parameters

5. Key Focus

• Tracking punching ensures continuous operation with high punching accuracy.
• Supports thick material forming up to 4.2mm galvanized steel.
• Suitable for producing high-strength structural silo components.
• Chain-driven 16-stand roll former guarantees stable profile shape.
• Hydraulic cutting ensures clean, burr-free ends after forming.

6. Production Line Components

7. Customization Options

• We offer tailored solutions for silo column profiles, including adjustable punching positions, variable forming station numbers based on profile size, optional gear box drive for higher torque, servo feeding for punching, and automatic stacking systems for improved packaging efficiency.

Metalign is a trusted manufacturer specializing in cold roll forming machine production and custom roll forming solutions. Located in Botou City, the heart of China’s roll forming industry, we bring over 30 years of combined technical and engineering experience to every project.

Our team is dedicated to designing and building precision roll forming lines tailored to your profile needs — from roofing and purlin lines to shelving, door frames, highway guardrails, and more. We are known for our practical designs, robust structures, and responsive after-sales support.

With a strong reputation in global markets including North America, Europe, Southeast Asia, and the Middle East, Metalign is committed to helping customers improve efficiency, reduce costs, and gain a competitive edge.
