| Brand Name: | H&F |
| Model Number: | HF-250514 |
| Certification: | ISO-9001 |
| Place of Origin: | Hebei, China |
| MOQ: | 28000 Square Meters |
| Price: | USD4.82/M2~USD4.95/M2 |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 88000 Square Meters per month |
| Delivery Time: | According to order quantity |
| Packaging Details: | 50 rolls per bundle or as customers' requirements |
| Product Name: | Pipeline Coating Welded Mesh |
| Key word: | Pipeline Reinfored Welded Mesh |
| Line wire quantity: | 6lines,8lines,10lines |
| Material: | Galvanized wire |
| Surface treatment: | hot dipped galvanized,electric galvanized |
| Middle line wire pitch: | 25.4 mm |
| Wire diameter: | 1.8mm-2.7mm |
| Cross wire pitch: | 67 mm or 92.4 mm |
| Hole Size: | 25.4mm x 67mm |
| Zinc coated: | 70gm²~300g / m² or custom |
| Both sides line wire pitch: | 25.4 mm or 50.8 mm |
| Exposed Wire Edge: | ≤ 2.5 mm |
| Width: | 190.5mm |
| Length: | 140m,145m,280m etc |
| Hardness range: | 485N/mm2~650N/mm2 |
| Roll Diameter: | 700mm~1100mm |
| Load container way: | In bulk or in pallet |
| Sample: | Free sample can test quality |
| Company Info. |
| Honesty & Faith Hardware Products Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

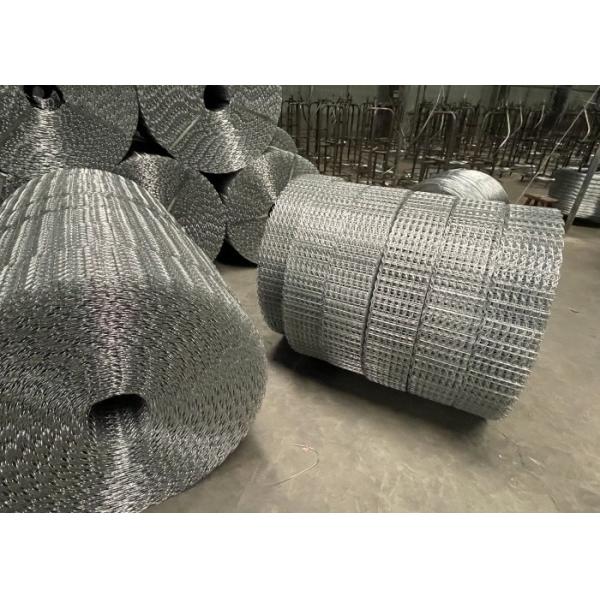

190.5mm Roll Width Galvanized Pipeline Coating Welded Mesh For River Bottom Oil Pipeline
Pipeline Coating Welded Mesh Description:
Pipeline Coating Welded Mesh also called Pipeline Reinforced Welded Mesh.It is a kind of pipeleine
special use welded mesh.
Pipeline Coating Welded Mesh is made of good quality galvanized wire.Our machine professional
welded in unifrom and standard hole size:25.4mm*67mm.The roll width in standard 190.5mm.
The roll length can make different long for choice.for example:140m,280m or custom as required length.
It has good advantages:Smooth surface,High tensile strength,strong welded point,anti-rust,anti-corrosion.
So widely use for River Bottom Oil Pipeline projects.
Pipeline Coating Welded Mesh specification list:
| Product Name | Pipeline Coating Welded Mesh |
| Material | Hot dipped galvanized wire |
| Wire diameter | 1.8mm-2.7mm |
| Hole size | 25.4mm x 67mm |
| Surface treatment | hot dipped galvanized |
| Zinc coated | 70gm²~300g / m² or custom |
| Middle line wire pitch | 25.4 mm |
| Cross wire pitch | 67 mm or 92.4 mm |
Both sides line wire pitch | 25.4 mm or 50.8 mm |
| Line wire quantity | 6lines, 8lines or 10lines |
| Exposed Wire Edge | ≤ 2.5 mm |
| Hardness range | 485N/mm2~650N/mm2 |
| Roll Diameter | 700mm-1150mm |
| Width dimensions | 190.5mm |
| Length dimensions | 140m,145m,280m etc |
| Sample | Free sample can test quality |
Pipeline Coating Welded Mesh export specification details:

Pipeline Coating Welded Mesh details:

Pipeline Coating Welded Mesh normal export 4kinds:

Type-01 Type-02 Type-03 Type-04
Pipeline Coating Welded Mesh Good Features:
Pipeline Coating Welded Mesh packing way:
Pipeline Coating Welded Mesh widely Applications:

Show our Pipeline Coating Welded Mesh product pictures:
