FETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P

Categories	Pneumatic Air Cylinders
Brand Name:	FESTO or OEM
Model Number:	188079 ADVC-10-10-A-P 188221 ADVC-32-15-A-P 188267 ADVC-50-25-I-P 188094 ADVC-12-5-A-P 188222 ADVC-32-20-A-P 188288 ADVC-63-10-I-P
Place of Origin:	CHINA GERMANY
MOQ:	1pc
Price:	EXW USD5-63
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1200 pcs per month
Delivery Time:	1-10 working days
Packaging Details:	plastic bag, carton，OPP bag
Cylinder barrel:	Anodized wrought aluminum alloy
Design:	Piston Piston rod
Working Pressure:	0-10Bar
Operating medium:	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium:	Lubricated operation possible (in which case lubricated operation will always be required)
Ambient temperature:	-20°C-80°C
Piston Material:	High-alloy steel,and High-alloy stainless steel
Seals:	Polyurethane, nitrile rubber and Fluoro rubber
Bearing and end cap:	Wrought aluminium aloy
Pneumatic Connection:	M3, M5, or G1/8/G1/4 threads (varies by piston size)

Contact Now

Add to Cart

Company Info.

Airwolf Automation

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

FETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P

FETSO VDMA 24562 Short-stroke 2.5–25 mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P

Order Codes:

526897 ADVC-4-2.5-P	188117 ADVC-16-25-I-P	188209 ADVC-32-5-I-P
526898 ADVC-4-5-P	188145 ADVC-20-5-I-P	188210 ADVC-32-10-I-P
526899 ADVC-6-5-P	188146 ADVC-20-10-I-P	188211 ADVC-32-15-I-P
526900 ADVC-6-10-P	188147 ADVC-20-15-I-P	188212 ADVC-32-20-I-P
526903 ADVC-10-5-P	188148 ADVC-20-20-I-P	188213 ADVC-32-25-I-P
526904 ADVC-10-10-P	188149 ADVC-20-25-I-P	188237 ADVC-40-5-I-P
530568 ADVC-12-5-P	188177 ADVC-25-5-I-P	188238 ADVC-40-10-I-P
530569 ADVC-12-10-P	188178 ADVC-25-10-I-P	188239 ADVC-40-15-I-P
188054 ADVC-4-2.5-A-P	188179 ADVC-25-15-I-P	188240 ADVC-40-20-I-P
188055 ADVC-4-5-A-P	188180 ADVC-25-20-I-P	188241 ADVC-40-25-I-P
188066 ADVC-6-5-A-P	188181 ADVC-25-25-I-P	188264 ADVC-50-10-I-P
188067 ADVC-6-10-A-P	188219 ADVC-32-5-A-P	188265 ADVC-50-15-I-P
188078 ADVC-10-5-A-P	188220 ADVC-32-10-A-P	188266 ADVC-50-20-I-P
188079 ADVC-10-10-A-P	188221 ADVC-32-15-A-P	188267 ADVC-50-25-I-P
188094 ADVC-12-5-A-P	188222 ADVC-32-20-A-P	188288 ADVC-63-10-I-P
188095 ADVC-12-10-A-P	188223 ADVC-32-25-A-P	188289 ADVC-63-15-I-P
188123 ADVC-16-5-A-P	188247 ADVC-40-5-A-P	188290 ADVC-63-20-I-P
188124 ADVC-16-10-A-P	188248 ADVC-40-10-A-P	188291 ADVC-63-25-I-P
188125 ADVC-16-15-A-P	188249 ADVC-40-15-A-P	188312 ADVC-80-10-I-P
188126 ADVC-16-20-A-P	188250 ADVC-40-20-A-P	188313 ADVC-80-15-I-P
188127 ADVC-16-25-A-P	188251 ADVC-40-25-A-P	188314 ADVC-80-20-I-P
188155 ADVC-20-5-A-P	188272 ADVC-50-10-A-P	188315 ADVC-80-25-I-P
188156 ADVC-20-10-A-P	188273 ADVC-50-15-A-P	188336 ADVC-100-10-I-P
188157 ADVC-20-15-A-P	188274 ADVC-50-20-A-P	188337 ADVC-100-15-I-P
188158 ADVC-20-20-A-P	188275 ADVC-50-25-A-P	188338 ADVC-100-20-I-P
188159 ADVC-20-25-A-P	188296 ADVC-63-10-A-P	188339 ADVC-100-25-I-P
188187 ADVC-25-5-A-P	188297 ADVC-63-15-A-P
188188 ADVC-25-10-A-P	188298 ADVC-63-20-A-P
188189 ADVC-25-15-A-P	188299 ADVC-63-25-A-P
188190 ADVC-25-20-A-P	188320 ADVC-80-10-A-P
188191 ADVC-25-25-A-P	188321 ADVC-80-15-A-P
188090 ADVC-12-5-I-P	188322 ADVC-80-20-A-P
188091 ADVC-12-10-I-P	188323 ADVC-80-25-A-P
188113 ADVC-16-5-I-P	188344 ADVC-100-10-A-P
188114 ADVC-16-10-I-P	188345 ADVC-100-15-A-P
188115 ADVC-16-15-I-P	188346 ADVC-100-20-A-P
188116 ADVC-16-20-I-P	188347 ADVC-100-25-A-P

HOW TO ORDER:

Attribute	Details
Components	Cylinder barrel, cover, piston rod, rod seal, cushioning rings, proximity switch slots
Material	- Barrel/Cover: Anodized aluminium
	- Piston Rod: Aluminium (ADVC-4) / High-alloy steel (ADVC-6 to 100)
	- Rod Seal: Nitrile rubber (ADVC-4) / Polyurethane (ADVC-6 to 100)
Structure	Double-acting design with elastic cushioning at both ends; compact, space-saving construction
Operating Pressure	0.06–1 MPa (0.6–10 bar, 8.7–145 psi) depending on piston diameter
Temperature Range	-20°C to +80°C (ambient; consider proximity switch limits)
Standards Compliance	B14 (mounting hole pattern)
	- VDMA 24364-B1/B2-L (LABS/PWIS conformity)
	- RoHS-compliant
Color	Natural anodized aluminum finish (metallic)
Weight	3–2400 g (varies by piston diameter and stroke length; see product tables)
Dimensions	- Diameter: 4–100 mm
Dimensions	Stroke Length: 2.5–25 mm
Impact Energy	0.003–1.20 J (adjustable via elastic cushioning)
Mounting Options	Through-hole mounting; VDMA 24562 hole pattern for diameters ≥32 mm
Position Sensing	Integrated slots for contacting or contactless proximity switches
Pneumatic Connection	M3, M5, or G1/8/G1/4 threads (varies by piston size)
Operating Medium	Compressed air (ISO 8573-1:2010 [7:4:4]); optional lubrication

Datasheet:

Dimension:

Materials:

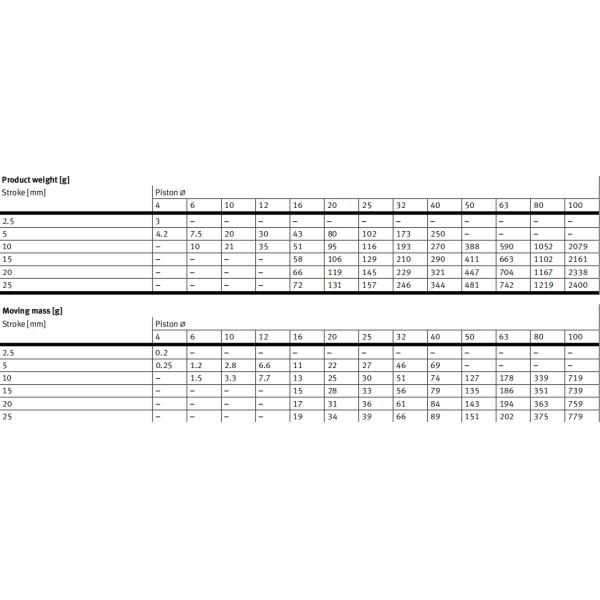

Weight:
