custom cd54 2.2uh 2r2 smd shielded power inductor 4.7 uh ferrite core 4r7 chip inductor 1 henry inductor

Categories	Power Inductor
Model Number:	4R7
Type:	SMD, Inductor Surface Mount
Place of Origin:	Guangdong, China
Brand Name:	Chipsen
D/C:	212803
Application:	Filter Applications, Filter Applications
Brand:	Chipsen
Supplier Type:	Manufacture
Cross Reference:	3R3
Tolerance:	1%
Operating Temperature:	-35~135
Rated Power:	0.1VA-1000VA
Package Type:	REEL
Resistance Tolerance:	0.1%
Temperature Coefficient:	98
Resistance:	0.1ohms ~ 100ohms
Media Available:	specs
Frequency - Self Resonant:	10khz-100khz
Features:	stable
Height - Seated (max):	20mm
Function:	power supply
Inductance:	1uH~1H, 82uH/100uH/120uH/150uH/180uH/220uH/270uH
Q @ Freq:	98
Mounting Type:	SMD
Package / Case:	REEL

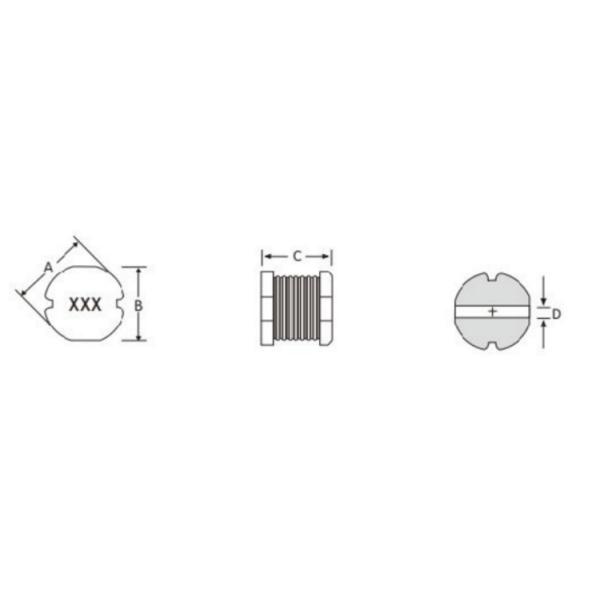

Size / Dimension:	10X10X5MM
Heigh:	5MM
Number of Coils:	Customize
Inductance - Connected In Parallel:	Customize
Inductance - Connected In Series:	Customize
Current Rating - Parallel:	Customize
Current Saturation - Parallel:	Customize
Current Saturation - Series:	Customize
DC Resistance (DCR) - Parallel:	Customize
DC Resistance (DCR) - Series:	Customize
Shielding:	Customize
Material - Core:	ferrite core
Current Rating (amps):	1mA-10A
Current - Saturation:	10A MAX
DC Resistance (DCR):	Customize
color:	Black/Gray/Orange/Green etc
Product Name:	High Current Smd Power Inductor
Certification:	ISO9001 ISO14001 RoHS REACH SGS
Shape:	Round Shape
Name:	SMD Power Shiled Inductor
Packing:	Reel+carton Box
MOQ:	2000 Pcs
MOQ:	1000 pieces
Price:	CN¥2.18/pieces 1000-4999 pieces

Contact Now

Add to Cart

Company Info.

Shenzhen Rongtaixing Technology Co., Ltd

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Products desription

Item Name	SMD power Inductor
Model No.	SD
Components	Ferrite core, Copper wire, Spacer, Base and casing
Core	NiZn/MnZn/Alloy/MPP/Amorphous magnetic
Wire	Enameled copper wire-UEW/PEW
Functions	Power line filter/Signal line filter/Energy saving/Voltage step-up etc/Choke etc
Mounting type	SMD ;THD
Shape Types	Vertical, Horizontal or SMD
Coil Structure	Toroidal or Square
Working Frequency Range	Above 1KHZ
Inductance Range	1uH-1H
DCR Range	Depend on customers' request
Storage Temperature	-20℃ to +85℃
Working Temperature	-20℃ to +105℃
Storage Humidity	30% to 95%
Test Items	Ø Turns Ø Inductance Ø DC resistance testx Ø Current test Ø Hi-POT
Certifications	ISO9001:2008, ISO14001:2008, UL, CQC
MOQ	1000 pcs
OEM	Acceptable
Sample	Free ,but the shipping should be paid by your side
Sample Time	3-5 working days
Package	EPE foam + export carton, or plastic tray+export carton
Delivery time	about 15 working days against deposit
Feature	5Years warranty High current High power High efficiency Low temperature rise Stable performance
Applications	1. Digital Products:Digital camera ETC 2.Household Appliance:washing machine,air condition,coffee makerETC 3. Security products:Camera,Voice recording equipment,infrared devicesETC 4.Power:Switching power supply, UPS ETC 5.Lighting industrial: LED drivers 6.Auto electronics: Navigator,Data recorder, Car charger ETC 7.Toys:electric toys, remote controller ETC 8.Motors
