FD330-30 CI Contitech Lift Axle Air Springs W01-M58-6384 Double Convoluted Rubber Bellow

Categories Industrial Air Spring
Brand Name: GUOMAT
Model Number: 2B12-331 P06
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5pcs
Price: USD59.9-69.9/PC
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Delivery Time: 3-7 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Item: Industrial Air Spring
Type: Gas-Filled
Material: Rubber + Steel
Warranty: 1 Year
OEM: Contitech FD330-30
Air Fitting: G1/4
Weight: 5.1KG
Firestone: W01-M58-6384
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

FD330-30 CI Contitech Lift Axle Air Springs W01-M58-6384 Double Convoluted Rubber Bellow

FD330-30 CI Contitech Lift Axle Air Springs W01-M58-6384 Double Convoluted Rubber Bellow


Specifications and Technical Data of 2B12-331 P06

The diameter of the top and bottom cover is: 226.5mm
Specification of the air hole: G1/4
Threaded hole of the top cover: 2XM8X1.25
Center distance between the threaded holes of the top cover: 157.6mm
Distance from the threaded hole of the top cover to the air hole: 73mm
Threaded hole of the bottom cover: 2XM8X1.25
Center distance between the threaded holes of the bottom cover: 157.6mm
Design height: 272mm
Minimum height: 95mm
Maximum height: 272mm
Maximum outer diameter: 325mm


2B12-331 P06 Cross Reference Numbers

Contitech FD330-30

Contitech FD 330-30

Contitech FD330-30 CI

Contitech FD 330-30 CI

Contitech FD330-30 CI 1/4

Contitech FD 330-30 CI 1/4

Contitech FD330-30 CI 1/4 M8

Contitech FD 330-30 CI 1/4 M8

Firestone W01-M58-6384

Firestone W01 M58 6384

Firestone W01M586384

Firestone WO1-M58-6384

Firestone WO1 M58 6384

Firestone WO1M586384

Firestone Style 22-1.5

Firestone W01-358-7444

Firestone W01 358 7444

Firestone W013587444

Vibracoustic VSP2B22R-3 (G1)

Vibracoustic V SP 2 B 22 R-3 (G1)


Troubleshooting Guide

Malfunction

Possible cause

Remedy

Air actuator / air spring
does not move

No drive medium available

Check the connections / valves

Cracks or wear except for
the reinforcing material

Mechanical or age-related wear

Replace the air actuator /
air spring

Extended air actuator / air spring
does not retract completely

Reset force too low

Increase the reset force


ContiTech Double Convoluted Air Spring Data Sheet

ModelMinimum Design HeightMaximum StrokeRequired Installation Space
FD 40-10 CI70100160
FD 70-13 CI72128180
FD 110-15 CI72156215
FD 120-17 CI75155230
FD 120-20 CI77193235
FD 200-19 CI75200265
FD 200-22 CI77218265
FD 200-25 CI77248275
FD 330-22 CI75230340
FD 330-30 CI77283355
FD 530-22 CI77233400
FD 530-30 CI77273415
FD 530-35 CI77313420

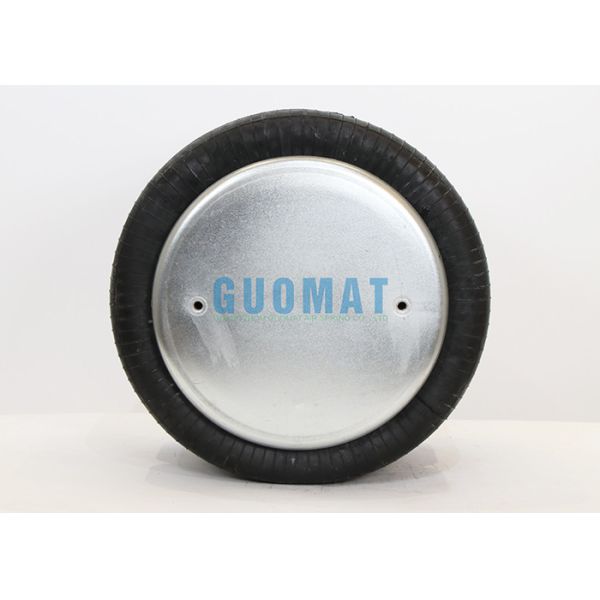

Details pictures of air spring 2B12-331 P06
