FS 330-14 Contitech Crimped Convoluted Air Springs G1 Air Fitting Pneumatic Bellows Actuators

Categories Industrial Air Spring
Brand Name: GUOMAT
Model Number: 1B33014
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5pcs
Price: USD49.9-59.9/PC
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Delivery Time: 3-7 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Pressure Ability: 0.2-0.8 M PA
Material: Rubber and Steel
OEM: Yes
Warranty: 1 Year
Replacement: Contitech FS 330-14 CI
Gas Hole: G1
Style: Convoluted type Air Spring
Condition: Brand New
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

FS 330-14 Contitech Crimped Convoluted Air Springs G1 Air Fitting Pneumatic Bellows Actuators

FS 330-14 Contitech Crimped Convoluted Air Springs G1 Air Fitting Pneumatic Bellows Actuators

Product Description


Brand: GUOMAT

Manufacturer Part Number: 1B33014

Manufacturer Warranty: 12 Months

Material: Rubber+Steel

Color: Balck

Place of Origin: Guangzhou,China

Certification: ISO/TS16949:2009

Packing: Neutral Packing

Quality: High-Quality

Refer to Contitech: FS 330-14 ; FS330-14 ; FS 330-14 CI ; FS330-14 CI


Technical Data

Cover
Top cover diameter: 231mm
Bottom cover diameter: 231mm


Air hole/Gas hole
Air hole: G1


Threaded hole/screw thread
Center distance between threaded holes in top cover: 157.5mm
Distance from air hole to threaded hole in top cover: 66mm
Center distance between threaded holes in bottom cover: 157.5mm


Rubber bellow

The rubber bellow max outer diameter: 325mm

Max height: 166mm

Min.height: 55mm


Vibration isolation – dynamic characteristic values

Design height H: recommended 140mm, minimum 120mm

Pressure pbar345678VoI.V(I)
Force (Load)kN11.615.519.523.427.431.87.4
Spring rateN/mm261332.2409.4486.5486.5567.8
Natural frequencyHz2.42.32.32.32.32.2

Pneumatic application – static characteristic values
Force F [kN]

Pressure Pbar345678Vol.V(I)
Height H (mm)1511013.316.820.32427.67.8
13012.61721.42630.234.87
11014.819.8253035.240.26.1
9016.221.827.43338.644.25
7017.22328.834.940.646.63.9

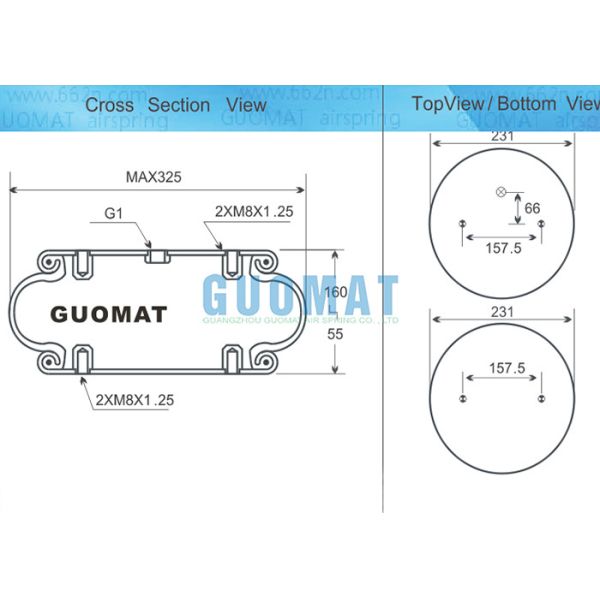

The Drawing: GUOMAT 1B33014
