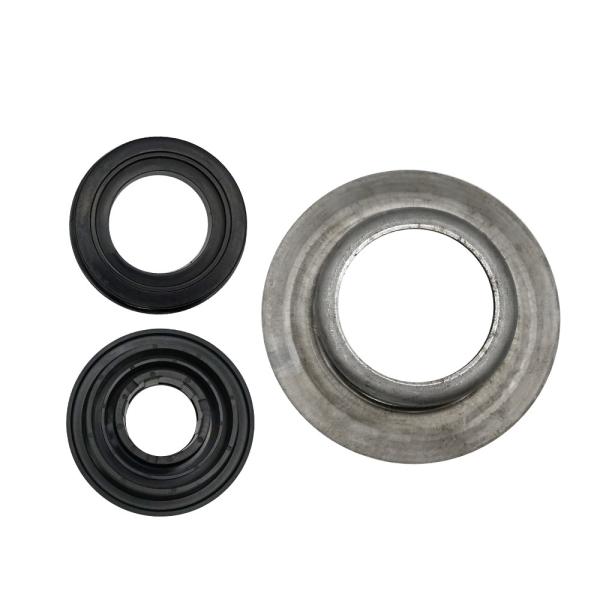

Robust Construction 89mm Conveyor Roller Steel Punched Bearing Housing

TKII6204-89 Conveyor Roller Steel Punched Bearing Housing

1) High-Quality Material: Our product is made from premium SPHC and SPCCmaterials, ensuring durability and reliability in various industrial applications.

2) Robust Construction: The punched bearing housing is designed to withstand heavy loads and harsh environments, ensuring minimal maintenance and extended lifespan.

3) Convenient Packaging: Our product is carefully packaged in wooden cases to prevent damage during transportation, ensuring safe and secure delivery to customers worldwide.

Specification:

1). Bearing size: 6204, 6205, 6305, 6206, 6306, 6307, 6308

2). Bearing Housing type: pressed housing, cast iron bearing housing, polymer housing

3). Seal: Multiple labyrinth seal, Waterproof,dust proof,corrosion resistance

4). Production capacity: 2000pcs/day.

Main Feature of conveyor idler roller bearing housing and labyrinth seal bearing:
1) Solid design, suitable for heavy lifting.
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing's end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components / materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending on usage.
10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments

2. Product features

idle conveyor belt Roller type: TK, TKII, DTII,TKIII,TURNUP

idle roller Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308,6309, 6310.etc.

idle conveyor Roller Diameter:63,76,89,103,108,114,127,133,159,165,176,194, 219,etc.

3. Material

Full Set of the TK Series Bearing housing and seals Including:

Materials :

♦ Bearing Housing: SPHC

♦ Sealing Ring: Nylon PA6

♦ Labyrinth Seal: POM

♦ Outer Cap: SPCC

♦ Dust Cover: Nylon PA6

China-Techpart Precision Technology Co., Ltd (short as China-Techpart) is professional international export

company which specialized in producing conveyor belt roller punching press bearing housing and relative

sealing. China-Techpart business have extended all over the world such as Mexico, Russia, Chile, Brazil, UK,

USA etc, which have established good relationship with famous customers in main countries and region of the

world. Our global market share is growing bigger and bigger. China-Techpart already received highest recognition

more than 50 countries and over 200 customers with highest quality and professional service which is the cornerstone

of rapid expansion in the international market

China-Techpart wholly owned holding company which have 4 advanced technology punching press production

lines, high precision injection production center, as well as modern mould machining center. Now China-Techpart

is China's largest and most complete varieties professional punching press bearing housing and sealing parts

manufacturing. China-Techpart's production ability over 5 million sets of bearing housing annually, All export

products will be checked by equipments imported from Italy, the tolerance is accurate to 0.001mm, which ensure

the products diamonds quality. China-Techpart can supply belt conveyor roller bearing housing and sealing type such

as TK, TKII, and DTII etc. China-Techpart also can produce in according with your exact requests.

China-Techpart's bearing housings is not only the indispensable parts of common conveyor roller manufacture, but

also the preferred products chosen by roller manufacture with high-speed, long-distance and large capacity transportation,

which can be widely used in the national major projects as mine, steel, cement, coal, electric power and seaport industry.

The advantages of China-Techpart roller bearing housing and relative sealing are following:

Ø Excellent material. The material are used cold rolled sheet from Bao steel Co., Ltd, Wuhan Iron & Steel Corp

Ø Fatigue resistance, no deformation and no distortion

Ø Good Polish effect, no stretching scars and burrs

Ø High precision, low eccentricity
