SINOLIFT CPD20SA 3-Wheel Electric Forklift Truck

Categories Mate series lifter truck
Brand Name: SINOLIFT
Model Number: CPD20SA
Certification: CE
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000 sets/mouth
Delivery Time: 15 days
Packaging Details: Sandard Export Package
Product name: SINOLIFT CPD30M CPD35M ELECTRIC FORKLIFT
Driving style: Pedestrian
Load capacity Q: 2000kg
Warranty: 1 year
After service: on-line service,free spart parts
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SINOLIFT CPD20SA 3-Wheel Electric Forklift Truck

SINOLIFT CPD20SA 3-Wheel Electric Forklift Truck

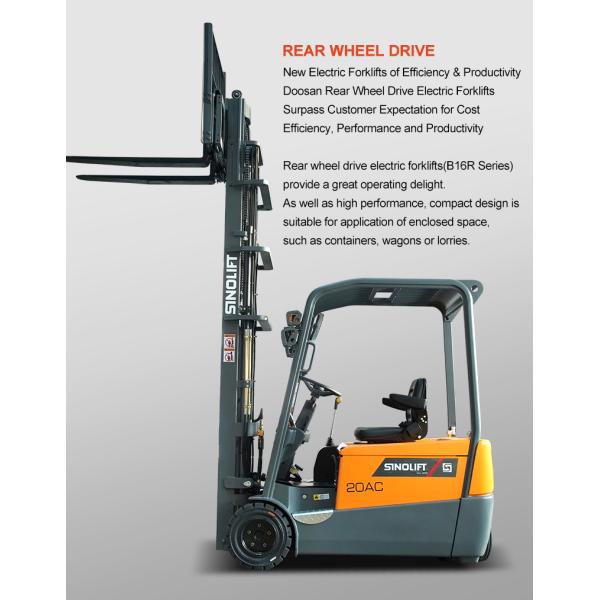

The SINOLIFT 3-wheel electric forklift truck achieves some of the best lift capacities in its class, ranging from 1.6 tonnes to 2 tonnes, and boasts a maximum lift height of up to 6.5 metres. Powered by brushless AC motors that ensure smooth driving and increased reliability, maintenance costs are significantly reduced even when driving on bumpy terrain. The steering motor functionality is integrated into the hydraulic motor, simplifying the system and increasing reliability. Additionally, features like the integrated side shifter and a tilting mast greatly improve load handling whilst ensuring safe usage in the work environment.

ModelCPD20SA-16CPD20SA-18CPD20SA-20
DriveDual Front Drive WheelDual Front Drive WheelDual Front Drive Wheel
Operation typeseatedseatedseated
Capacity/rated loadQ(kg)160018002000
Load centre distancec(mm)500500500
Lift heighth3(mm)3000-62003000-62003000-6200
Load distance, centre of drive axle to forkx(mm)358358358
WheelbaseY(mm)136213621465
Service weight(with battery)kg322032803450
Axle loading, laden front/rearkg3955/8654166/9144469/981
Axle loading, unladen front/rearkg1425/17951455/18261625/1997
Height, mast loweredh1(mm)2000-26602000-26602000-2660
Free lifth2(mm)OptionOptionOption
Height ,mast extendedh4(mm)4050-72504050-72504050-7250
Overall lengthl1(mm)288030003100
Overall widthb1(mm)107011301130
Fork dimensionss/e/l(mm)35*100*95040*100*107040*120*1070
Aisle width for pallets 1000*1200 crosswaysAst(mm)312031203200
Aisle width for pallets 800*1200 lengthwaysAst(mm)322032203300
Turning radiusWa(mm)155215521652
Travel speed, laden/unladenKm/h14/1414/1413/13

CPD20SA-_01.jpgCPD20SA-_02.jpgCPD20SA-_03.jpgCPD20SA-_04.jpgCPD20SA-_05.jpgCPD20SA-_06.jpgCPD20SA-_07.jpgCPD20SA-_08.jpgCPD20SA-_09.jpgCPD20SA-_10.jpg
