Amusement park office app ticket checking attraction brushless motor fully automatic glass sliding gate CXT-PY505

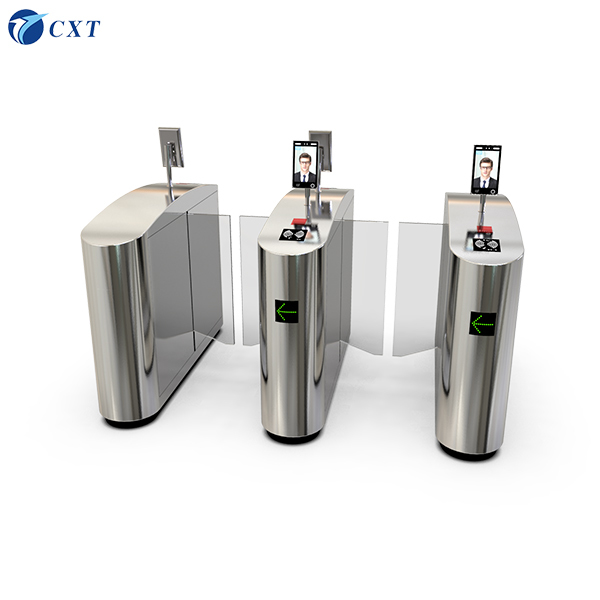

Sliding gate CXT-PY505

Arc inclined half-height sliding gate
Sliding gate: Sliding gate, also called sliding door, full-height wing gate, etc., is developed from the wing gate. It draws on the characteristics of automatic doors. The blocking body (gate wing) has a large area and a large blocking height. It is perpendicular to the ground and achieves blocking and release through telescoping. The material of the gate wing is usually plexiglass and tempered glass. The movement control method is only fully automatic, and the pedestrian detection module has a strong function.

Intelligent sliding gate (full-height wing gate) is a high-tech product mainly for intelligent management of personnel channels. Compared with ordinary wing gates, it has the effect of anti-climbing and anti-drilling, and is of higher grade. This product adopts an industrial-grade circuit control system and a humanized and scientific mechanical transmission design. This product has stable performance, complete functions, humanized design, and high grade. It is mainly used in high-end and crowded places such as subways, docks, clubs, smart buildings, villa communities, hotel lobbies, etc.

The device is compatible with various access control identification system devices, such as induction card access control, biometric access control, electrostatic testing, etc., which can realize intelligent channel control and management through simple docking with the sliding gate.

Functions and features of sliding gate machine

1) It has fault self-detection and logic judgment functions, which is convenient for users to maintain and debug functions;

2) Flexible dial code setting of various performances of the equipment, up to dozens of types;

3) Intelligent anti-pinch function, when there is a person or obstacle at the reset position of the barrier arm, it will automatically stop or rebound and send out an alarm signal;
4) Multiple mode alarm function, including illegal intrusion, anti-intrusion, tailgating, and passage timeout alarms;
5) Anti-collision function, when no gate opening signal is received, the barrier arm will automatically lock;
6) Reverse intrusion closing alarm function, when someone enters from the reverse direction after swiping the card forward, the barrier wing will quickly close and send out an alarm;
7) Flexible passage indication function, high-brightness indicator light plus its humanized prompt function, making the channel more distinctive;
8) Normally open and normally closed modes are adjustable, and can be easily controlled by dialing or external manual buttons;
9) Automatic detection and reset function, after opening the gate, if no object is detected within the specified time (adjustable), the system will automatically cancel the passage authority;
10) Automatic normally open when power is off to meet fire protection requirements;
11) It can be connected with a variety of control devices and receive relay switch signals to work;
12) Various traffic modes, can control personnel entry and exit in one direction or two directions, or be controlled in one direction and freely pass in the opposite direction;
13) Strong ability to adapt to the environment, can work normally in various harsh environments, super strong self-protection ability, can adapt to weak current short circuit, strong light exposure, fog, rain, snow, typhoon weather and environmental changes.
3. Main structure and configuration (single channel)
2 standard stainless steel chassis, 2 plexiglass arms, 2 industrial-grade main control boards, 2 transformers, 2 motors, 2 sets of movement and transmission parts, 4-6 pairs of infrared beams, 4 high-brightness warning lights

Standard technical parameters of sliding gate
◇Chassis material: National standard (No. 304) stainless steel, thickness 1.2-1.5mm
◇Chassis size (standard): 1400 length * 300 width * 1000 height (MM)
◇Processing technology: produced by bending, cutting, welding, polishing, grinding and other processes
◇Clear channel width: 500-550mm
◇Door wing height: ≤1800mm
◇Door wing material: high-quality acrylic (thickness 12-18mm) or tempered glass (thickness ≤12mm)
◇Weight: about 70Kg
◇Entry and exit direction: one-way or two-way
◇Working voltage: AC220 ±10 V/50 HZ
◇Drive motor: DC motor (24V)
◇Input interface: Dry contact signal
◇Passing speed: about 30 people/minute
◇Gate opening and closing time: 0.5-2 seconds adjustable
◇Time required to enter the passing state after power-on: 3 seconds
◇Working environment: indoors, outdoors (it is recommended to build a shed)
◇Temperature: (industrial standard) -40℃——80℃
◇Relative humidity: ≤95%, no condensation

The sliding gate has expandable functions:

1) Bidirectional automatic counting function, which can "add" in the forward direction and "subtract" in the reverse direction, and automatically count the number of people present (customized).

2) Voice prompt function: "Welcome! Bon voyage! Please swipe your card!" etc. (customized);

3) Telescopic arm material and primary color selection.

A turnstile is an electronic gate used to control access to a specific area. It usually consists of a vertical column and a rotating arm or turnstile that allows only one person to pass through at a time. Turnstiles are usually made of metal and are available in different finishes such as stainless steel or powder coating.

Turnstiles can be entered with a valid ticket, access card, or authentication methods such as facial recognition or fingerprint scanning. Once the user presents their ID, the gate will unlock and allow them to pass. Some models also have a tailgating detection function, and the gate will remain locked until the previous user has fully passed. Turnstiles can be installed as standalone units or integrated with a larger access control system for a specific venue.
