AGREE Test Chambers with Vibration Table for Combined Environmental Testing

AGREE Test Chambers with Vibration Table for Combined Environmental Testing

AGREE Test Chambers with Vibration Table for Combined Environmental Testing
AGREE Test Chambers with Vibration Table for Combined Environmental Testing
Categories Vibration Test Chamber
Brand Name: PRECISION
Model Number: VTHC-225
Certification: ISO
Place of Origin: CHINA
MOQ: 1
Price: $6000
Payment Terms: T/T
Supply Ability: 100/month
Delivery Time: 15 working days
Packaging Details: Standard export packaging
Customized support: OEM ODM
Origin: China
Material: Stainless Steel
Controller: Programmable LCD Touch Screen
Temp accuracy:: 0.5°C
Temp uniformity: 0.5°C
Refrigerant: Environmental friendly
Vibration force: 2000kg.f(20kN)
Temp. range: -60°C to +180°C
Humdity range: 10% to 98%
Contact Now
Company Info.
Dongguan Precision Test Equipment Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

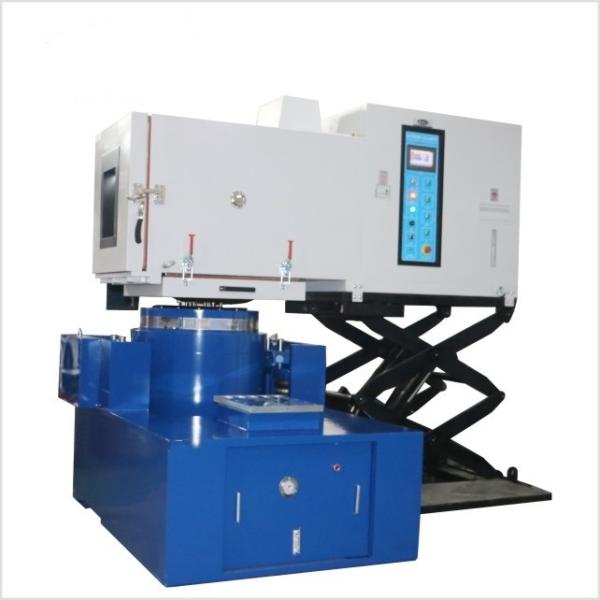

AGREE Test Chambers with Vibration Table for Combined Environmental Testing

AGREE Test Chambers with Vibration Table for Combined Environmental Testing

Product Description:

Our AGREE Test Chambers, equipped with integrated vibration tables, are designed to provide comprehensive environmental and vibration testing capabilities. These chambers meet the rigorous standards of the Advisory Group on Reliability of Electronic Equipment (AGREE), ensuring the reliability and durability of your products under complex combined environmental stresses.

Key Features:

  • AGREE Standard Compliance:
    • Meets or exceeds AGREE standards for combined temperature, humidity, and vibration testing.
    • Ensures accurate simulation of real-world environmental conditions.
  • Integrated Vibration Table:
    • High-performance vibration shakers to simulate various vibration profiles.
    • Adjustable frequency, amplitude, and duration to match specific testing requirements.
  • Precise Temperature and Humidity Control:
    • Advanced control systems for stable and accurate environmental conditions.
    • Wide temperature and humidity ranges to simulate diverse operating environments.
  • Customizable Chamber Sizes:
    • Tailored to accommodate various product sizes and configurations.
    • Ensures efficient testing of diverse product types.
  • Data Acquisition and Analysis:
    • Comprehensive data logging and analysis software for detailed test results.
    • Real-time monitoring of test parameters for immediate feedback.
  • User-Friendly Interface:
    • Intuitive software and control panels for easy operation and test setup.
    • Programmable test sequences for automated testing.
  • Safety Features:
    • Built-in safety mechanisms to protect test specimens and operators.
    • Emergency stop functions for immediate shutdown.
  • Compliance with Industry Standards:
    • Meets or exceeds relevant industry standards, including IEC, ASTM, and MIL-STD.

3. Specific Parameters

  • Shaker Specifications


    Rated Sine/ Random/ Shock Force1,100 kgf/1,100 kgf/2.200 kgfArmature Mass11kg
    Frequency Range5-3.000 HzInserts Size (Standard)M8
    Max./Continuous Displacement p-p51 mm/ 51 mmLoad Attachment Points (Standard)17
    Max. Velocity2.0 m/sNatural Frequency-Thrust Axis<3Hz
    Max.Sine/ Random Acceleration100/60gMac Vertical Load Support300 kg
    Armature Diameter235 mmStray field @ 152 mm above table≤1mT (10 gauss)
    Fundamental Resonance frequency2,500 Hz (nom.) ± 5%Dimension LxWxH940 mmx715 mmx780 mm
    Allowable Armature Overturning Moment300 NmWeight (Uncrated)1.000 kg

    PA10K Power Amplifier SpecificationsBlower Specifications
    Rated Output Capacity10kVABl ewer Power4kW
    Signal to Noise Ratio≥65 dBAir Flow0.38 m3/s
    Amplifier Efficiency≥90%Air Pressure0 048kgf/cm2
    System ProtectionMultipleAir Duct Diameter/ Length120/4000mm
    Dimension (Uncrated) LxWxH610mmx900mmx 1,550mmDimension (Uncrated) LxWxH610mmx750mmx 1,450mm
    Weight (Uncrated)400 kgWeight (Uncrated)120Kg

    ChamberDimensions (mm)
    Capacity512L
    Inner Chamber Dimensions800×800×800mm (W width × D depth × H height mm)
    Temperature Range-40℃～+150℃
    Cooling Rate

    +20℃～-40℃ Average throughout the range: 2℃/min


    Humidity Range20%RH～98%RH
    Overall Dimensions

    1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions


    Weight1500kg

Applications:

  • Reliability testing of electronic components and assemblies.
  • Durability testing of electronic equipment.
  • Environmental stress screening (ESS) of electronic products.
  • Quality assurance for electronic devices.
  • Research and development for new electronic technologies.
  • aerospace and automotive components testing.

Benefits:

  • Ensures compliance with AGREE standards for electronic equipment reliability.
  • Improved product reliability and durability.
  • Reduced warranty costs and product failures.
  • Enhanced product quality and customer satisfaction.
  • Accelerated product development cycles.
  • Combined environmental and vibration testing.

Why Choose Us:

We are a leading provider of advanced environmental testing solutions, specializing in AGREE chambers with integrated vibration tables for combined environmental testing. Our expertise and commitment to quality ensure reliable and accurate results.


Contact Us:

Contact us today to discuss your environmental testing needs and request a personalized quote.
