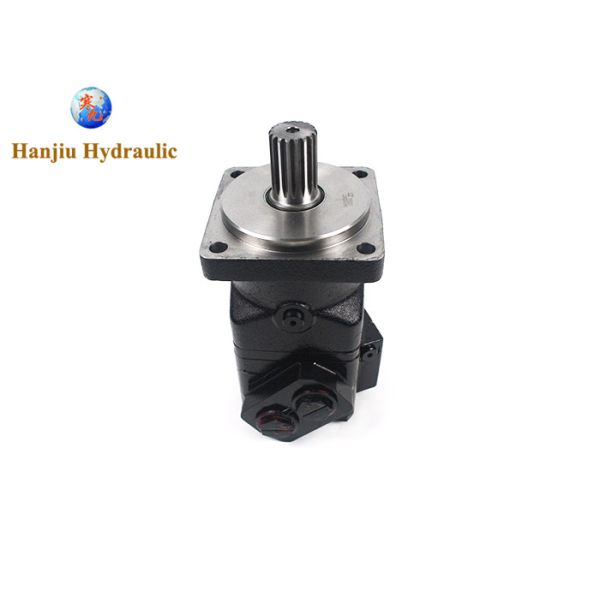

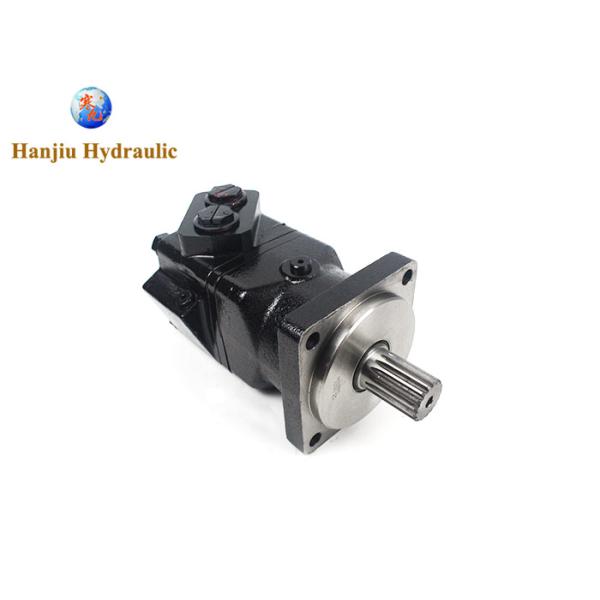

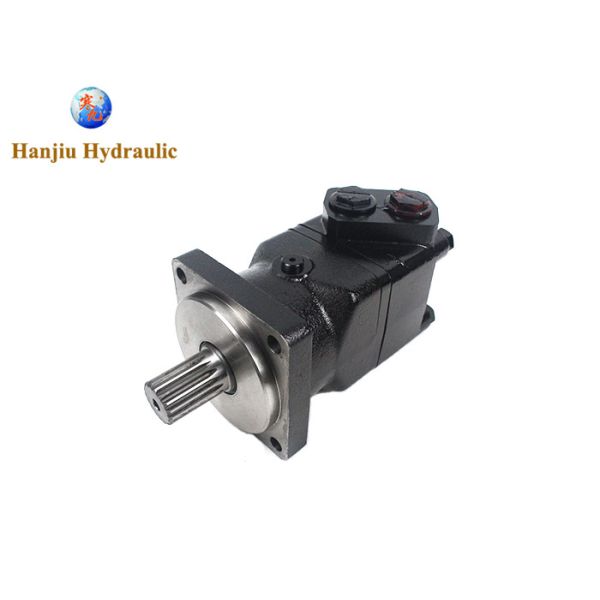

Orbit Hydraulic Motor OMT200 BMT200 4 Bolts Flange 17 Teeth Spline Shaft With SAE Ports

Orbit Hydraulic Motor OMT200 BMT200 4 bolts flange,17teeth spline shaft with SAE ports

Details

• Output volume (cc/rev): 200cc
• Shaft: Splined 17-DP12/24
• max r.p.m.: 750
• Torque max. (Nm): 590/710
• Power max. (kW): 40
• Pressure difference (bar): 180
• Inlet pressure (bar): 200
• Volume flow max. (l/min): 125
• Engine version: with non-return valves
• Connection: 1-5/16-12UN (18
• Leakage oil connection: 7/16-20UNF (12)

Main Specifications:

As an experienced and reputable supplier in the field of hydraulics, Hanjiu offers and sells the best orbital motors, which have been inspected many times before leaving the factory and the quality is guaranteed. Meanwhile, the orbital motors we produce have the following features.

1. High pressure tolerance and high starting torque

High-quality orbital motors need to have high-pressure operation capability, which can ensure the stable operation of orbital motors under heavy load or frequent starting and stopping scenarios. This design is especially suitable for severe conditions such as construction machinery and mining equipment.

2. Compact and high-performance design

Compact size: Integrated design (e.g. short shaft motor, lightweight housing) for easy installation in space-constrained equipment.

3. Strong environmental adaptability

Seal protection: Dual shaft seals and dust ring design prevents contaminants from intruding and prolongs service life.

Corrosion-resistant materials: the housing is made of high-strength aluminum alloy or special coating, which is adaptable to harsh environments such as high temperature, dusty and humid.

Meanwhile, our orbital motors are well adapted to various hydraulic fluids.

4. Long life and low maintenance requirements

Long life: Our products have a long life even under extreme conditions and can operate smoothly in harsh environments.

Wear-resistant design: reinforced bearings are used to reduce mechanical wear.

Low leakage technology: Optimized oil circuit design reduces the risk of oil leakage and reduces maintenance frequency.

When purchasing orbital motors, the following points need extra attention:

(1) Define the application requirements and load parameters

Load Characteristics: Calculate the load size, moment of inertia, maximum torque and speed to ensure that the motor matches the needs of the equipment (e.g., mining machinery needs high torque, rail transportation needs stable speed regulation).

Working environment: Evaluate the temperature, humidity, vibration and other factors, and select the level of protection and corrosion-resistant materials.

(2) Focus on technical parameters and performance certification

Key parameters: including rated pressure, displacement range, speed range, etc., need to match with the technical specifications of the equipment.

Quality certification: check whether the product has passed ISO certification, and has a production license and test report.

(3) Brand reputation and after-sales service

Choose a supplier that offers a long warranty (e.g., more than 2 years) and quick response to ensure worry-free after-sales service.

HANJIU manufactures and sells various types of orbital motors, if you want to know more information, welcome to visit our official website to browse related information and feel free to contact me !
