| Categories | Inline Fuse Holders |
|---|---|
| Brand Name: | Tianrui |

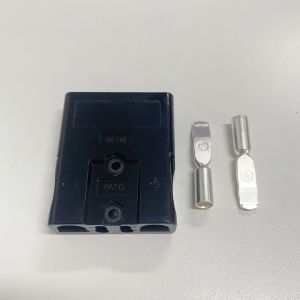

| Model Number: | SBS75X |
| Certification: | ROHS |
| Place of Origin: | China |
| MOQ: | 500pcs |
| Price: | Negotiable |
| Payment Terms: | 100% TT,Paypal |
| Supply Ability: | 5000pcs every day |
| Delivery Time: | 10-14 days |
| Packaging Details: | Carton |
| Current Rating: | 110A |
| Voltage Rating: | 600V |
| Color: | Black,grey,brown |
| Material: | plasitc,brass |
| Flammability: | 94V0 |
| Contact Barrel Wire Size: | Pin(Power Pin):6-12AWG |
| Contact Barrel Wire Size (AWG): | Pin(Signal Pin):24-14AWG |
| Company Info. |
| Dongguan Reomax Electronics Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Description
The patented SBS connector family is designed to provide high power in a compact ergonomic housing with protection against accidental contact with live circuits.
This is of particular importance in applications where DC voltages exceed 30 volts and can be health threatening. Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps.
The SBS75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps.
The SBS75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
• Touch Safe Interface - Can safely be used in through panel applications - Minimizes potential contact with live circuits per IEC 60950
• Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
• Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
