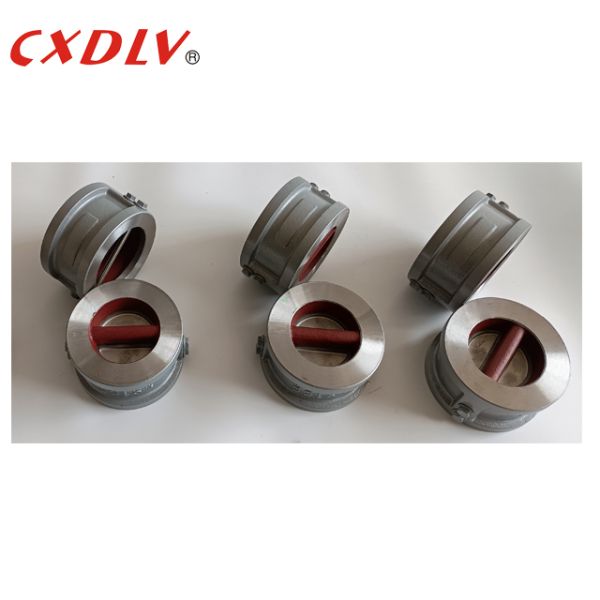

Wafer Type Check Valve Dual Plates Swing Inner Stem Zero Leakage

Wafer Type Check Valve Dual Plates Swing Inner Stem Zero Leakage

Dimensional drawing

Specifications

Design According to AP1594
Face to face according to DIN3202.
Pressure & Temperature Rating according to DIN2526
Test & inspection According to EN12266

Application

The wafer type check valve is a universal one-way fluid valve. The utility model has the advantages of light weight, small volume and easy to be installed between the flanges. The inside of the valve is composed of two semicircular springs and a plate surface, and is fixed on the valve body by a pin, and the spring is deformed to close the valve plate, and the fluid pressure causes the spring to open. The deformation is fast, which protects the pipe from water hammer damage.

Feature

Package&Delivery

Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details: according to the order, 7~35days

FAQ

Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: According to the order,7~60days.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Xidelong Brief Introduction

Xidelong is a professional manufacturer in valve automation, integrating with research and development, manufacturing, sales and after-sales services of valve and accessories over 12 years.

The factory of Xidelong valve is located in Longwan (Zhejiang, China), covering an area of 25,000 square meters, of which square meter is for office work whereas 24,000 square meters is for production (including the assembly area, testing area and warehouse area). Moreover, the factory is only 9 miles to Wenzhou Airport, greatly facilitating for the visitor of our international customers and partners.

Boasting of excellent technical strength, design and experience in Gate, Ball, Butterfly and Bellow valves manufacturing, the company has a quality management system as required by ISO9001-2008.

Xidelong Valve have been working to find reliable sales agents or distributors.

Xidelong Manufactory

Established in 2007, Xidelong Valve is a preferred supplier of industrial valves for major Chinese manufacturers.The factory of Xidelong valve is located in longwan (Zhejiang, China).

Xidelong Business

Valve: Ball Valve, Butterfly Valve, Gate Valve, Globe Valve,  Check Valve, Sight Glass

Material:  ● Steinless Steel: CF8, CF8M, CF3, CF3M, Duplex Stainless Steel

Material:  ● Casting Steel: WCB, WC6, WC9, A105, LCB

Accessories: Pneumatic Actuators, Electric Actuators, Worm Gear, Manual Override, Limit Switch, Solenoid Valve

Standard: JB/GB, ANSI/API, JIS, DIN

Xidelong Production

We are equipped with CNC lathes, automatic machining centers, automatic MIG seal welding and automatic hard facing facility to reduce human error. Today equipment and technology along with a qualified training to our employees produce valves as required by international market.

Xidelong Testing

All our production is tested in accordance to the standard required.

We analyze the raw material at first. Any piece is verified in order to respect the required tolerance. Each valve must exceed the pressure test before it has been judged ready for delivery.
