Premium Curved Disc Springs: High-Performance Elastic Solutions
In modern precision engineering and mechanical assembly, managing
micro-vibrations, compensating for axial end play, and maintaining
stable, continuous tension within highly restricted spaces are
critical to system reliability. Standard helical springs often fail
to deliver the ideal balance of a compact solid height and a linear
force deflection profile under light to medium loads.
As a premier innovator in specialized elastic components, Jiangsu Sunzo Spring Elasticity Technology Co., Ltd. (SUNZO) engineers advanced curved disc springs — also widely recognized across global industrial procurement
channels as curved spring washers or crescent washers. By
integrating state-of-the-art material sciences with precise
geometric profiles, SUNZO delivers premium elastic solutions
tailored to the rigorous demands of global OEMs, Tier-1 industrial
suppliers, and heavy equipment manufacturers.
Engineered Product Advantages & Technical Selling Points
Jiangsu Sunzo's curved disc springs are geometrically characterized by a uniform, cylindrically curved
cross-section. This unique design allows them to bridge the
operational gap where standard Belleville washers or heavy-duty
wave springs are overly rigid or lack sufficient deflection
capabilities.
- Precise Linear Force Profiles: Unlike conventional conical washers, our curved disc springs
exhibit a remarkably uniform and nearly linear spring rate
throughout their functional range, particularly between 10% and 80%
of their total available deflection. This predictable behavior
ensures consistent pressure distribution without sudden load
spikes.
- Exceptional Cycle Life and Fatigue Resistance: By optimizing internal microstructural stresses during specialized
heat-treatment phases, Sunzo's components mitigate the risk of
premature material fatigue. The dual-point contact profile expands
smoothly under operational loads, minimizing friction and wear.
- Anti-Relaxation & Set-Removed Engineering: Every curved disc spring undergoes a rigorous pre-setting process
to ensure it will not significantly relax or lose its free height
over decades of deployment, securing long-term tension maintenance
in critical joints.
- Compact Installation Envelope: With an ultra-low solid height profile, these springs deliver
optimal axial force while utilizing only a fraction of the physical
space required by traditional compression springs.
Comprehensive Material Matrix
Operating across varied environmental conditions requires specific
metallurgical formulations. Jiangsu Sunzo offers a diverse
portfolio of premium materials to ensure optimal performance in
temperature tolerance, corrosion resistance, and high-tensile
endurance.
- High-Carbon Spring Steels (e.g., SAE-C1074 / 65Mn): Industry standard for general-purpose mechanical assemblies
requiring optimal elasticity and high yield strength.
- Chrome-Vanadium Alloy Steels (e.g., 51CrV4 / SAE 6150): Engineered for high-stress dynamic environments, providing
outstanding toughness and superior fatigue strength.
- Austenitic & Martensitic Stainless Steels (e.g., SUS301, SUS302,
SUS304, SUS316): Selected for mid-to-high corrosion resistance requirements, with
SUS316 particularly favored in chemical processing environments.
- Precipitation-Hardening Stainless Steel (17-7PH / UNS S17700): Offers an elite combination of ultra-high strength, fatigue
resistance, and excellent corrosion resistance at elevated
temperatures up to 315°C (600°F).
- Superalloys (Inconel 718, Inconel X-750, Nimonic 90): Reserved for extreme, ultra-high-temperature environments (up to
700°C) and highly corrosive chemical mediums.
Standard and Custom Dimensional Specifications
To facilitate seamless integration into existing CAD designs and
assembly lines, Jiangsu Sunzo maintains rigorous dimensional
tolerances adhering to international manufacturing benchmarks.

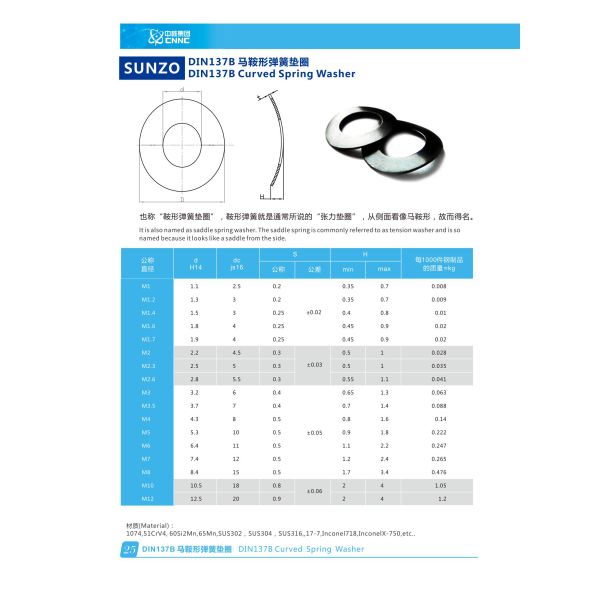

| Parameter Specification | Standard Range Capability | Tolerance Criteria |
|---|
| Outside Diameter (OD) | 3.00 mm – 150.00 mm | ± 0.05 mm to ± 0.25 mm |
| Inside Diameter (ID) | 1.50 mm – 120.00 mm | ± 0.03 mm to ± 0.20 mm |
| Material Thickness (t) | 0.10 mm – 6.00 mm | Commercial Standard / Precision |
| Free Height (H0) | 0.50 mm – 25.00 mm | ± 0.10 mm to ± 0.40 mm |
| Load Capacity Range | From fractions of a Newton to over 5,000 N | Within ± 10% of theoretical calculated values |
Note: For specialized geometric configurations, our engineering
center provides full blueprinting, non-linear Finite Element
Analysis (FEA), and rapid physical prototyping with no rigid
Minimum Order Quantity (MOQ) constraints.
Primary Industrial Application Scenarios
Thanks to their continuous tensioning properties and
light-to-medium force characteristics, Sunzo's curved disc springs are deployed across a vast spectrum of high-end commercial
industries:
- Industrial Valve & Fluid Automation: Installed within packing glands and actuator assemblies to
automatically compensate for thermal expansion and contraction
cycles, avoiding fluid leakage.
- High-Speed Machine Tools & Manufacturing Equipment: Integrated into precision spindle assemblies, bearing pre-loads,
and rapid-change die modules to absorb micro-vibrations and
minimize axial end play.
- Power Distribution & Electrical Utilities: Used within high-voltage switchgears and busbar connections to
maintain constant, uniform contact pressure, preventing bolt creep
and electrical arcing failures.
- Commercial Transportation & Heavy Machinery: Applied within automotive transmission assemblies, steering
linkages, and braking systems as robust shock absorbers and tension
elements.
The Sunzo Advantage: Why Partner With Us?
Corporate Structural Excellence: Jiangsu Sunzo Spring Elasticity Technology Co., Ltd. is a highly
respected mixed-ownership enterprise proudly backed by equity
participation from the China National Nuclear Corporation (CNNC)
ecosystem.
R&D Hub in Nanjing & Advanced Smart Production in Sihong: Sunzo operates a dual-facility ecosystem optimized for speed and
innovation, with dedicated Product Research & Development Center in
Nanjing and state-of-the-art manufacturing base in Sihong Economic
Development Zone.
World-Class Quality Frameworks: Our production processes are fully certified under global quality
architectures, including IATF 16949, ISO 9001, ISO 14001, and ISO
45001.
Elite Testing and Surface Treatment Laboratory: Sunzo houses an independent, fully equipped inspection laboratory
featuring advanced testing equipment and specialized surface
treatments including Zinc Phosphating, Mechanical Galvanizing, PTFE
anti-friction coatings, and high-tier Dacromet coatings.
Global Engineering & Procurement Support
Whether you require standard stock replacements or complex
custom-engineered elastic systems, Jiangsu Sunzo provides
end-to-end technical assistance. Our international engineering
division communicates fluently across global technical standards
(DIN, ASME, ISO, JIS), ensuring your specifications are accurately
translated from initial CAD models to final physical components.
Partner with Jiangsu Sunzo to secure a reliable,
vibration-resistant, and high-performance future for your
mechanical assemblies. Contact our Nanjing R&D center or our
Sihong manufacturing hub today for custom quotes, technical
consultations, and free engineering samples.
