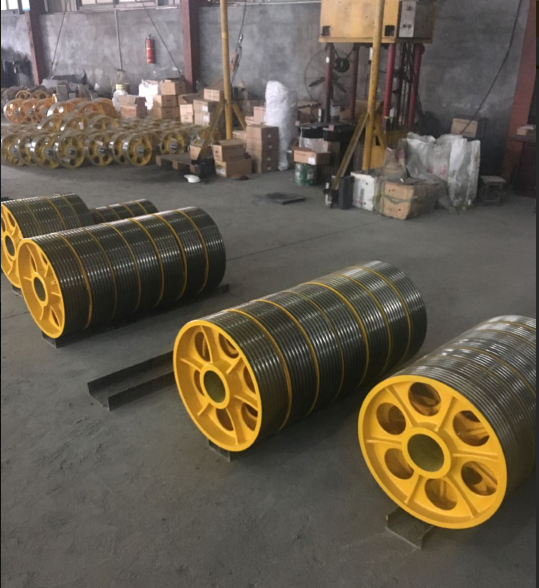

Elevator Cast Iron Traction Pulley Deflector Sheave Steel Material
Traction Wheel,Customizable
Product Overview
The cast iron traction pulley is manufactured from high-strength
gray cast iron or ductile cast iron. As a key component of the
elevator traction system, it changes the direction of wire rope
force and increases the center distance between the car and
counterweight. With excellent rigidity and impact resistance, it is
especially suitable for heavy-duty and high-frequency elevator
applications.
Key Features
· High Strength & Durability: Cast iron provides excellent
rigidity and impact resistance, capable of withstanding large
dynamic loads without deformation over long-term use.
· Excellent Wear Resistance: Rope grooves are surface-hardened for
outstanding wear resistance, ensuring long-term stability when used
with wire ropes.
· Dimensional Stability: Cast iron offers good creep resistance,
maintaining precision under significant temperature changes or
long-term load conditions.
· Precision Machining: Rope grooves are CNC-machined with minimal
profile error, effectively reducing wire rope wear.
· High Load Capacity: Meets the demands of large-tonnage freight
elevators and high-capacity passenger elevators.
Specifications
· Diameter range: Φ200–1000mm
· Applicable rope diameter: 6–16mm (customizable)
· Groove types: U-groove / Undercut semi-circular groove
· Bearing configuration: Heavy-duty deep-groove ball bearings or
tapered roller bearings for high load capacity
Applications
Suitable for large-tonnage freight elevators, high-frequency
passenger elevators, high-rise high-speed elevators, and industrial
elevators with heavy loads.
Installation & Service
During installation, ensure end-face parallelism and verticality
error ≤2.0mm. Custom non-standard sizes are supported. Load
calculation and installation guidance services are available.
If you need to adjust the type and diameter range of the rope
groove or supplement specific model parameters, further
customization is possible.
Welcome to visit, if you didn't find the goods you want can send
processing drawing to us with production.
1, Many specifications
2, good quality
3, reasonable prices
4, thoughtful service
Main products: complete elevators, various specifications of rope fastening, oil
buffer, guide shoe, shoe lining, overspeed governor, safety
accessories and all elevator parts.
