PLC Control Automatically Galvanized Square Tube Pipe Laser Welding Roll Forming Machine

Categories Down Spout Roll Forming Machine
Delivery Time: 40-50 days
Life time: more than 10 years
Model Number: XY65
MOQ: 1 set
Product name: PLC Control Automatically Galvanized Square Tube Pipe Laser Welding Roll Forming Machine
Brand Name: CHBEST
Control system: PLC
Supply Ability: 10 sets/month
Material: PPGI/ GI
Packaging Details: plastic film for naked machine
Warranty: 2 years
Certification: CE/BV/SGS
Botttom frame: 360H steel
Place of Origin: China Hebei
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

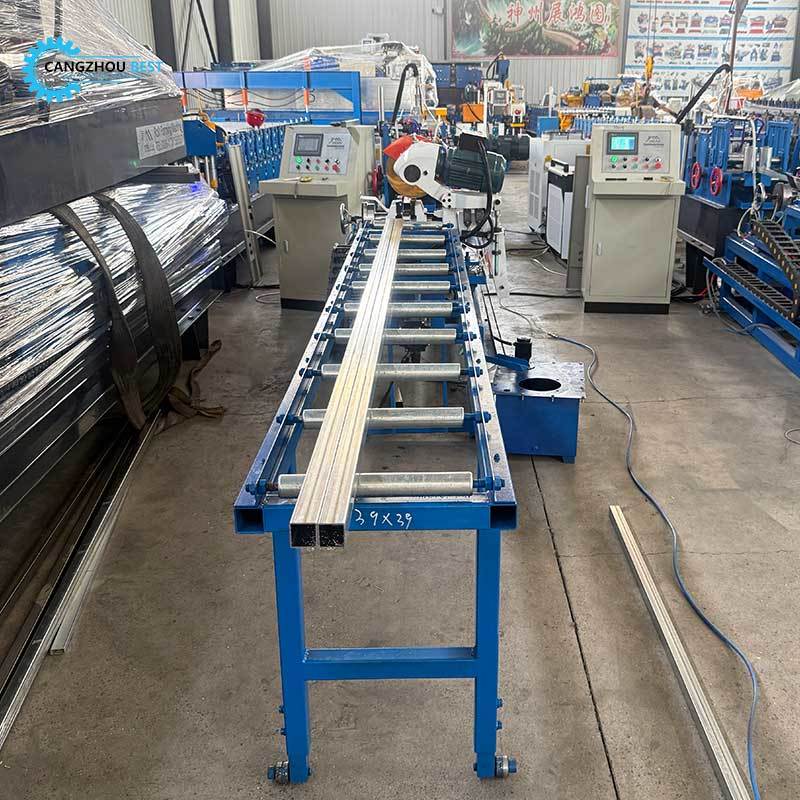

PLC Control Automatically Galvanized Square Tube Pipe Laser Welding Roll Forming Machine

PLC Control Automatically Galvanized Square Tube Pipe Laser Welding Roll Forming Machine
This advanced multi-size steel galvanized square tube pipe laser welding roll forming machine efficiently produces square tubes dimensions with precision laser welding technology.

Galvanized Square Tube Pipe Laser Welding Roll Forming Machine Working Process Flow
  • Decoiler → Feeding → Roll Forming → Laser Welding → Cut to Length → Output Table
Galvanized Square Tube Pipe Laser Welding Roll Forming Machine Machine Components
  • De-coiler - 1 set
  • Forming machine - 1 set
  • Laser welding machine - 1 set
  • Cutting device - 1 set
  • PLC control box - 1 set
  • Hydraulic pump station - 1 set
  • Production support table - 1 set
Galvanized Square Tube Pipe Laser Welding Roll Forming Machine Decoiler Specifications
TypeManual Type (Standard)Hydraulic Type (Optional)
Width500mm600mm
CapacityMax 5 tons5-15 tons
Inner Diameterφ450-550mmφ450-550mm
Outer Diameterφ1500mmφ1800mm
Galvanized Square Tube Pipe Laser Welding Roll Forming Machine Specifications
  • Material Thickness: 0.7-2.0mm
  • Number of Roller Stations: 16 stations
  • Roller Material: GCR15 steel polished and chrome coated HRC58-62°
  • Shaft Material: High grade 45# steel polished (CNC lathe)
  • Motor Power: 11 KW (Shanghai brand)
  • Shaft Diameter: 80mm (Solid shaft)
  • Bottom Frame: 350*175*8mm H steel
  • Frame Panel Thickness: 20mm
  • Driven Type: 1.2 inch Chain
  • Speed: 4-6 m/min
  • Cooling system included
  • Lubrication system included

Galvanized Square Tube Pipe Laser Welding Roll Forming Machine Cutting System Specifications
TypeMould Type
Blade MaterialCr12mov quenching and grinding
Frame ProcessingWhole bottom frame grinding for high-precision
Blade ProcessingWire-electrode cutting (upper blade not straight - technical requirement)
Working TypeHydraulic
Galvanized Square Tube Pipe Laser Welding Roll Forming Machine Stacker Options
TypeManualAuto (Optional)
Length2 pieces6m or 12m
Galvanized Square Tube Pipe Laser Welding Roll Forming Machine PLC Control System
Main ItemParameter Detail
PLCDelta (standard) or according to request
InverterChina brand (standard) or according to request
Touch ScreenMcgs (standard) or according to request
EncoderChina brand (standard) or according to request
Voltage/HZ/Phase380v/50-60hz/3phase
Galvanized Square Tube Pipe Laser Welding Roll Forming Machine Hydraulic Pump System
The system is driven by a Gear Pump. After filling hydraulic oil into the tank, the pump drives the hydraulic cylinder to execute cutting functions. The system includes hydraulic tank, Gear Pump, hydraulic pipes, and two Solenoid Valves.
Main ItemParameter Detail
Motor3kw China brand or according to request
PumpChina brand or according to request
Solenoid ValveChina brand or according to request
Cooling SystemCooling fan
