50pos High Density 10A Crimping Inserts
HD-050-MC/FC are 50-contact ultra-high-density crimp inserts
designed for industrial applications requiring multiple circuits in
a compact space. Rated at 10A and 250V, they support 0.14-2.5 mm²
wires and are compatible with H32A hoods and housings. The inserts
feature PC insulation and copper-alloy contacts with silver or gold
plating options.
Technical Specifications
| Series | HD High Density |
|---|
| Descriptions | Heavy Duty Power Connector Insert |
|---|
| Gender | Male and Female |
|---|
| Mating Cycle (Mechanical Working Life) | ≥ 500 |
|---|
| Size | 32A |
|---|
| Working Temperature Range | -40℃~125℃ |
|---|
| Termination Method | Crimp Terminal, Order Crimp Contacts Separately |
|---|
| Number of Contacts | 25*2 |
|---|
| Rated Voltage | 250V |
|---|
| Rated Current | 16A |
|---|
Product Drawings
HD-025-MC
HD-025-FC
Product Overview
The inserts feature PC insulation and copper-alloy contacts with
silver or gold plating options. Crimp termination allows quick and
reliable wiring, making them suitable for industrial machinery,
automation equipment, control cabinets and other applications with
high-density wiring requirements.
Quality Testing Equipment

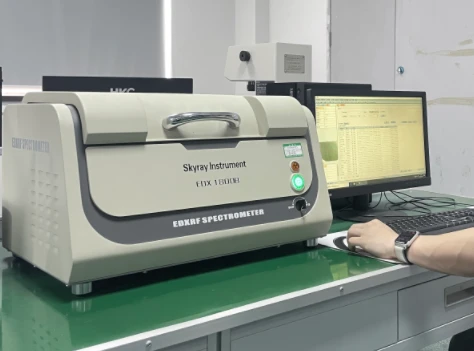

Skyray Instrument

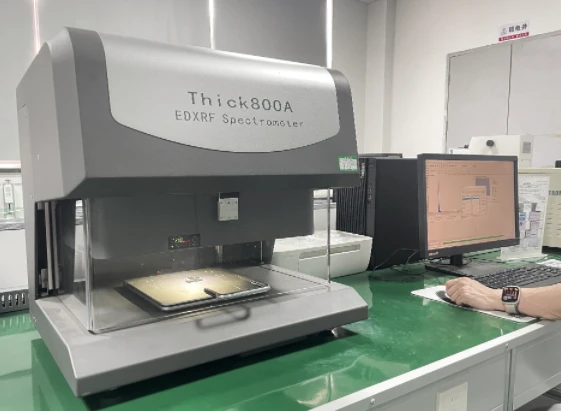

EDXRF Spectrometer
Temperature Testing Machine
Industrial Applications
Battery Testing Equipment
Battery testing equipment typically includes a test cabinet,
control module, test modules, wiring harnesses, and various
auxiliary devices, resulting in relatively complex internal wiring.
As the equipment's functionality increases, the number of
connection points and wiring also increases. Therefore, connectors
must meet corresponding electrical requirements while considering
factors such as installation space, wiring density, connection
methods, and future maintenance.
Team Collaboration
At ZJHK, teamwork is fundamental to our daily operations. Our
R&D, production, quality, and sales teams maintain close
communication, share ideas, and support each other throughout every
project. We organize regular team-building activities and employee
events to foster connections beyond daily work responsibilities.
Through collaborative efforts and mutual understanding, we build
stronger teams and provide more efficient customer support.
Company Profile
Zhejiang Haoke Electric Co., Ltd. (ZJHK) specializes in the
research, development, design, and production of heavy-duty
connectors. Since establishment, we have focused exclusively on
this field, developing comprehensive product lines including HA,
HE, HEE, HD, HDD, HSB, HK, HQ, and HM series with thousands of
possible combinations for diverse electrical and signal connection
requirements. Our products serve industrial automation, hot runner
molds, rail transportation, equipment manufacturing, industrial
system connections, and information control systems. With an
experienced technical team, in-house mold development capabilities,
and annual production capacity of approximately 1.5 million sets,
ZJHK provides both standard products and customized solutions. We
continuously improve product quality, production efficiency, and
technical support to build lasting partnerships with customers
worldwide.
