Test Kit Strip Cutting Machine with Packing Machine 2000 pcs/hour

Test Kit Strip Cutting Machine with Packing Machine 2000 pcs/hour

Test Kit Strip Cutting Machine with Packing Machine 2000 pcs/hour
Test Kit Strip Cutting Machine with Packing Machine 2000 pcs/hour
Categories Rapid Test Kit Assembly Machine
Place of Origin: China
Power: 1.5KW
Speed: 2000 pcs/hour
After-sales Service Provided: Service Machinery Overseas
Dimension: 2200*2100*1800mm
MOQ: 1 set
Price: 45000~60000$
Weight (KG): 1200kg
Warranty: 1 Year Guarantee
Weight: 1200kg
Packaging Details: Wooden
Air Pressure: 0.5~0.8MPa
Supply Ability: 10 PCS
Certification: CE ISO90001
Payment Terms: TT
Brand Name: Gereke
voltage: 220 V, 380 V
Delivery Time: 90~150 days
Model Number: TW-LT001
Lead Time: 60-120days
Advantage: High Efficiency Low Cost
Contact Now
Company Info.
Guangdong Gereke Automation Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Test Kit Strip Cutting Machine with Packing Machine 2000 pcs/hour

Test Kit Strip Cutting Machine and Packing Machine
Product Overview

This advanced automatic packaging machine is specifically designed for single strip test kit production, constructed from durable S45C steel for long-lasting performance in industrial environments.

Key Features
  • Intelligent System: High-quality PLC system integrated with touch screen and inverter for easy operation and energy efficiency
  • Machine Transmission: High-performance electronic cam transmission system for stabilized and durable operation
  • Feeding System: High-performance vibrating bowl feeder
  • Controlled by PLC for precise operation
  • Easy operation with reduced labor requirements
  • Each section equipped with check sensors for quality control
  • All components sourced from international brands
Major Components Origin
No.ProductProducerOrigin Country
1Solenoid valveSchFrench
2Photo sensor/fiber opticPanic/KeyenceJapan
3Main motorChina Taiwan, INOVANCEChina Taiwan
4PLCINOVANCE/MitsuChina/Japan
5RelaySchder/HoneyFrench/USA
6Proximity sensorAutonicsKorea
7Air filterChina TaiwanChina Taiwan
8CylinderSMC/Air tacJapan/China Taiwan
9Electronic camKoyoJapan
10InverterShihlin/DeltaChina Taiwan
11Stroke/rod eyeIko, MisumiJapan

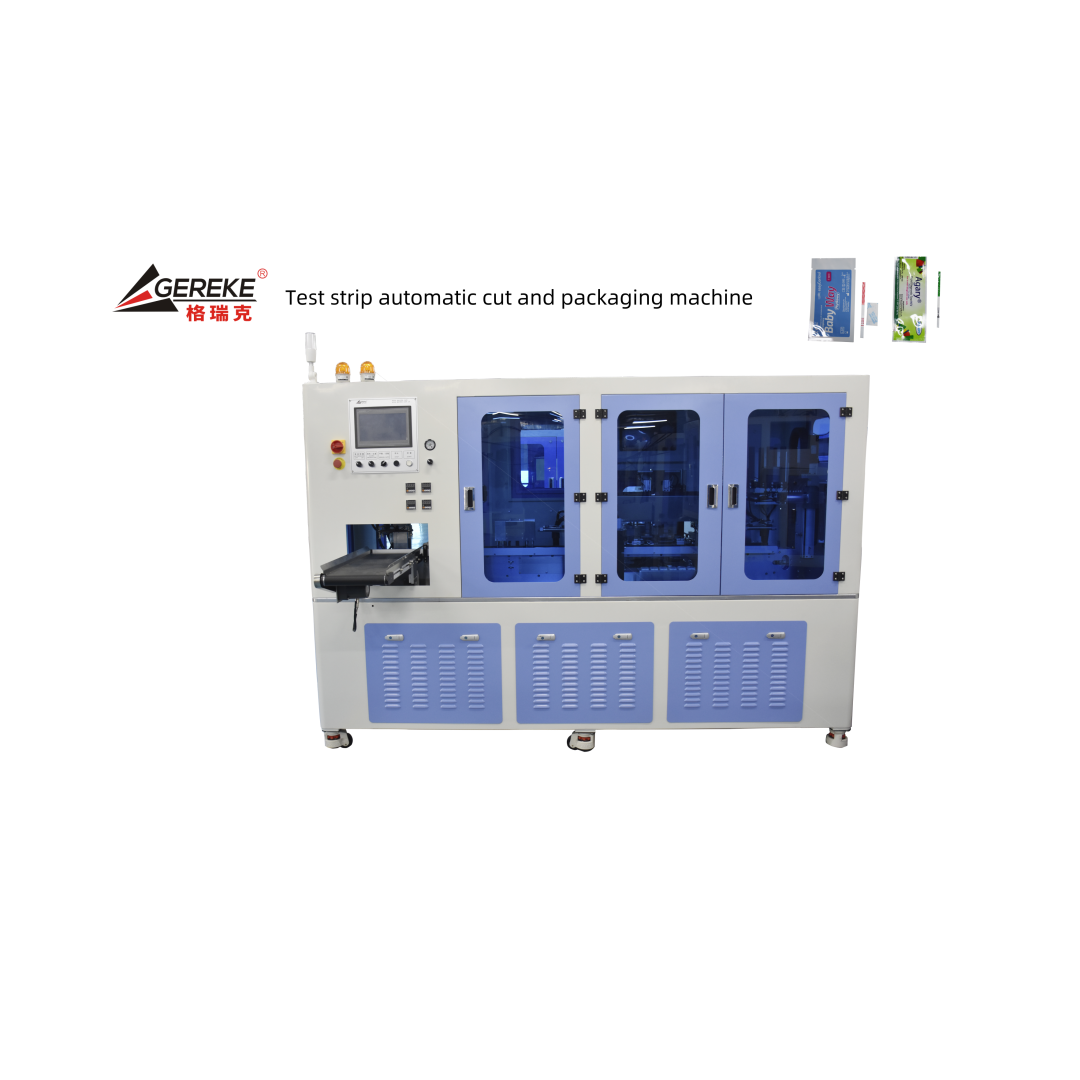

Test Kit Strip Cutting Machine components and assembly
Assembly Sequence
  1. Strip cutting
  2. Strip check
  3. Strip fitting
  4. Camera sensor check
  5. Pouch feeding and check
  6. Desiccant feeding and check
  7. Push the strip and desiccant to the pouch
  8. Check
  9. Hot sealing
  10. Discharge the good one
  11. Eject the bad one
Test Kit Strip Cutting Machine assembly process diagram
Technical Specifications
Voltage380VAC / 50HZ, 15A
Power3500W
Dimension4200 * 2100 * 1800mm
Weight2200kg
Air Pressure0.5~0.8MPa
Operating Speed30-35 pcs/min
Frequency50Hz
Product Application

Designed for IVD (In Vitro Diagnostic) production manufacturers in plant environments.

Frequently Asked Questions
Q: I am interested in your product, can you supply?
A: Yes, we are a professional manufacturer and exporter specializing in the design, development and production of various special filling machines, assembly machines, packing machines and related equipment.
Q: What do I need to provide documents?
A: 1. The material of your product 2. The size of your product and the pattern 3. The shape of your product
Q: What is the lead time?
A: 45-90 days after receiving the advance payment and samples
Q: How do you shipment the product?
A: By sea, by air, by express
Q: Do you have the CE certification?
A: Yes, we have the CE certification
Q: What document will you provide?
A: Installation manuals, Maintenance manuals, Electrical schematics diagram. For medical machines we will provide IQ, OQ and spare part list.
Q: What is the material of your machine?
A: The majority of parts are 45# steels, while parts that contact with the product are made from stainless steel S304.
Q: What services can we provide?
A: Accepted Delivery Terms: FOB; Accepted Payment Currency: USD, EUR, HKD; Accepted Payment Type: T/T, Cash; Language Spoken: English, Chinese
