HX36B Automatic Notebook Elastic Band Fixing Machine Completing Punching Threading Gluing And Stacking

Categories Notebook and Exercise Book Making Machine
Model Number: HX36B
Max Cover Size: 300×420mm(W×L)
Price: USD 50000 per set
Distance from Hole to Cover Edge Side: 0-40mm
Payment Terms: L/C,D/A,D/P,T/T
Elastic Band Length: 0-160mm
Certification: CE
Working Speed: 2000pcs/h
MOQ: 1 set
Delivery Time: 30 work days
Distance from Hole to Upper and Bottom Side: 9-100mm
Supply Ability: 10 sets/month
Cover Thickness: 0.7-7mm
Brand Name: HXCP
Min Cover Size: 70×100mm(W×L)
Place of Origin: China
Distance between 2 Holes: 40-271mm
Packaging Details: Stretch Film with Wooden Case
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

HX36B Automatic Notebook Elastic Band Fixing Machine Completing Punching Threading Gluing And Stacking

HX36B Automatic Notebook Elastic Band Fixing Machine
The HX36B Automatic Notebook Elastic Band Fixing Machine is dedicated post-press equipment for automatically attaching and fixing elastic bands onto notebook covers. This advanced system integrates a complete production workflow including notebook feeding, punching, elastic band threading, cutting, gluing, fixing, and finished product stacking within a compact unit.

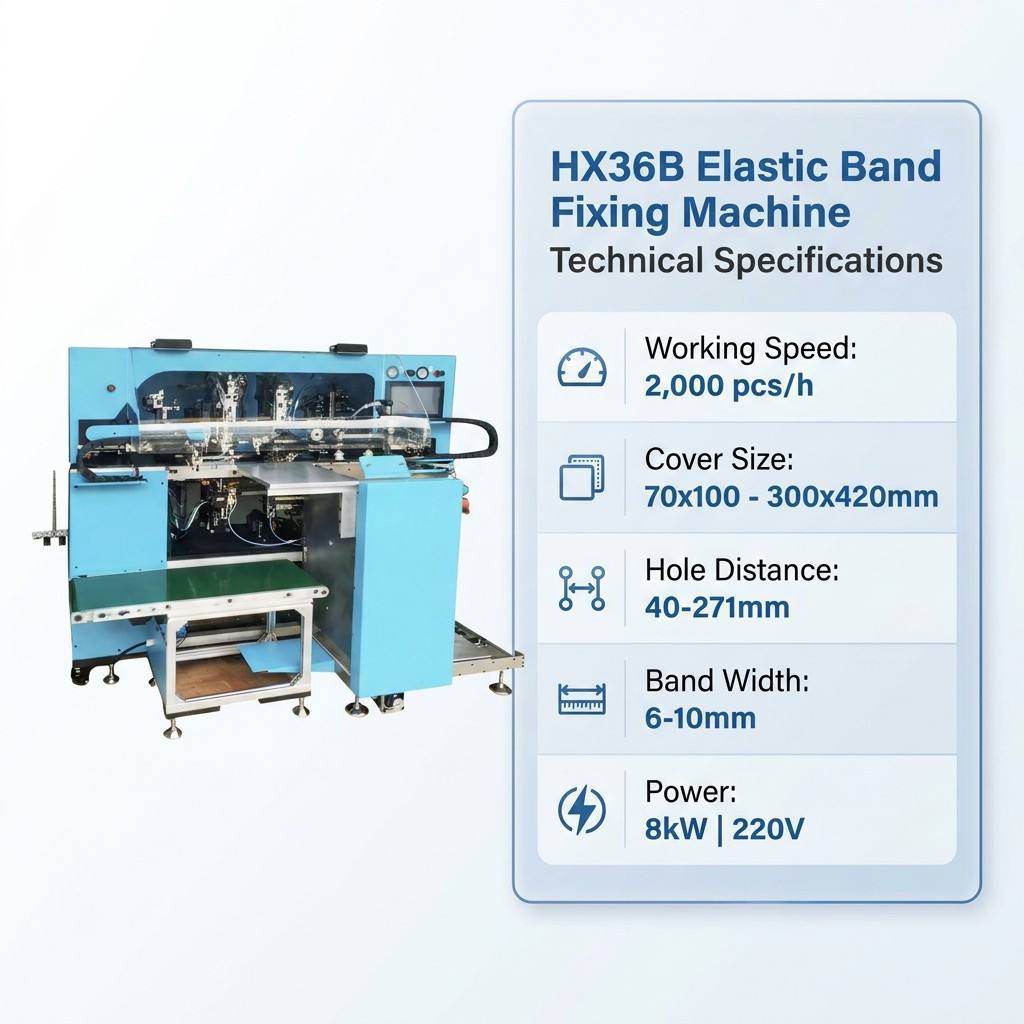

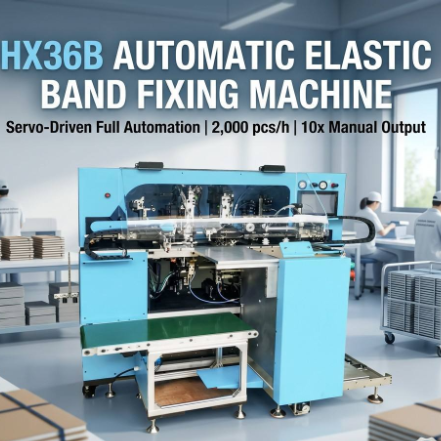

HX36B Automatic Notebook Elastic Band Fixing Machine front view HX36B machine side view showing operational components HX36B machine close-up of elastic band processing mechanism
Key Specifications:
• Production Capacity: 2000 pieces per hour
• Program Memory: 10 sets of job parameters
• Operation Modes: Fully automatic and semi-automatic
• Compatible Products: Hardcover, softcover, and pre-cased notebooks
• Drive System: Servo motor control
Application Scenarios
  • Stationery factories: Mass production of elastic band notebooks, planners, journals, and diaries
  • Printing & binding workshops: Post-processing of hardcover and softcover notebooks with elastic closures
  • Notebook manufacturers undertaking diversified orders with frequent specification changes
  • Production workshops requiring both mass automatic production and small-batch trial production
  • Custom stationery processing plants for sample testing and flexible batch manufacturing
Core Advantages
  • Fully automatic completion of feeding, punching, threading, cutting, gluing, fixing, and stacking
  • Integrated elastic band processing procedures in one compact unit to save workshop space
  • Servo drive control maintains stable running performance and reduces unexpected shutdown frequency
  • Productivity exceeds ten times manual operation, greatly improving production efficiency
  • 10 groups of program memory for rapid specification switching between different notebook types
  • Optional semi-automatic mode meets demands of sample testing and small-batch orders
