20W/40W PA System Speaker Adjustable Bracket Wall Speaker 100V ABS Material

Two Way Wall Mounted PA System Speaker with Individual Tweeter and 4 Inch Woofer

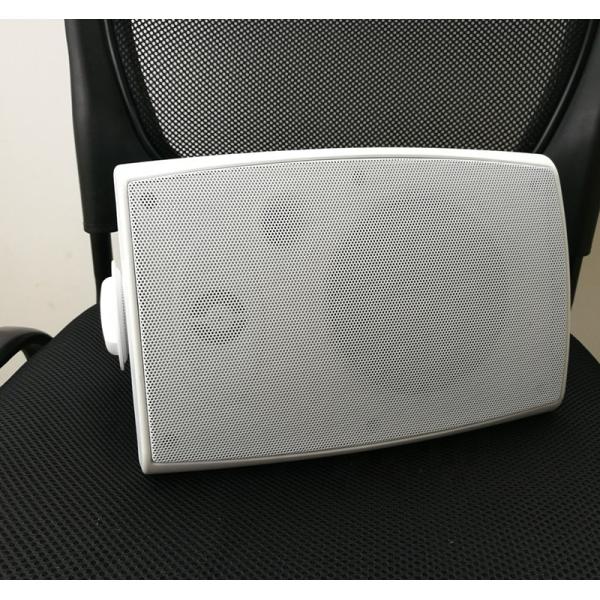

WTL-04 Two Way Wall Mounted PA System Speaker Individual Tweeter and 4 Inch Woofer Adjustable Wall Speaker

The WT series features two-way wall mount speakers with a 1" tweeter and 4"/5"/6"/8" woofer configuration, delivering stereo sound with clear treble and bass. Built with a 70V/100V transformer to reduce line losses over long distances and enable easy parallel connection of multiple speakers. The durable construction includes a metal grille, ABS enclosure, and painted mounting bracket, available in black or white. Ideal for industrial and commercial applications requiring background music and paging in hotels, schools, offices, and factories.

Design & Construction

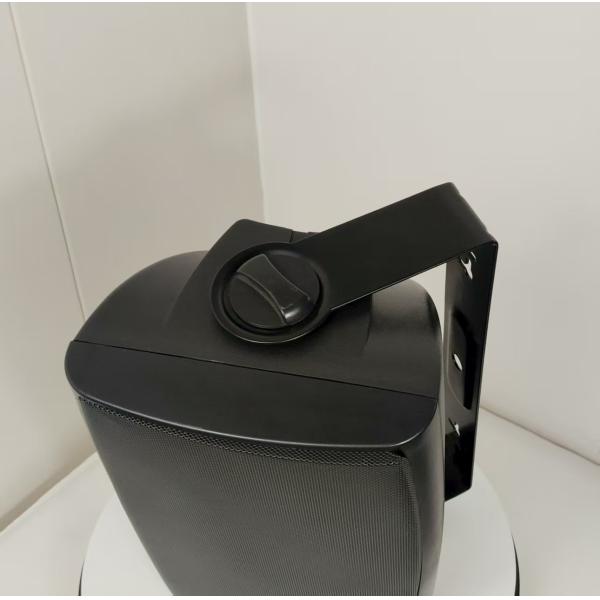

Mounting: Wall-mounted design for flexible installation
Materials: Durable metal grille with ABS enclosure
Color Options: Available in black and white finishes
Size Variants: 4", 5", 6", and 8" woofer options available

Audio Performance

Speaker Configuration: Two-way system with 1" tweeter and 4"-8" woofer
Transformer: Built-in 70V/100V for long-distance audio transmission
Power Handling: Various power options from 20W to 60W
Sound Quality: Wide frequency response (90-20KHz) with high sensitivity (87-89dB)

Applications

Perfect for background music and public address systems in commercial and industrial environments including hotels, schools, office buildings, and manufacturing facilities.

Technical Specifications

Model	Speaker Size	Power	Voltage	Sensitivity	Frequency Response	Dimension(mm)	Material
WTL-04	1" tweeter, 4" woofer	20W/40W	8Ω	87DB	90-20KHz	220×150×135	ABS
WTT-04	1" tweeter, 4" woofer	20W	100V	88DB	90-20KHz	220×150×135	ABS
WTS-04	1" tweeter, 4" woofer	2.5/5/10/20/8Ω	100V/70V	88DB	90-20KHz	220×150×135	ABS
WTL-05	1" tweeter, 5" woofer	30W/60	8Ω	88DB	90-20KHz	255×178×155	ABS
WTT-05	1" tweeter, 5" woofer	30W	100V	89DB	90-20KHz	255×178×155	ABS
WTS-05	1" tweeter, 5" woofer	3.75/7.5/15/30W/8Ω	70V/100V	89DB	90-20KHz	255×178×155	ABS
WTL-06	1" tweeter, 6" woofer	40W/80	8Ω	87DB	90-20KHz	310×213×195	ABS
WTT-06	1" tweeter, 6" woofer	40W	100V	89DB	90-20KHz	310×213×195	ABS
WTS-06	1" tweeter, 6" woofer	5/10/20/40/8Ω	70V/100V	89DB	90-20KHz	310×213×195	ABS
WTL-08	1" tweeter, 8" woofer	60W/8Ω	8Ω	88DB	90-20KHz	417×289×255	ABS
WTT-08	1" tweeter, 8" woofer	60W/120W	100V	88DB	90-20KHz	417×289×255	ABS
WTS-08	1" tweeter, 8" woofer	7.5/15/30/60W/8Ω	70V/100V	88DB	90-20KHz	417×289×255	ABS
