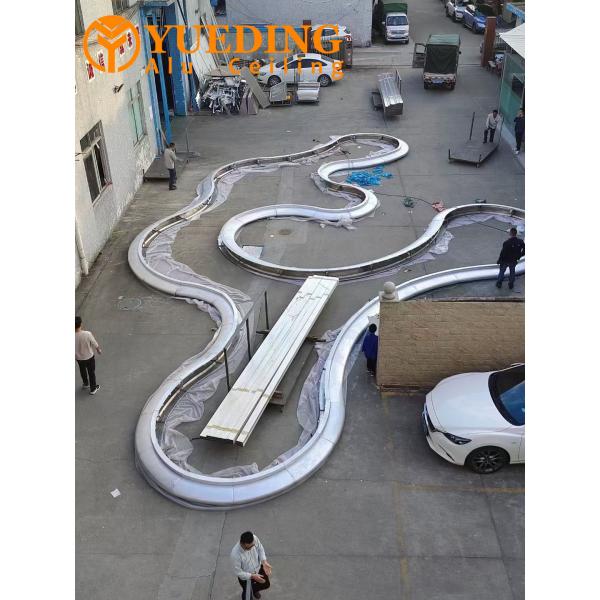

Curved Custom Aluminum Panels Hyperbolic Double Arc For Canopies / Columns

Curved aluminum sheets and hyperbolic double arc aluminum sheets are used for canopies and columns.

PRODUCT DESCRIPTION

1. Complex surface modeling
Using advanced CNC technology processing, it can realize the complex three-dimensional surface design of hyperbolic and double arcs, meet the needs of difficult architectural modeling (such as special-shaped roofs, art sculptures, etc.), and show smooth geometric beauty.

2. Lightweight and high-strength materials
High-quality aluminum alloys (such as 3003/H24 or 5052 series) are selected, which have both lightweight (low density) and high strength, and are resistant to wind pressure and deformation, suitable for long-span building curtain walls and high-altitude decoration.

3. Precise customized processing
Through 3D modeling and CNC sheet metal processes (arcing, stretching, welding, etc.) for precise forming, the error is controlled within ±1mm to ensure that the curved surface is spliced tightly.

4. Weather resistance and environmental protection
The surface treatment can be fluorocarbon spraying (PVDF), anodizing or powder coating, UV resistance, corrosion resistance, suitable for -40°C~80°C extreme environment, service life of more than 20 years, 100% recyclable.

5. Multi-functional application scenarios
It is suitable for landmark building curtain walls (such as airports, gymnasiums), art installations, commercial space ceilings, etc., with both structural support and decoration, and supports LED lighting integration design.

6. Easy and efficient installation
The modular design of the unit is adopted, with a hidden keel system, which reduces on-site welding, reduces the difficulty of construction, and shortens the construction period by more than 30%.

Usage

1. Curtain wall decoration: fluorocarbon-coated aluminum panels create a modern façade and enhance the visual grade of the hotel;
2. Roof modeling: lightweight characteristics to achieve complex curved surface design and enhance architectural artistry;
3. Canopy logo: Customized etched LOGO combined with lighting to strengthen brand recognition;
4. Indoor partition: imitation wood grain transfer aluminum plate creates a warm atmosphere and takes into account fire prevention needs;
5. Elevator edging: 3mm thickened aluminum plate is anti-collision and wear-resistant, maintaining the aesthetics of high-frequency use;
6. Energy-saving enclosure: The hollow insulation structure reduces the energy consumption of air conditioners and meets green building standards.

Features

1. Extreme modeling ability
Breaking through the limitations of traditional metal sheets, it can achieve a complex three-dimensional curved surface with a double curvature and double arc, perfectly restore the architect's avant-garde design concept, and create a landmark architectural artistic effect.

2. High precision CNC molding
Using CNC digital modeling and automated sheet metal processes (such as multi-point stretching, rolling arc cold pressing), the surface accuracy reaches ±0.5mm, ensuring that there is no visual deviation during large-area splicing and reducing on-site adjustment costs.

3. Super structural stability
Aluminum alloy substrates (such as 5052-H32) are designed with stiffeners, with a wind pressure resistance rating of ≥ 9kPa and excellent seismic performance, making them suitable for super-high-rise buildings and coastal typhoon-prone areas.

4. Durable throughout the life cycle
Surface fluorocarbon spraying (PVDF) has passed the AAMA 2605 standard, with over 4,000 hours of salt spray resistance testing, color fidelity of more than 15 years, and maintenance costs reduced by 60% compared to traditional materials.

5. Prefabricated construction revolution
The pre-installed buckle system is combined with BIM technology, which increases the installation efficiency by 40%, and the scaffold-free construction reduces potential safety hazards, especially suitable for major projects with tight construction periods.

Installation principle:

1. Keel support: A light steel or aluminum alloy keel frame is used to ensure the overall structural stability and load-bearing needs.
2. Dry hanging system: Connected with the keel through metal pendants, it realizes welding-free installation and reduces the risk of thermal deformation.
3. Floating design: Expansion joints (5-8mm) are reserved between plates to adapt to thermal expansion and contraction, avoiding deformation and cracking.
4. Three-dimensional adjustable: the pendant can be adjusted horizontally, longitudinally and forward and backward to ensure the flatness of the curtain wall (error ≤ 2mm).
5. Sealing and waterproofing: The seams are filled with weather-resistant glue and waterproof rubber strips are installed to eliminate leakage hazards.
6. Modular assembly: Unit-type pre-assembled boards, directly hoisted on site, improving efficiency and reducing labor costs.

Guangdong Yueding Building Materials Co., Ltd. (established in 2017) is deeply involved in the field of aluminum alloy decoration, mainly engaged in aluminum veneer, aluminum square communication and other products. The company has advanced production lines and exquisite craftsmanship, pays attention to product innovation and detail control, and can provide customized design and production. The products combine aesthetics and durability, making them ideal for exterior and interior decoration in large venues and commercial complexes.
