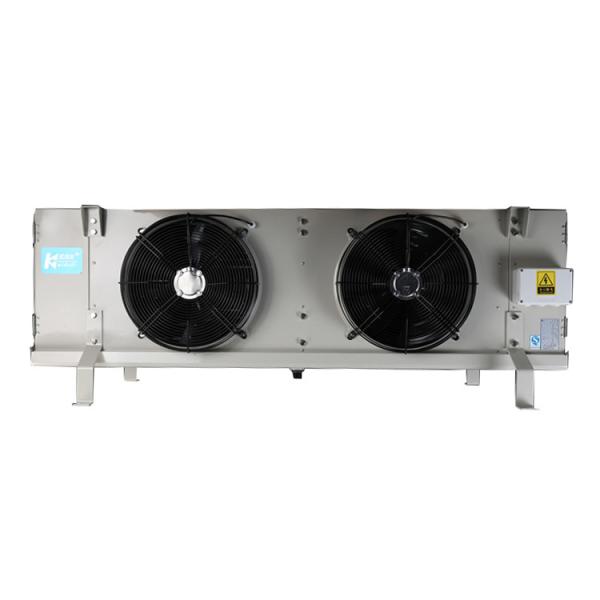

Water flushing frost ceiling air cooler suitable for fresh-keeping and low-temperature refrigeration warehouses, compatible with refrigerants such as R404A/R507/R22, and supports 220V/380V voltage

EW series water flushing frost ceiling air cooler

The EW series air coolers developed by our company mainly use water as the defrosting method. Water defrosting has the characteristics of fast defrosting speed, good defrosting effect, minimal impact on storage temperature, and energy saving, and is widely used in the market.The EW series air coolers are mainly used for fresh-keeping warehouses at around 0 ℃ and low-temperature refrigerated warehouses at around -18 ℃.
1.Enclosure: High-quality galvanized steel plate sprayed with powder coating (silver gray RAL9006), with desirable corrosion resistance; plates on both sides are designed with hinged structure, which is convenient to operate;

2.The end plate of the heat exchanger is made of aluminum plate, which effectively protects the copper tube and reduces weight
3.Double water tray design: The outer water tray is designed with edge structure with angle, which makes the water drain smoothly without any dead angle; the inner water tray is designed with sink structure made of aluminum plate, and the condensed water or defrost water is directly discharged into the drainage outlet of the outer water tray through the inner water tray;
4.Designed with overall stretching large arc high air tube, it has the characteristics of excellent air guiding effect.

5.Using a sealed sprinkler tray, a water blocking plate is installed at the air inlet to prevent splashing of frost water；

6.Installed with floor support legs for easy installation；
7.Coil: The aligned tube pattern 50 X 50 mm features large heat transfer area, low heat transfer temperature difference;
8.Corrugated aluminum sheet made of hydrophilic aluminum foil, with the sheet spacing of 4.0mm, 6.0mm and 9.0mm to meet different operation requirements;
9.Far: The fan with blowing air and operating temperature of -45 °C, which is equipped with a motor with higher power and higher wind pressure, to ensure the residual pressure outside the machine, reduce the wind speed on the surface of the food, lower dry consumption, and improve the quality of food freezing;
10.The IP65 waterproof junction box and waterproof connectors are used,with better waterproofing; the fan and the heating pipe are wired separately, which can lead to high reliability;
11.The outlet of the air cooler is equipped with a needle valve, which is convenient for users to test the pressure;
12.It is subjected to strict pressure test at the pressure of 23bar;
13.The expansion valves, heating band of fan tube and other parts can be pre-installed according to customer’s needs;
14.It is compatible with R404A, R507A, R448A, R449A, R22 and other refrigerants.

Standard Configuration and Options

●:Standard component;○:Optional component;×:Not available

How to assure quality? Any procedure?

Our QC department will make sure of each step

Do you factory?

We are factory established in 1995 and through 30years developed,welcomed by all our customers.Because of all your support now we are a big family of more than 300 people,covered 50000 square meters,and your supporting is very important of continuing our dream of eating fresh and healthy food.

Why choose us

Professional:30years focus one thing-refrigeration equipments

Material we use sufficient

Certificate:CE, ISO, and cetiifcate of producing special pressure equipment

Projects reference

Zhejiang kaidi refrigeration equipment co.,ltd was established in 1995.It is a refrigeration equipment manufacturing company integrating research and development, processing and manufacturing, sales and commissioning services. The company is headquartered in Cangzhou City, Zhejiang Province. The company covers an area of 50,000 square meters. It has more than 30,000 square meters of modern factory buildings and more than 6,000 square meters of offices. It is equipped with advanced CNC processing equipment and high-standard testing laboratories. The company has a senior professional technical team and an experienced manufacturing team.

Since its establishment, the company has passed the ISO9001 quality management system certification, and has obtained industrial product production licenses and special equipment manufacturing licenses of the People's Republic of China (pressure vessels D1, D2). At present, the company's products mainly include air coolers, air-cooled condensers, shell and tube evaporators, shell and tube condensers, fully enclosed / semi-closed / screw compression condensing units, integrated compression condensing units and larger piston / screw Single and double-stage parallel units, ultra-low temperature air source heat pumps, air source heat pump drying units, water (ground) source heat pumps, etc.

After years of development, we not only have a complete product line, from chiller products and condenser products to different types of compressor units, which can meet the application requirements of different scales and different grades, and we attach great importance to the design support capacity of engineering refrigeration systems. The construction can provide professional technical support for the whole process of the project's pre-design, equipment selection, installation and commissioning to ensure the overall operation of the project. Based on the principle of customer-oriented, we have established a sound modern enterprise system and a comprehensive and effective quality management system, and have a pre-sales and after-sales service system that reflects promptly and thoughtfully.

"Kaidi" brand refrigeration products have a high reputation in China, and have won praise and recognition from customers. At the same time, they have also exported to Russia, Spain, Japan, South Korea, Malaysia, Vietnam and other countries, and have a place in foreign markets.
