K3V112DT-9C79 for JCB220 KRJ4690 High-Quality Excavator Hydraulic Pumps – Stable & Long-Lasting Operation

Categories Excavator Hydraulic Pump
Brand Name: TGFQ
Model Number: JCB220
Price: 890.00usd
Payment Terms: TT/LC/
Supply Ability: 300+
Part Name: Hydraulic pump
TYPE: K3V112DT-9C79
Qaulity: Top Quality
Applicable Industries: Machinery Repair Shops, Energy & Mining
Weight: 149KG
Packing Size: 81*41*60CM
Apply To Mode: Hyundai / Hydraulic Excavator
Mechanical: Excavator
Part number: KRJ4690
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

K3V112DT-9C79 for JCB220 KRJ4690 High-Quality Excavator Hydraulic Pumps – Stable & Long-Lasting Operation

Product Introduction

Seamless Compatibility with JCB220 KRJ4690 Hydraulic System

One of the standout advantages of the K3V112DT-9C79 is its seamless compatibility with the JCB220 KRJ4690 excavator’s existing hydraulic system, eliminating the need for costly modifications or retrofits. The pump is designed to match the exact specifications of the JCB220 KRJ4690, including mounting dimensions, oil flow rates, and pressure requirements. This ensures a hassle-free installation process, allowing technicians to replace the original pump with the K3V112DT-9C79 in a fraction of the time required for incompatible components. Moreover, the pump’s electronic control interface integrates perfectly with the JCB220 KRJ4690’s onboard computer system, enabling real-time monitoring of hydraulic performance and easy adjustment of settings. This compatibility not only saves time and money during installation but also ensures optimal performance of the entire hydraulic system, reducing the risk of malfunctions and improving overall equipment reliability. For businesses looking to upgrade their JCB220 KRJ4690 excavators without disrupting operations, the K3V112DT-9C79’s compatibility is a major selling point.

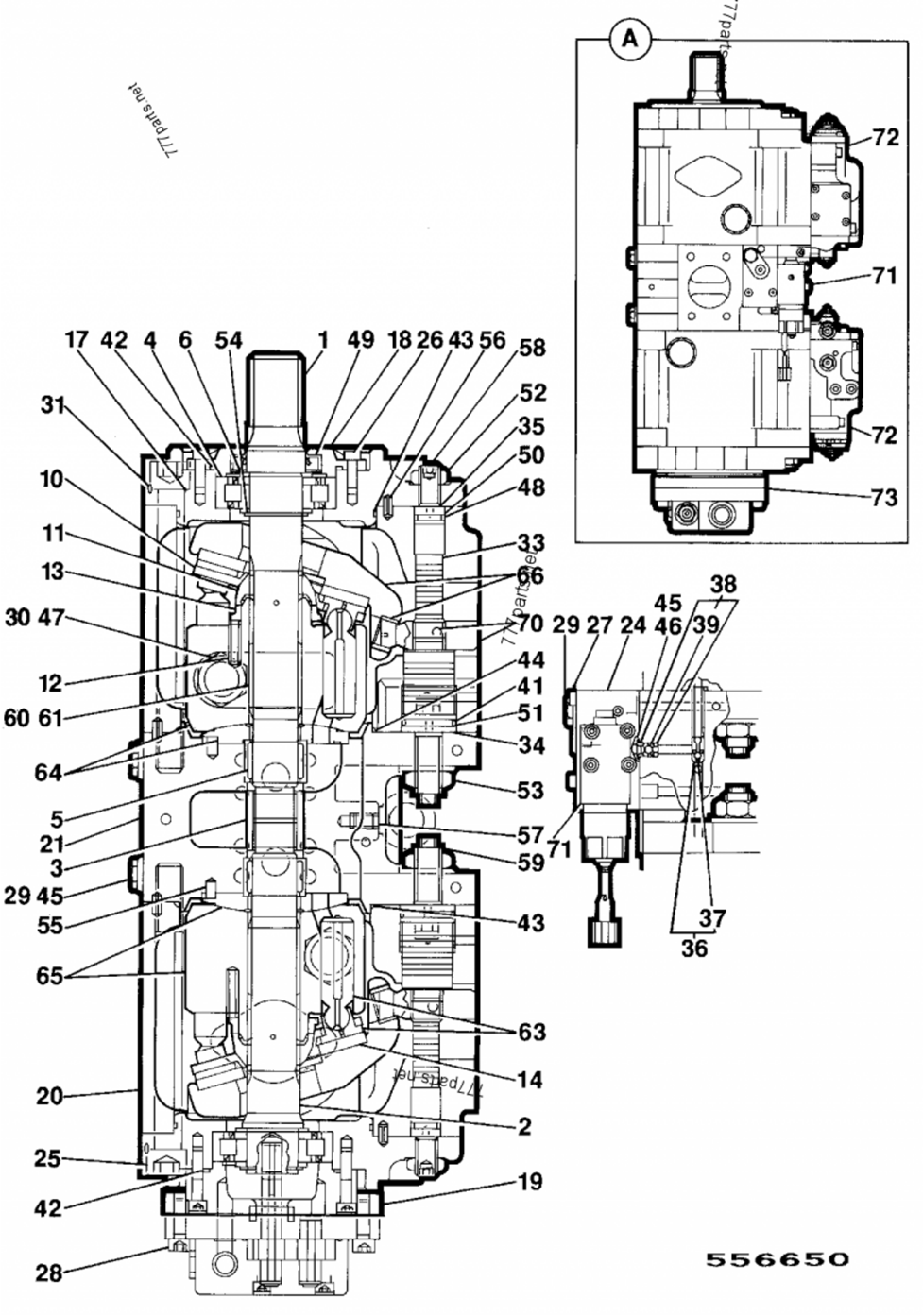

Parts Show







Pos.Part NoQtyParts name
AKRJ4690Pump, main hydraulic1
5LTP0045Bearing2
42LBQ0953O Ring2
50LBB0182Ring, back-up2
36LNP0178Valve, check assembly2
44LBQ0082O Ring16
35LMP0213Stopper2
6LMP0147Spacer4
261391/3305Capscrew, M8 x 204
64LNP0174Cylinder, sub assembly1
13LBO0502Spacer, special1
12LSP0109Spring18
53162R020VNNut, high, strength2
2LJP0036Shaft, drive, rear1
72LNP0181Valve, regulator assembly1
34LMP0212Stopper2
56LMP0217Pin, spring4
38LNP0177Valve, check assembly2
46LBQ9142O Ring1
41LBQ0353O Ring2
17LMP0210Plate, swash support2
51LBB0353Ring, back-up2
251391/3310Capscrew8
70LNP0180Pin, assembly, tilting2
55LMP0108Pin, plate2
58LUP0189Screw2
72998/10431Pump, regulator, replacement1
73LNP0172Pump, assembly, servo1
37N.S.P.None serviced part2
271391/3214Capscrew3
18LZP0176Cover, front oil seal1
531371/0701Nut2
61LMP0218Pin2
30LLM0028Plug3
4LTP0044Bearing2
52162R016VNNut, high, strength2
21LPP0097Valve, block1
3LCP0036Coupling, spline1
71LZP0179Valve1
33LPP0100Piston, servo2
47LBQ0242O Ring3
43LBQ1453O Ring4
24LWP0007Casing, valve1
BLNP0186Pump1
7320/925164Pump, assembly, servo1
542203/0054Circlip2
49LAP0029Seal, oil1
48LBQ0182O Ring2
66LNP0176Kit-swash plate, sub assembly2
39N.S.P.None serviced part2
47UBJ0158O Ring3
63LNP0173Kit, piston sub-assembly 9 off2
54370A0400ZRing, stop2
BKRJ4573Pump, main hydraulic1
1820/951844Cover, & seal assembly1
52162R016VZNut, high strength2
20LWP0006Casing, pump2


Why Choose TGFQ Over Other Excavator Part Dealers?

Reasons TGFQ Leads the Excavator Part Industry Globally

  • Model-Specific VIN Verification: We don’t just sell parts—our team uses your excavator’s VIN to confirm compatibility with its exact manufacturer specs, ensuring 100% fit. This has helped 570+ clients avoid “wrong part” reorders in the last year.
  • Flexible Order Options for Every Scale: Small repair businesses can order single parts starting at $50, while large operations get 15% off bulk orders of 100+ critical components like hydraulic valves.
  • Sustained Post-Purchase Support: After delivery, you’ll get free maintenance best practices (e.g., “How to Service Excavator Undercarriage”) and quarterly updates on part upgrades for your model.

    Trusted by an African construction firm with 7 years of partnership, TGFQ delivers more than parts; we deliver long-term operational success.
