| Categories | Excavator Hydraulic Pump |
|---|---|
| Brand Name: | TGFQ |
| Model Number: | DX260 |
| MOQ: | 1 |
| Price: | 1150.00usd |
| Payment Terms: | TT/LC/ |
| Supply Ability: | 300+ |
| Part Name: | Hydraulic pump |
| Qaulity: | Top Quality |
| Applicable Industries: | Machinery Repair Shops, Energy & Mining |
| Part number: | 401107-01044/400914-00489 |
| Weight: | 165KG |
| Bucket Capacity: | 0.2 M3 |
| Apply To Mode: | kobelco / Hydraulic Excavator |
| Mechanical: | Excavator |
| Company Info. |
| Guangzhou Tiangong Machinery Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

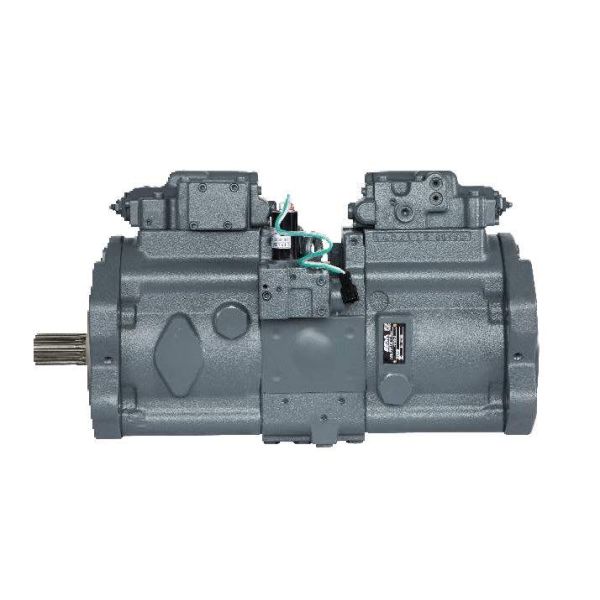

The K3V112DTP-9NM9 hydraulic pump enhances the lifting capacity of the DX260 401107-01044 excavator, making it capable of handling heavier loads with ease. By delivering higher hydraulic pressure and flow rates, the pump allows the DX260 401107-01044’s boom and arm to generate greater lifting force, increasing the maximum lifting capacity by up to 18% compared to the original equipment. This is particularly beneficial for tasks such as lifting heavy construction materials, loading trucks, and placing large components. The increased lifting capacity not only expands the range of tasks the DX260 401107-01044 can perform but also reduces the need for additional equipment, saving time and money. For construction companies that frequently handle heavy loads, the K3V112DTP-9NM9’s ability to boost lifting capacity is a key advantage.



| Number | Part Number | Part Name | Quantity |
| *. | 401107-01044 | [1] | |
| -. | 400914-00489 | [1] | |
| 11 | K9006418 | [2] | PISTON |
| 111 | 1.405-00055 | [1] | SHAFT;DRIVE(F) |
| 113 | 1.405-00057 | [1] | SHAFT;DRIVE(R) |
| 116 | 1.403-00004 | [1] | GEAR;1st |
| 123 | 1.109-00111 | [2] | PALIER |
| 124 | 1.109-00055 | [2] | BEARING;NEEDLE |
| 127 | 110951-01429 | [3] | |
| 13 | K9006419 | [1] | CYLINDER (R) |
| 14 | K9006420 | [1] | CYLINDER (L) |
| 153 | 1.412-00098 | [2] | PLAQUE |
| 156 | 1.110-00101 | [2] | BAGUE |
| 157 | 1.131-00131 | [18] | RESSORT |
| 211 | 1.412-00110 | [2] | PLAQUE |
| 212 | K9001177 | [1] | PLATE;SWASH |
| 214 | 2.408-00088 | [1] | BUSH;TILTING |
| 251 | K9001180 | [2] | SUPPORT |
| 261 | 1.430-00213 | [1] | COVER;SEAL(F) |
| 263 | 2.430-00366 | [1] | |
| 271 | K9005964 | [2] | CASING;PUMP |
| 30 | K9001176 | [2] | SWASH PLATE |
| 312 | K9001181 | [1] | BLOCK;VALVE |
| 325 | 1.402-00097 | [1] | CASING;VALVE |
| 401 | S2229071 | [8] | BOLT;SOCKET |
| 406 | S2208871 | [8] | BOLT;SOCKET |
| 407 | S2205861 | [3] | SCREW |
| 41 | K9001183 | [2] | CHECK VALVE (1) |
| 42 | K9001186 | [2] | CHECK VALVE (2) |
| 466 | 2181-1950D1 | [3] | PLUG |
| 467 | 2181-1950D2 | [2] | PLUG |
| 468 | 2181-1950D5 | [4] | PLUG PF3/4 |
| 490 | 2.181-00214 | [35] | PRISE |
| 530 | 1.123-00089 | [2] | TILTING PIN |
| 531 | 1.123-00090 | [1] | PIN;TILTING |
| 532 | 1.409-00209 | [2] | PISTON |
| 534 | 1.416-00020 | [2] | STOPPER(L) |
| 535 | 1.416-00021 | [2] | STOPPER(S) |
| 541 | K9001184 | [4] | SEAT |
| 543 | K9001185 | [2] | STOPPER;1 |
| 544 | K9001187 | [2] | STOPPER;1 |
| 545 | S6250132 | [4] | BALL;STEEL |
| 548 | 2.123-00154 | [1] | PIN;FEED BACK |
|
