50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device

Categories Thermoelectric Liquid Cooler
Brand Name: Adcol
Model Number: ATL050-12/24VDC
Certification: ISO9001, CE
Place of Origin: China
MOQ: 1
Price: Negotation
Payment Terms: T/T, Paypal
Supply Ability: 10kPcs/Month
Delivery Time: 3-4 Weeks
Packaging Details: Solid Carton Packaging
P/N: ATL050-12/24VDC
Cooling Method: Air to fluid
Cooling Objective: Purified water
Cooling objective Contact Part: Aluminum, partially copper
Cooling Capacity 50W Fan Input Voltage: 50W
Fan Input Voltage: 12/24VDC
Peltier Input Voltage: 12/24VDC
Rated Consumption Current: 8.7A /4.4A
Starting Current: 10.2A /5.1A
Working Humidity: Below 80%
Max Ambient Temperature: 60 degree
Overheat protection: no
Electrical Connection: Screw
Noise: 39DB
Site of Use: Indoor
Outer diameter of Pipe Connecting Port: dia 9.5mm
Dimensions: 160x120x84mm
Mass of Main Unit: est. 1.5kgs
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.



50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device


1.Product Introduction


The ATL050-24 Thermoelectric air to Liquid are designed for electronic liquid cooling. They can
cool to 72˚F below ambient or maintain ambient temperatures while removing up to 50W. These
models are available in 12 or 24 VDC configurations.

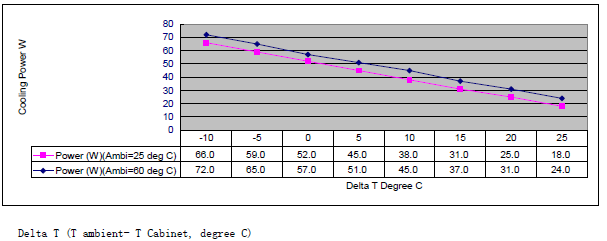

2.Performance Curve

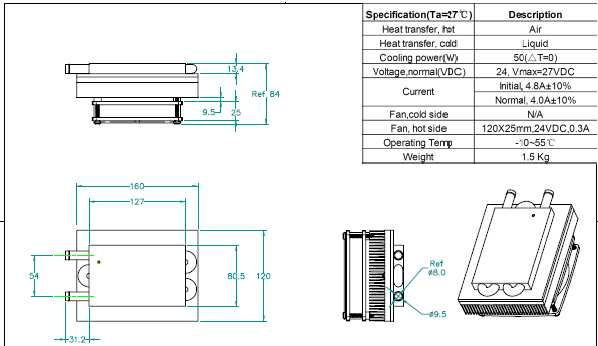

3.Product drawing
