| Categories | Thermistor Temperature Sensor |
|---|---|
| Brand Name: | JULUN |

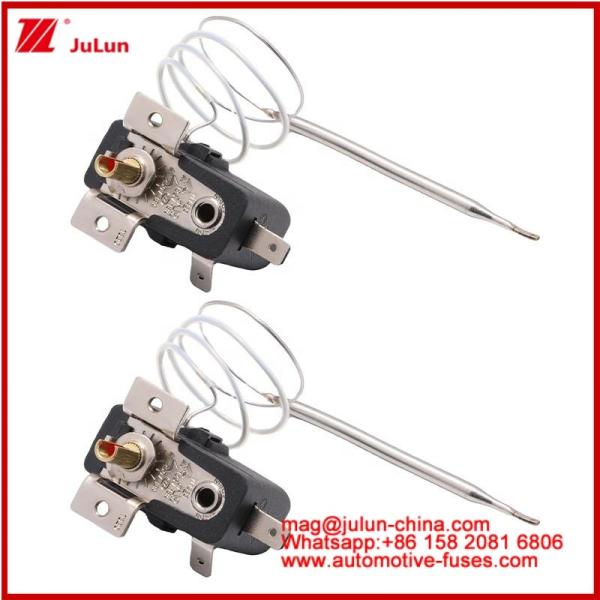

| Model Number: | KSD Bimetal Thermostat |
| Certification: | CE UL CCC |
| Place of Origin: | China |
| MOQ: | 100 |
| Price: | 0.7~1.5 |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/times |
| Delivery Time: | 1~2weeks |
| Packaging Details: | Carton |
| Contact type: | Normally Closed Or Normally Open |
| Temperature sensor face: | Aluminum Cap Or Copper Head. |
| House: | Plastic Or Ceramic. |
| Voltage & Current: | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A |
| ActionTemperature: | 0~250℃ |
| Temperature deviation:: | ±3 / ±5 / ±10 Degree Or According To Client's Request |
| Insulation resistanc: | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) |
| Life cycle: | ≥100000 Times |
| Company Info. |
| JULUN (H.K)CO.,LTD (DONGGUAN JULUN ELECTRONICS CO.,LTD) |
| Verified Supplier |
| View Contact Details |
| Product List |
The Thermistor Temperature Sensor has a high insulation resistance of AC50Hz 1500V / Min, with no breakdown or blinding in its normal state. This ensures that the sensor provides accurate temperature readings without any interference. It has an action temperature range of 0~250℃, which makes it suitable for use in various temperature-sensitive applications.
The Thermistor Temperature Sensor is a pin type sensor that can handle a maximum current of 10A and a maximum voltage of 250V. This makes it ideal for use in various electronic applications that require temperature sensing. The sensor is easy to install and provides accurate temperature readings, making it a popular choice for many different applications.
These features make the Thermistor Temperature Sensor ideal for use in various appliances, including Hot Water Kettle, KSD301, with a temperature range of 0~250°C.
| Circuit Resistance | ≤50mΩ (Initial Value) |
| Recovery and Action Temperature Difference | 0 To 25 Degrees, Or According To Client's Request |
| Action Temperature | 0~250℃ |
| Temperature Sensor Face | Aluminum Cap Or Copper Head |
| Life Cycle | ≥100000 Times |
| Temperature Deviation | ±3 / ±5 / ±10 Degree Or According To Client's Request |
| Contact Type | Normally Closed Or Normally Open |
| House | Plastic Or Ceramic |
| Mounting Bracket | Two kinds: Movable Or Immovable |
| Terminal Type | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series
Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
