| Categories | Custom Electrical Cabinet |
|---|---|
| Model Number: | Electrical Enclosure BH15615953 |
| Certification: | ISO9001, CE |
| Place of Origin: | China |
| MOQ: | 50 |
| Price: | USD28-68889 |
| Payment Terms: | T/T,Western Union |
| Delivery Time: | 15 Days |
| Packaging Details: | Carton |
| Usage: | Home / Industrial / Automation/Construction/Building |
| Weight: | Varies based on size |
| Ventilation: | Yes |
| Mounting Type: | Wall-mounted,Floor Mounted,Pole Mounting |
| Fireproof: | No |
| Waterproof: | Yes |
| Shape: | Rectangular |
| Number Of Shelves: | Adjustable |
| Number Of Doors: | Single/Double |
| Size: | Customizable |
| Material: | Metal |
| Lock Type: | Key lock |
| Color: | Grey/Others |
| Finish: | Powder Coated |
| Shelves: | Adjustable |
| Type: | Electrical Cabinet |
| Company Info. |
| Guangzhou Hengmeida Automation Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
| Attribute | Value |
|---|---|
| Usage | Home / Industrial / Automation/Construction/Building/Indoor Area |
| Weight | Varies based on size |
| Ventilation | Yes |
| Mounting Type | Wall-mounted, Floor Mounted, Pole Mounting |
| Fireproof | No |
| Waterproof | Yes |
| Shape | Rectangular |
| Number Of Shelves | Adjustable |
| Number Of Doors | Single/Double |
| Size | Customizable |
| Material | Metal / Stainless Steel |
| Lock Type | Key lock |
| Color | Grey/Others |
| Finish | Powder Coated |
| Type | Electrical Cabinet |

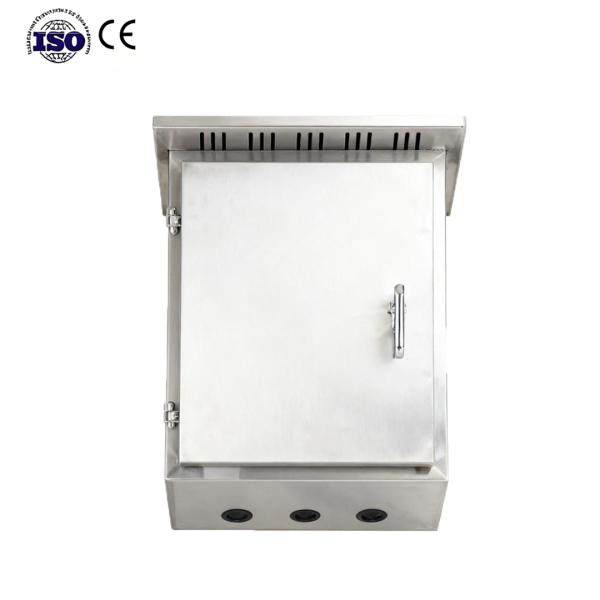

The IP66 Outdoor Electrical Cabinet is designed for reliable performance in harsh environments.
1. Outdoor power facilities
• Used for power distribution, substations, and external areas of
distribution rooms.
• Prevent adverse weather conditions such as rain, dust, and strong
winds from affecting electrical components.
2. Industrial automation control
• Automated control cabinets for production lines outside factories
and workshops.
• Suitable for environments with dust, humidity, corrosive gases,
etc.
3. Transportation and Municipal Infrastructure
• Highway lighting control, traffic signal lights, toll stations,
tunnel and subway electrical control.
• IP66 ensures long-term stable operation.
4. New energy and environmental protection industry
• Outdoor locations such as photovoltaic power plants, wind farms,
water treatment stations, etc.
• Can effectively protect the inverter PLC, Monitoring modules and
other equipment.
5. Building and park intelligence
• Outdoor sub control points for Building Automation (BAS), Park
Security, Lighting, and Air Conditioning systems.
• Ensure stable operation of weak/strong current control systems
outdoors.
6. Coastal and high humidity environments
• Ports, docks, offshore platforms, etc.
• The steel cabinet with anti-corrosion coating can resist salt
spray and moisture.
| HEIGHT(MM) | WIDTH(MM) | DEPTH(MM) |
| 400 | 300 | 200 |
| 500 | 400 | 200 |
| 600 | 400 | 200 |
| 700 | 500 | 200 |
| 800 | 600 | 200 |
| 1000 | 800 | 200 |
| Requirement Category | Core Requirements | Key Considerations |
| 1. Protection Level (IP Rating) | - Match IP rating to environment (IP54 for indoor dry; IP65 for outdoor/dusty/humid).- Ensure dustproof, waterproof, anti-corrosion. | Avoid component damage; meet on-site environmental standards. |
| 2. Dimension & Installation | - Fit internal parts (reserve 15-20% space for wiring/heat dissipation).- Support 35mm DIN rail, wall-mounted or floor-standing. | Easy internal installation; fit on-site space (e.g., narrow rooms need compact width). |
| 3. Material Selection | - Materials: Cold-rolled steel (1.2-2.0mm, indoor); 304/316 stainless steel (outdoor/corrosive); aluminum alloy (lightweight).- Surface: Powder coating (anti-scratch) or galvanizing (anti-rust). | Balance cost, durability, environment adaptability; ensure structural stability. |
| 4. Heat Dissipation | - Add vents (with dust nets) or fans if components generate heat (keep internal temp <40℃).- Design channels to avoid hot air accumulation. | Prevent overheating failure; avoid condensation in humid areas. |
| 5. Safety & Operation | - Lockable door, emergency stop (if needed).- Reserved cable holes (with rubber grommets) matching cable size/quantity. | Enhance safety; ease wiring and reduce cable wear. |
| 6. Compatibility & Expansion | - Reserve space for future modules.- Door opening ≥90° for easy maintenance. | Meet long-term expansion; simplify inspection/repair. |
| 7. Marking & Identification | - Clear labels (e.g., "Power Input") on door/panels.- Mark model, rated voltage, manufacturer info externally. | Improve efficiency; comply with electrical safety rules. |
|
