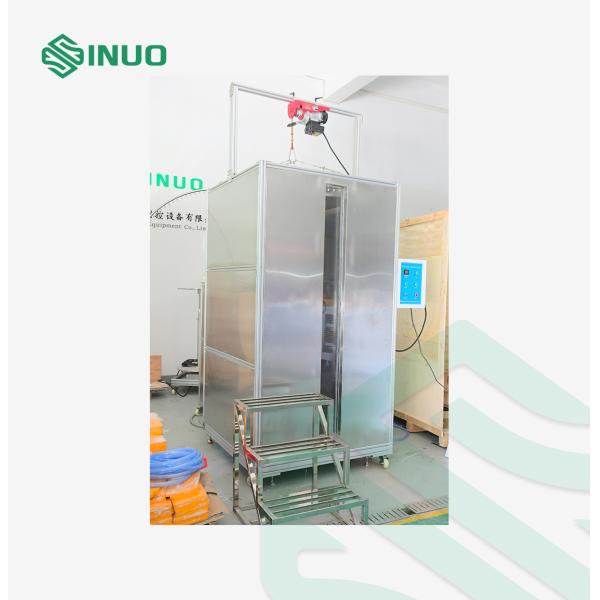

IEC60529 IPX7 Waterproof Immersion Test Equipment Soaking Immersion Test System

IEC60529 IPX7 Waterproof Immersion Test Equipment Soaking Immersion Test System

Complied Standards & Clauses

IEC 60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60598-1.

Equipment Overview

This equipment is designed for IPX7 waterproof testing, specifically simulating immersion conditions to evaluate the water resistance of products. By performing the test, it verifies whether the waterproof level of the product meets the required standards. It is widely applied in product development, design validation, quality assurance, and factory inspection, ensuring reliable performance and compliance with international safety regulations.

Technical Parameters

Test content	IPX7
Power supply	AC 220V,50Hz, 1KW
Max. test water depth	1.8m
External chamber material	Stainless steel plates + Aluminum profile frame
Observation window width	200mm
Chamber external size	Approximately W 1080* D 1080*H 2300mm (including casters)
Chamber inner size	Length 1000* W 1000* H1800mm
Water level adjustment method	Water inlet / drain valve, manual adjustment
Water level display	Scale (accuracy 1mm)
Test time	0.01 second-99.99hours can be preset
Inner chamber material	2.0mm thickness stainless steel
Electric lifting basket	Made of stainless steel, controlled by electric hoist
Control method	Buttons (non-PLC)
Immersion depth requirements	The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water
Observation window	Tempered glass (thickness: 12mm)

Details

---
