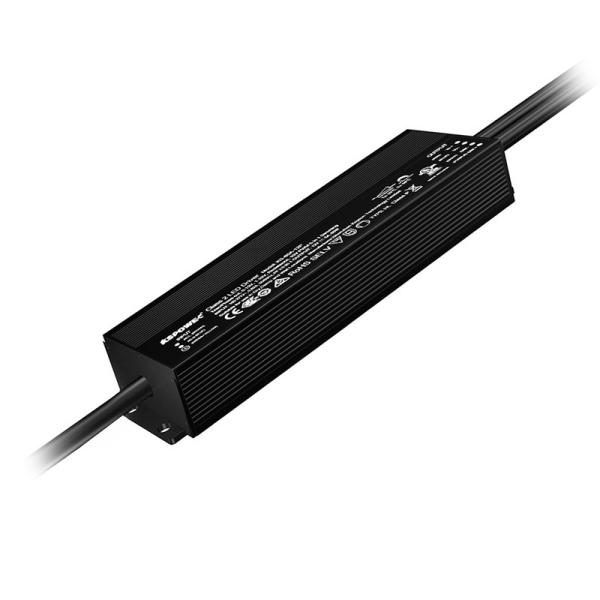

Linears 12v 180w Triac Dimming LED Driver With Flicker Free Pwm And Dimmable Led Driver

Linears 12v 180w Triac Dimming LED Driver With Flicker Free Pwm And Dimmable Led Driver

Linears 12v 180w Triac Dimming LED Driver With Flicker Free Pwm And Dimmable Led Driver
Linears 12v 180w Triac Dimming LED Driver With Flicker Free Pwm And Dimmable Led Driver
Categories Triac Dimmable Driver
Place of Origin: Guangdong, China
Brand Name: KSPOWER
Model Number: KSHP-180W12
Certification: UL FCC CE ROHS SAA CLASS P etc.
MOQ: 2 pieces
Price: $43.80/pieces 2-499 pieces
Warranty(Year): 5-Year
Lighting solutions service: Lighting and circuitry design
Output Power: 180W
Output Type: PWM
Input Voltage: 100-277V
Output Frequency: 50/60Hz
Output Current: 15000 mA
Product Name: 12v180w pwm dimmable LED driver
Dimming: Traic/ Phase-cut,0-10V,1-10V,10V PWM, Resistance (5 in 1)
Output: 12V 180W
Material: Aluminum Case
Warranty: 5 years
Protection: OCP, OVP, SCP, OTP
IP Rate: IP65, IP67
Efficiency: ≥89%
Application: LED Strip Light,Pendants, Linears,Cove Lights
Contact Now
Company Info.
Shenzhen Keysun Technology Limited
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Linears 12v 180w Triac Dimming LED Driver With Flicker Free Pwm And Dimmable Led Driver

Products Description
electron waterproof 12volts180 W Watt lighting transformers constant voltage 12v180w flicker free 5 in 1 pwm dimmable LED driver
KSHP-180W is a versatile 180W 5-in-1 universal dimming driver that accepts 100-277VAC input voltage and provides 12V 24V 36V 48V constant voltage output. KSHP-180W delivers flicker free dimming to 0% on all dinning systems including 0-10V, 1-10V, PWM, Triac/ Phase-cut ,Resistance, MLV, ELV and Incandescent. The high efficiency of the driver and sophisticated overload protection enables the electronics to run cooler and significantly improve reliability while extending product life. The compact metal case is dry/damp location listed and IP67 rated, making it suitable for a wide range of indoor/outdoor architectural, commercial, industrial, and residential lighting applications. KSHP-180W is available with or without integrated junction boxes on both the input and output side that have two knock outs each.
Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service
Input Voltage
100~277V AC 47~63Hz
Power Factor
PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.
KSHP-180W12
KSHP-180W24
KSHP-180W36
KSHP-180W48
Output Voltage
12V
24V
36V
48V
Rated Current
15A
7.5A
5A
3.75A
Rated Power
180W
Ripple & Noise (max.)
200mVp-p
250mVp-p
250mVp-p
250mVp-p
Dimension(L*W*H)
343*68*41mm / 13.5*2.68*1.83in
Show Details
Company Profile
Working Room
Specification:
Nearly ¥3 Million Is Spent On Certification, Just To Make Customers Trust Our Quality
Exhibition
Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package
Piece/Carton(pcs)
Piece Weight(KG)
OEM package
50
0.26
Dimension/Brown Box(mm)
Dimension/Carton(mm)
Gross Weight/Carton(KG)
155*85*35
455*370*175
14
FAQ
