5025-HD Automatic Diaper Liquid Impermeability Tester ASTM D646

Categories Paper Packaging Testing Instruments
Brand Name: Haida
Model Number: 5025-HD
Certification: CE、ISO
Place of Origin: China
MOQ: 1 set
Price: Negotiation
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300 Sets per Month
Delivery Time: 20 days after order confirmed
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Design Standards: ASTM D646, JIS P8124, QB / T 1671
Operating Method: Microcomputer Control
Minimum Readout: 0.1
Dropping Deviation: ±10mm
Load Resolution: 1/250,000
Testing Standards: ISO, ASTM, TAPPI
Drop Test: Corners, edges , faces of sample
Rated Bending Angle: ± 7.5 ° and ± 15 °
Usage: Packaging Testing
Plywood Size: H48in * D48in
Compressed Air: 6 kg/cm2
Test Load Options: 55g, 175g, 275g
Drive Mode: power-driven
Load Cell Resolution: 1/250,000
Company Info.
Hai Da Labtester
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

5025-HD Automatic Diaper Liquid Impermeability Tester ASTM D646

EQUIPMENT DETAILS OF 5025-HD AUTOMATIC DIAPER LIQUID IMPERMEABLE TESTER

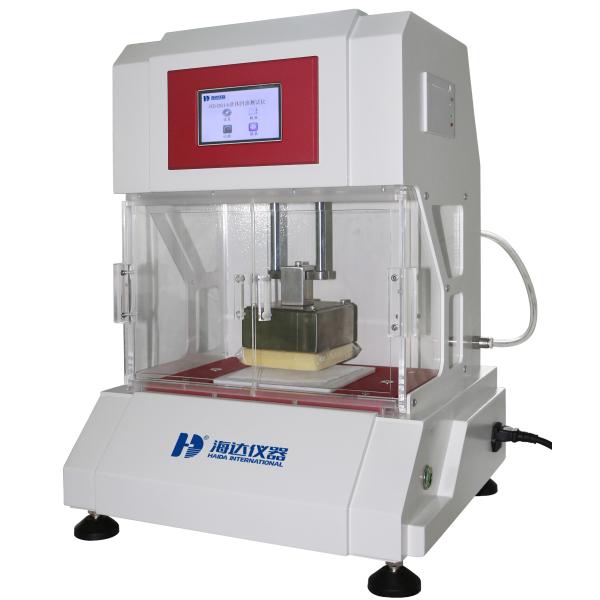

5025-HD Automatic Diaper Liquid Impermeable Tester
INTRODUCTION

Used to determine the amount of diaper covering material that resists the rewetting of the liquid that has penetrated

STANDARD

GB/T 24218.14 ISO 9073-14 WETBACK151.3-02

FEATURES
  • Touch screen control, Chinese and English menu, man-machine dialogue mode, convenient operation.
  • Built-in thermal printer is convenient for printing test results on site.
  • High-precision sensor with windshield, the test result is accurate to 0.001g.
  • Pneumatic components, when placing the simulated baby load, lift the sample to automatically complete the test.
  • Stepping motor and driver control to ensure that the speed meets the standard requirements.
  • The instrument has its own calibration function.
STANDARD FEATURES
Technical Index5025-HD
Simulated baby load weight and size4000g±20g (10x10cm)
Test range and accuracy300g/0.001g
Testing speed5cm/(5±1)s
Placement and dwell time can be set1~999s
Tray size170x170mm
DimensionsApprox:430 x 410 x 540 mm (LxWxH)
Weight51kg
Power source220V, 50Hz,100W
