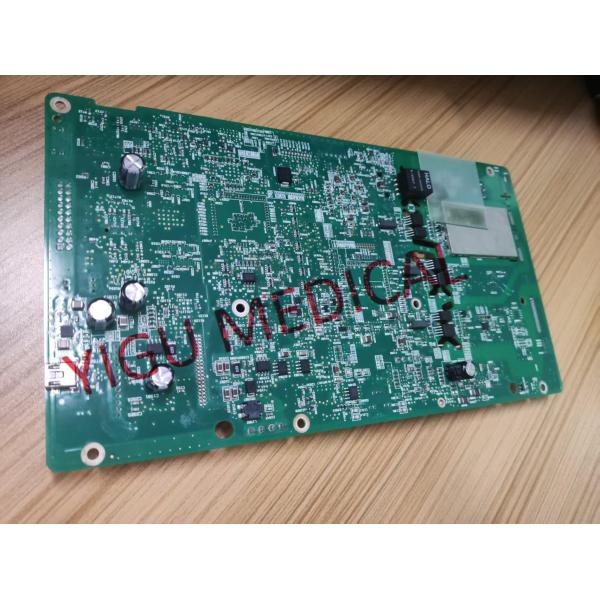

Efficia CM100 mainboard PN 453564365951 Patient Monitor mother board

Efficia CM100 mainboard PN 453564365951 Patient Monitor mother board

This mainboard is a critical component designed for specific medical-grade monitors, primarily those in the Efficia CM100 and CM12 Series Patient Monitors**.

---

Overview

The Efficia CM100 Mainboard (Part Number 453564365951) acts as the central nervous system of the patient monitor. It is responsible for processing data from various connected medical devices (like ECG, SpO2, NIBP, etc.), rendering the graphical user interface (GUI), managing system functions, and facilitating communication with other modules and external networks.

It's important to note that this is a highly specialized piece of medical hardware, not a consumer-grade computer motherboard.

Key Features and Functions

1. **Central Processing Unit (CPU):** The board features an integrated CPU (likely an Intel Atom or similar low-power, embedded processor) capable of handling the real-time data processing demands of a patient monitoring system.

2. **System Memory (RAM):** It includes soldered-on RAM modules to support the operating system and the simultaneous operation of multiple monitoring applications.

3. **Video and Display Control:** The board generates the video signal for the monitor's integrated LCD screen. It renders the waveforms, numerical values, and user interface that clinicians rely on.

4. **Connectivity and Interfaces:** The mainboard provides the physical and electronic interfaces for all other components within the monitor, including:
* **Module Slots:** Connectors for plug-in parameter modules (e.g., for invasive blood pressure, temperature, CO₂).
* **Internal Interfaces:** Ports for the front panel (keypad/buttons), backlight inverter, and internal speakers.
* **External Ports:** Typically includes ports for:
* **Network (RJ-45):** For connecting to a hospital's HL7/ICM network to transmit patient data to central stations and Electronic Medical Records (EMR).
* **USB Ports:** For service, debugging, and potentially data export.
* **VGA Output:** To mirror the display to an external monitor.
* **Serial Ports (e.g., RS-232):** For connecting to older peripheral devices.

5. **Storage:** It uses non-volatile flash memory to store the device's operating system, firmware, and configuration settings.

6. **Medical-Grade Design:**
* **Reliability:** Built to stringent standards for 24/7 operation in a critical care environment.
* **Safety:** Designed to meet medical safety standards (e.g., IEC 60601-1) for leakage current, electrical isolation, and flammability to ensure patient and operator safety.

Common Applications

This specific mainboard is used in the following patient monitoring systems:
Efficia CM100 Patient Monitor**
Efficia CM12 Patient Monitor** (and its variants, like CM12, CM12+)

These monitors are used in various hospital settings, including:
* Emergency Departments (ED)
* Intensive Care Units (ICU)
* Critical Care Units (CCU)
* Operating Rooms (OR)
* General hospital floors for step-down monitoring.

Importance of the Part Number (453564365951)

The Part Number (P/N) is crucial for several reasons:
* **Identification:** It is the unique identifier used by and medical parts distributors to ensure you get the exact correct replacement component.
* **Compatibility:** Using the exact P/N guarantees the board is compatible with your specific monitor model and software version.
* **Calibration & Compliance:** Medical components often come pre-calibrated or with specific firmware that is certified for use. Using an incorrect or non-genuine part can violate regulatory compliance and potentially create a safety risk.

In summary, the **Efficia CM100 Mainboard P/N 453564365951** is the essential computing heart of specific patient monitors, and its proper function is vital for patient safety and clinical workflow.
