Contitech Convoluted Suspension Air Spring FS 330-11 Industrial Bellows M10 Holes

Contitech Convoluted Suspension Air Spring FS 330-11 Industrial Bellows M10 Holes

The Features of AIRSUSTECH 1B5330

• This single convoluted air spring is manufactured from high-quality natural rubber with steel cover plates. It features a minimum compressed height of 55 mm, a maximum extended height of 160 mm, and a working stroke of 105 mm.
• For the 1B5330 model, the cover plate diameter is 231 mm, and the center-to-center distance is 140 mm. When the air pressure reaches 0.7 MPa, the maximum outer diameter of the rubber component reaches 325 mm.
• The industrial convoluted rubber air spring operates via gas filling. Its air connection is G1/4, and the screw nut size is 2×M10×1.5.

1B5330 Cross References

G1/4 air inlet with M10 threaded holes:

1/4NPTF air hole with 3/8-16UNC threaded holes:

1/4NPTF gas hole with 3/8-16UNC threaded holes, bumper:

The Pros of AIRSUSTECH Convoluted Air Springs

1. Features: One-piece molding, high airtightness, high surface density, and fracture resistance.
2. Installation: Dimensions are identical to those of the original model, allowing for direct replacement without modification. Easy installation.
3. Quality: Advanced technology improves product performance and extends service life.

Precautions for Installing AIRSUSTECH Airbags

- Before installing the air bellow, check it carefully for any damage it may have suffered from transport or improper storage.
- Do not inflate the air bellow until it has been secured properly.
- Deflate the air bellows fully before removing.
- Ensure that the bellows is not constantly in contact with hydraulic oil, lubricants, solvents, metal cuttings and welding sparks.

AIRSUSTECH Support and Services

The Suspension Air Springs product technical support and services include:

• Expert troubleshooting assistance to diagnose and resolve technical issues
• Guidance on proper installation and maintenance procedures
• Product documentation, including user manuals and technical specifications
• Product training and education for customers and service technicians
• Warranty and repair services, including replacement parts and exchange programs
• Customer support for urgent technical issues or service needs

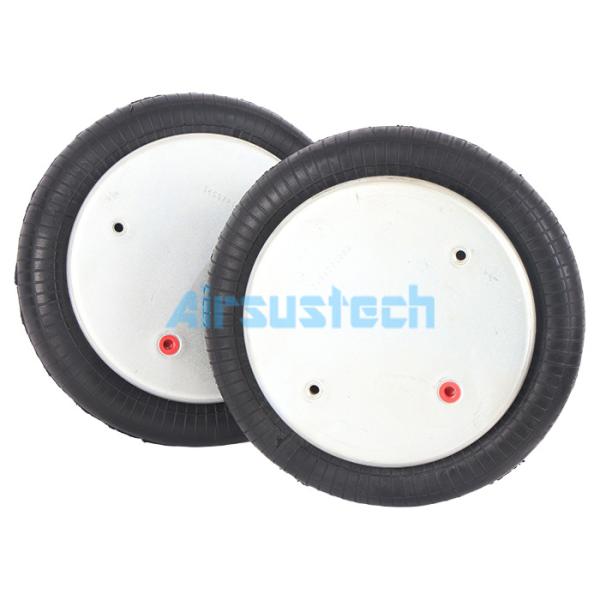

The Related Photos of 1B5330 Air Bellows

Our Technicians Measure the Air Suspensions

Production Equipments

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
