High Precision Fire Hose Quick Connector for Explosion Proof Robots Custom CNC Machining China

High Precision Fire Hose Quick Connector for Explosion Proof Robots Custom CNC Machining China

High Precision Fire Hose Quick Connector for Explosion Proof Robots Custom CNC Machining China
High Precision Fire Hose Quick Connector for Explosion Proof Robots Custom CNC Machining China
Categories CNC Mechanical Parts
MOQ: 100
Price: 10-20
Payment Terms: L/C,D/A,D/P
Supply Ability: 10000
Delivery Time: 5-9
Test Equipment: Japan Keyence IM7000
Material Capabilities: Stainless Steel
Diameter: 0.325inch, 0.13inch
Oem Service: Acceptable
Size: Customized
Quality: 100% Inspection
Coaxiality: ±0.01mm
Processing: CNC machining,CNC milling,CNC turning
Service: OEM/ODM/Customized/Design
Design Software: Pro/E, Solidworks, UG
Type: Drilling,Other Machining Services
Delivery Port: Shanghai
Parallelism Tolerance: ±0.02mm
Warranty: 1 Year
Casting Method: Die Casting
Contact Now
Company Info.
Sinbo Precision Mechanical Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

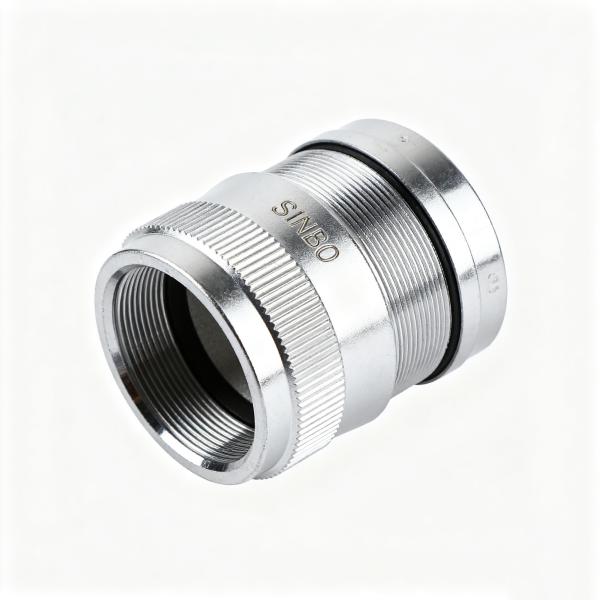

High Precision Fire Hose Quick Connector for Explosion Proof Robots Custom CNC Machining China

Product Description

The fire hose quick connector is a critical mission-specific module for special robots, designed for high-risk environments such as explosion-proof, rescue, and aerospace operations. Manufactured from full brass through CNC machining centers (e.g., VMC1060 series with 0.02~0.03mm precision), it ensures quick connection and reliable sealing. This connector enables rapid coupling between hoses, fire trucks, hydrants, or water guns, reducing connection time to 7.8 seconds (80% faster than traditional methods), significantly enhancing robot response efficiency in firefighting tasks.

Features
  1. Quick Connect/Disconnect: Leveraging internal claw grooves, it connects with a 90° clockwise rotation and disconnects counterclockwise, enabling tool-free operation.
  2. High Sealing Performance: Multi-layer sealing structure (rubber seals, seal seats, and grooves) prevents leakage under high pressure.
  3. Full Brass Construction: Corrosion-resistant and durable, suitable for high-temperature and high-pressure environments, compliant with GB12514.1-2005 standards.
  4. Modular Compatibility: Integrates seamlessly with various hose specifications (DN50/65/80/100) and robot platforms via quick-swap design.
  5. Explosion-Proof Design: Certified for flammable and explosive environments through structural and electrical safety standards.
Technical Parameters Table
Parameter CategoryValueRemarks
ModelKD50/65/80/100Multi-caliber hose compatibility
MaterialFull BrassHigh strength, corrosion-resistant
Working Pressure≤2.5 MPaMeets high-pressure firefighting demands
Connection Time≤7.8 secondsTraditional methods take 36s
Sealing PerformanceZero LeakageMulti-layer seals (rubber + metal seat)
Operating Temperature-40°C~120°CExplosion-proof and flame-retardant
Machining Precision0.02~0.03mmCNC precision (VMC1060-based)
CertificationGB12514.1-2005, CCCFChina compulsory fire product certification
Applications
  • Firefighting Robots: Integrated into tracked fire reconnaissance and extinguishing robots for remote water supply, replacing humans in toxic or high-temperature environments.
  • Explosion-Proof Robots: Deployed in petrochemical or coal mine settings for rapid cooling or fire suppression.
  • Aerospace & Military Equipment: Facilitates quick fluid transfer in launch sites or military rescue robots.
  • Urban Emergency Rescue: Compatible with smart security robots for tunnel and confined space firefighting.
Customization Services

Custom designs tailored to robot platform requirements:

  • Size Adaptation: Supports non-standard hose diameters (e.g., DN40/DN120) or spatial layouts.
  • Material Upgrade: Options include stainless steel or aluminum for lightweighting or enhanced corrosion resistance.
  • Functional Expansion: Sensor interfaces (e.g., pressure monitoring, auto-release) for smart robot integration.
  • Rapid Prototyping: Small-batch production via CNC machining centers (e.g., VMC1160) with lead times of 2-4 weeks.
Support and Services
  • Technical Consultation: Guidance on robot integration, including hose storage mechanisms and sealing optimization.
  • After-Sales Warranty: 13-month warranty, lifelong maintenance, with spare parts and on-site debugging.
  • Global Supply: OEM/ODM cooperation supported, with ISO 9001-certified production lines.
Product Tags:

fire hose quick connector CNC machining



explosion proof robot hose connector



custom CNC machined hose fittings
