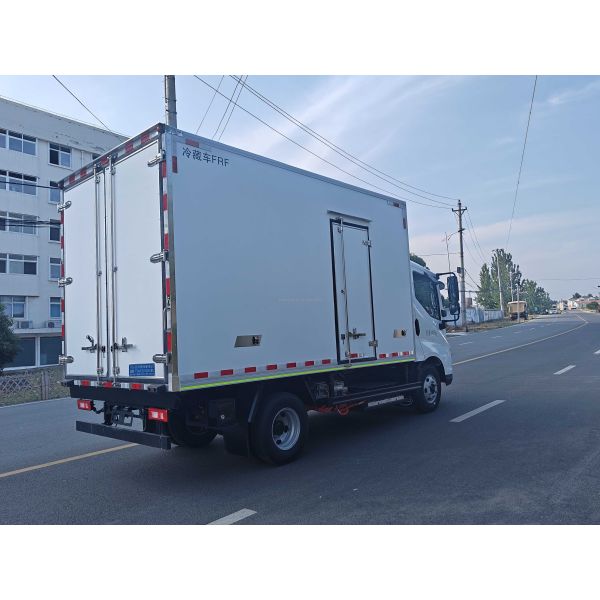

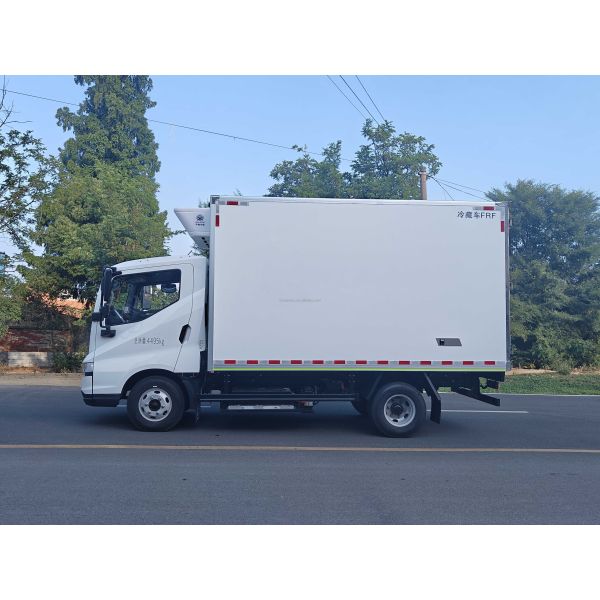

Electric Refrigerated Box Truck 4*2 Diesel for Frozen Meat and Chicken Energy type Pure Electric

Products Description

Product Paramenters

Vehicle technical parameters
product name	Pure electric refrigerated truck	product model	HTT5040XLCBEV
gross mass (Kg)	4495	Production address	Suizhou City, Hubei Province
Rated load mass (Kg)	1115,1050	outline dimension (mm)	5998×2260×3380
curb weight (Kg)	3250	axle weight	2995/7000
Number of cab members (person)	2,3	number of axles	2
Approach angle / departure angle of (°)	16/35	Front suspension / rear suspension (mm)	1135/1500
wheel base	3360	Top vehicle speed (Km/h)	100
Chassis technical parameters
Chassis model	BYD1041A3BEVC2	Chassis brand	Pure electric truck chassis
number of axles	2	Number of tires	6
tyre size	7.00R16LT 10PR
Number of steel plate spring sheets	3/5+6,3/5+7,4/5+6,4/5+7,5/5+6,5/5+7
front gauge (mm)	1690	rear track (mm)	1570
Fuel types	Pure electric	ABS	have
Chassis wheelbase	3300,3850	Battery brand	Ningde era
rated capacity	245.5V	Rated / peak rotation speed (rpm)	5730/12000
refrigerating output	4400W	The loading consumes power per hour	20KWH
Maximum power (kW)	150KW	Driving range (km)	275
power rating	70KW	Charging time (min)	50
engine type		displacement (ml)	power (Kw)	horsepower
TZ200XSY			150	205
After-sales service: If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you.

Company Profile

Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D and manufacturing and sales and import & export trading of special truck and truck accessories. It is a “ national high-tech “ enterprise and “ SRDI” enterprise. Our company was founded in February 2009 , located in Suizhou Hubei province which is the hometown of Yan Emperor and ancient music of chimes, and it is the capital of special trucks in China. Huate main products: dangerous goods tank truck series, tank container series, chemical storage tank series, dangerous goods van series, refrigerated truck series, testing vehicle series, emergency rescue vehicle series, engineering vehicle series ,sanitation vehicle series, special vehicle parts series, used truck trading and other subdivision products. We have professional technical team, strong and experienced management team, efficient domestic and overseas sales team . Huate products not only lead the domestic advanced level, but also towards the international market, forming a diversified and serialized product pattern. Huate is driven by innovation , market-oriented and brand-led . It constantly improve product quality and management level, our company has fully passed the GB/T19001-2016 idt ISO9001:2015 quality system certificate and GB/T24001-2016 idt ISO14001:2015 environmental system certificate and GB/T45001-2020 idt ISO45001:2018 occupation health safety system certificate .Our products has passed international 3C compulsory certificate and tank container CCS certificate , with a number of invention patents . We have participated in the drafting of various national standards and industry standards. The company adheres to the business philosophy of "Create industry quality products. Strive to be an industry pioneer" , based on the design and manufacturing of intelligent and digital core components, we provide clients with intelligent solutions. With its differentiation and cost-effective advantages, we provide users with superior and mutually beneficial and win-win cooperation platform. Currently our products have been exported to Africa Middle East Southeast Asia America Europe more than 30 countries , well received by domestic and foreign users with favorable comments .

Manufacturing Technique

Certifications

Customer Photos

Project Show

Product packaging

FAQ

Q1. Payment term.
T/T ,30% as despite ,and 70% before delivery from factory.
L/C, L/C price is higher than T/T price
We will show you photos and video of the finished truck before you pay the balance.

Q2. Terms of delivery
EXW, FOB, CFR, CIF, DAF ,FCA ,DDU.DAP etc .
We mainly do FOB,CIF,DAF

Q3. Delivery time
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
(if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to
contract .)

Q4. Quality and warranty
We have Rich experience workers and engineer to control quality before and on production , we strictly follo STATE special trucks
technical specification and safety production specification . we 100% test trucks before delivery.
Our Warranty :12 months
We will provide the spare parts for free in one year.

Q5. How to trust us ?
Our company pass BV factory audit,And you also can arrange a third party inspect our factory.
We have been in this line for over 15 years, dealing with all kinds of trucks.

Q6.Visit our factory
Our factory are in suizhou city,hubei province, china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province,near our factory) .and our driver
will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter ,pls send your private information and company information to me.

Electric Refrigerated Box Truck 4*2 Diesel for Frozen Meat and Chicken Energy type Pure Electric

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Hubei Huate Special Equipment Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Refrigerated Box Truck
Place of Origin:	Hubei, China
Price:	$24,000/units 1-9 units
Product name:	Dust suppression vehicle
Energy type:	Pure Electric
Color:	Custom's Requirement
MOQ:	1
Packaging Details:	Wooden box
Delivery Time:	7-30 days
Payment Terms:	T/T
Supply Ability:	Meet large-scale orders
