Carbon Steel 245 Chemical Liquid Tank Semi Trailer With 2 Axles 5000L Fuel Tank Trailer

Categories Tank Semi Trailer
Place of Origin: Hubei, China
Brand Name: HUATE
Price: $5,000/sets 1-9 sets
Use: Truck Trailer
Type: Semi-Trailer
Material: Carbon Steel, Carbon Steel 245
Size: 6050 x 2430 x 2590 mm, 6050 x 2430 x 2590 mm
Max Payload: 25001-30000 kg
Product name: Chemical Liquid Tank Semi Trailer
Storage: Chemical Liquid ,Gasoline, Kerosene, Diesel and Jet Fuel
Axle: 2/3/4 Axle
Tire Specification: 11.00R20 12PR 12R22.5 12PR
Color: Customer's Request
Loading capacity: 0-10 T
MOQ: 1
Packaging Details: Wooden box
Delivery Time: 7-30 days
Payment Terms: T/T
Supply Ability: Meet large-scale orders
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

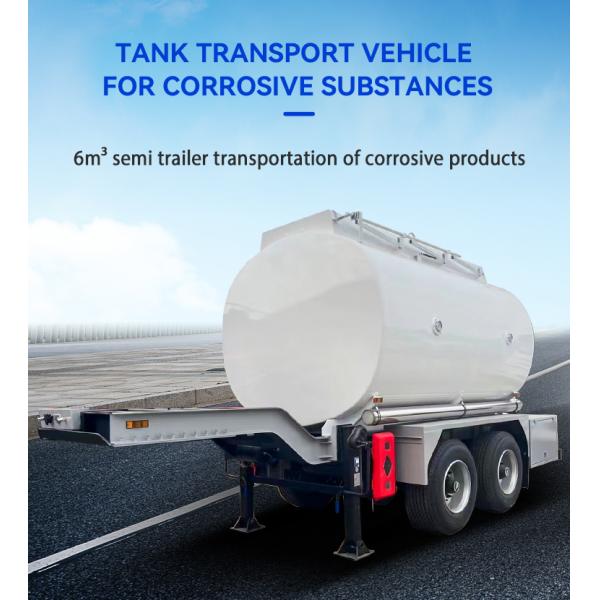

Carbon Steel 245 Chemical Liquid Tank Semi Trailer With 2 Axles 5000L Fuel Tank Trailer

Products Description
Chemical Tanker Trailer is also known as tanker, highway tanker, etc. It is mainly used for transportation and storage of oil products or chemical liquid
The tank body of fuel tanker trailer can be made of different materials such as aluminum, carbon steel, and stainless steel.
The tank is built with multi-channel reinforced anti wave baffle plate, and the lower end of the baffle plate is designed with
through holes to reduce the impact of fuel in the tank and improve the strength of the tank.
The combined tank opening is located at the top of the tank body. A self-locking small cover is arranged on the large cover, and a breathing valve is installed on top of the large cover to ensure the consistency of atmospheric pressure inside and outside the tank. There is also the electrostatic grounding wire. Installed fuel pump system allows the fuel tanker trailer to self-prime and self-drain. Two separate pumping pipes are included along with a suction lift, two fire extinguishers, and too
Product Name
Chemical Transport Tank Semi Trailer
Overall dimensions
6050×2430×2590(mm)
GVW
4000Kg
Tank capacity( CBM )
6
Medium
Chemical Liquid ,Gasoline, Kerosene, Diesel and Jet Fuel
Tank body thickness(mm)
Carbon Steel 5mm Steel
End plate
Carbon Steel 6mm Steel
Compartment
As Customer Need
Chassis brand
HUATE
Approach/departure angle
/19°
Tire specification
11.00R20 12PR,12R22.5 12PR
Transmission
Manual
Axle Number
2,3,4 As Customer Need
Axle Brand
BPW/FUWA/ZY/ L1/HO’S/ SAF/ PDME,13ton Axle
Manhole covers
As Customer Need
Discharge Valve Vox
Totally-enclosed
Spill Discharges
1at the rear
Bottom Valve
1 Set
Rear Ladder
Dismountable
Walkway
On the top
Top Ladder
Standard
Pedal
Anti-Skid Pedal
Color and Logo
As Customer Need
Standard Configuration
Chassis,Arc-shaped Body,Sub Frame,Rear Lifting Part,Loading Bunker,Pushing-out Plate,Sewage Tank,Climbing Ladder
Selective Configuration
Multifunctional Rear Lifting Part,Rear Handrail and Footplate,Other shapes of body etc.
