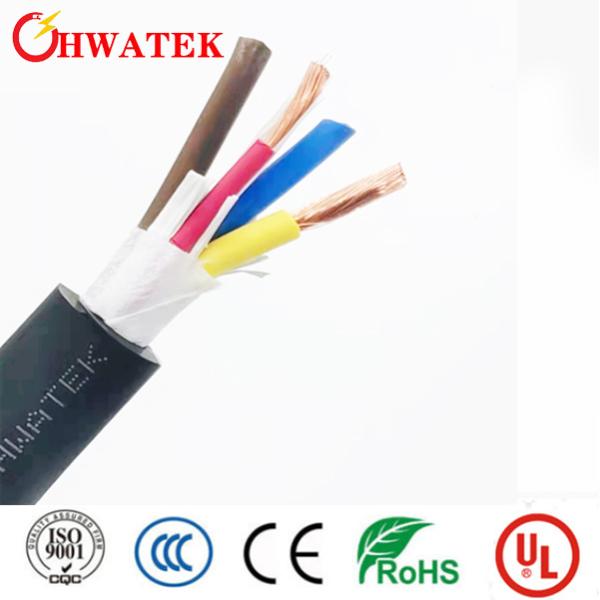

UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable

Categories Industrial Flexible Cable
Certification: UL
MOQ: 1000
Price: negotiable
Brand Name: HWATEK
Model Number: CL2
Place of Origin: China
Payment Terms: T/T
Supply Ability: 1000KM/ month
Delivery Time: 4 Weeks
Packaging Details: Reels or rolls
Rated voltage: 150V
Rated temperature: 75ºC
Conductor material: Bare copper stranded
Conductor size: 16/0.254mm
Insulation material: SR-PVC
Insulation thickness: 0.23mm
Min insulation thickness: 0.2mm
Outer diameter: 1.70±0.10mm
Jacket material: PVC
Jacket thickness: 0.84mm
Min jacket thickness: 0.66mm
Cable outer diameter: 6.00±0.30mm
Max DC resistance: 21.4Ω/km
Tensile strength: ≥10.3MPa
Elongation: ≥100%
Spec: HT2504808
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

UL13 Power Limited Circuit Cables Type CL2 Bare Copper Stranded Conductor unshield 150 V 75 degree 4 cores 18 AWG cable

SPECIFICATIONCABLE NAMEEV CABLE
CABLE SPEC3Cx2.5mm2+1Cx0.75mm2+W
RoHS  Compliant
ITEMA : 3C×2.5mm2B : 1C×0.75mm2
CONDUCTORMaterialBare copper stranded
Size136/0.15mm+10/1#copper foil+1000D Vectran40/0.150+10/0.19mm copper foil+200D Vectran
O.D.(Ref)2.10mm1.30mm
INSULATIONMaterialTPETPE
Nom. thickness0.80mm0.50mm
Min.thickness at any point0.62mm0.35mm
O.D. 3.70±0.15mm2.50±0.15mm
CABLINGFillerPP rope
MaterialNonwoven tape
Assembly3Cx2.5mm2+1Cx0.75mm2+W
JACKETMaterialTPE
Nom. thickness1.90mm
Min.thickness at any point1.51mm
O.D. 13.80±0.30mm
ELECTRICAL CHARACTERISTICSPHYSICAL PROPERTIES
Rated voltage:450/750V Tensile strength:≥10MPa
Rated temperature:75ºCElongation:≥250%
Max. DC conductor resistance(20ºC):High temperature and pressure:(80±2ºC×4h) ≤50%
                       A: 7.98Ω/km   B: 26Ω/km  Flame test : GB/T 18380.12
Voltage withstand test:A: AC  3.5kV/15minUV Resistance : 720h CQC1103-2015
                                       B: AC  1.5kV/15min
Company Profiles
Founded in 2004 with 16 years of development, we Hwatek established our new plant Nantong Hwatek Wires & Cable Co., Ltd in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.
We are dedicating to R&D and produce various wires and cables like industrial control, communication instruments, medical control, green energy EV and special wires and cables etc. OEM & ODM is also available.
Our Nantong Plant has passed ISO9001, ISO14001, IATF16949, ISO13485 quality system certification. All the ranges of our wires and cables are CCC, UL, CUL, CE, CSA or ETL qualified. With the company principle 'Profession, Integrity, Eco Friendly and Win-win', we are equipped with a comprehensive sales network to serve customers in various fields around the world.

Our Competence at
1. Produce Cables with Following Insulation & Jacket PVC, SR-PVC, XL-PVC(CL PVC), XLPE, FRPE, TPE, FEP Etc.
2. Produce Cables with Temperature Range from -40 to 200 Degree Temperature.
3. Produce Cables with Volatge Range from 30V to 1200V DC.
4. Flamability Rating - VW-1, FT1, FT2.
5. We have 300 Plus different UL Style approval from UL Authority.
6. QMS Certification- ISO9001-2015, IATF16949-2016, ISO13485-2016.
7. Product Certification -CCC, UL, CSA, ETL, CE.
8. We can support drop-in equivalent to any Brand of Cables and Custom made Cables.

Certificates


Production Progress
Shipping
FAQ

1.Q:What can you supply?
   A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
   A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
   A:
Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
   A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
   A: Always a pre-production sample before mass production and final Inspection before shipment.
