China Manufacturer Power Cable Identification Instrument

XHSB505A

Product Description

Product Description

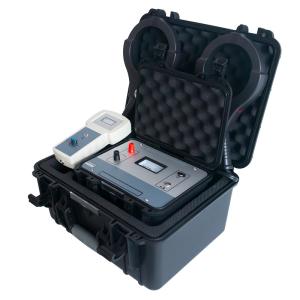

XHSB505A cable identifier adopts variable frequency pulse power supply and uses the principle of electromagnetic induction to accurately identify cables that are unlive or in operation. There are two functions for measuring voltage, current and frequency, and there are two output methods: direct connection method and coupling method.

Identification of non-powered cable:

The transmitter's primary function is the generation of a unique pulse signal. This pulse signal is subsequently introduced into the cable under identification via a connecting line. Owing to the principle of electromagnetic induction, an induction signal, which corresponds to the pattern of the transmitted signal, will be generated along the cable. At the testing site, a highly sensitive receiving clamp, in combination with a handheld receiver, is deployed to detect all the cables present. By following the indication provided by the handheld receiver, the cable that has been exposed to the signal (namely, the unpowered cable to be identified) can be precisely located.

For the identification of powered cables: The transmitter's main duty is to generate a particular pulse signal. This signal is introduced to a specific point of the powered cable to be identified through a special transmitting clamp. Based on the principle of electromagnetic induction, an induction signal that matches the pattern of the transmitted signal will be generated along the cable. At the testing site, a highly sensitive receiving clamp and a handheld receiver are utilized to detect all cables in the area. Following the indication of the handheld receiver, the cable that has been subjected to the signal (that is, the powered cable to be identified) can be accurately detected.

Parameters:
★Recognition method judge by the swing direction of the pointer
★Jaw Φ125mm
★Output voltage ±300V
★Pulse current 0~15A
★Instantaneous power 180W
★Power supply 12VDC lithium battery for signal generator, AA battery for handheld receiver.

Features

*Accurate identification
*Large identification jaws suitable for all kinds of cables
*Extremely simple operation
*Clear and intuitive instructions
*Main and auxiliary parts are portable and beautiful
*The receiver has adjustable signal strength
*Both live and non-live cables can be tested
*Small and portable, light weight

Packing list

Transmitter	1 set
Receiver	1 set
Charger	1 set
Output line - red	1 set
Output line - black	1 set
Transmitter clamp	1 set
Receiver clamp	1 set
Batteries	2 sets
