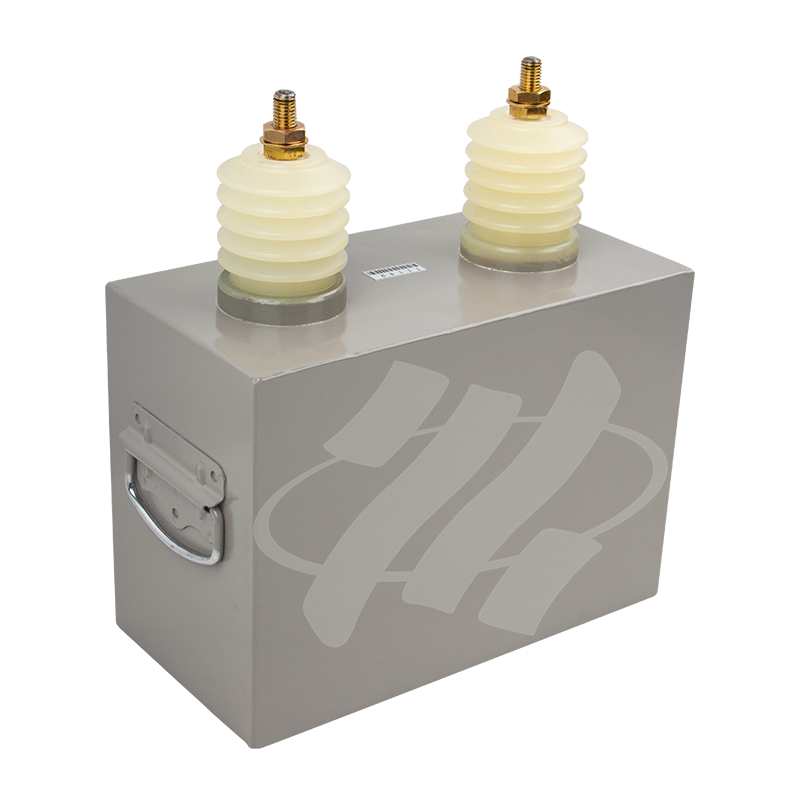

Pulse Energy - Capacitors with Rated voltage 6UF

XHCC-6/35

Overview

Pulse energy storage capacitors utilize imported film and a non-inductive winding structure, offering excellent self-healing and explosion-proof properties. They feature a reliable structure, are leak-proof, pollution-free, moisture-proof, fire-resistant, and have a long lifespan, small size, and light weight.

Applications

Pulse energy storage capacitors store energy from a low-power source by charging the capacitor over a certain time interval. At the required moment, the stored energy is rapidly released in a very short time interval, generating a powerful surge current and high impulse power. They are mainly used in high-voltage impulse discharge testing, high-energy physics, oscillation circuits, geological exploration, and other fields.

Technical Parameters:
Ambient temperature: -20 to +50℃;
Altitude: ≤2000 meters (specifications for altitudes above 2000 meters will be provided separately);
Capacitance tolerance: ±5%;
Rated capacitance: 6uF
Rated voltage level: 35kV

Precautions and Common Faults
1. Avoid impacting or bumping the pulse energy storage capacitor, as this may easily damage the internal film.
2. When using the pulse energy storage capacitor, please read the instruction manual and the capacitor label to prevent overvoltage use.
3. During use, pay attention to the voltage rating of the connecting wires and the safety distance.
4. After the test is completed, the high-voltage terminal must be fully discharged.
5. If there is an abnormal sound inside the capacitor during use, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If the capacitor casing bulges or protrudes, it is recommended to stop using it, as there is a risk of internal material deterioration and reduced insulation.

After-Sales Service
The instrument is covered by a free one-year warranty from the date of purchase for product quality issues, and lifetime repair and technical services are provided. If you find that the instrument is not functioning properly or has a fault, please contact us in time so that we can arrange the most convenient and effective solution for you.

If you are interested in this type of equipment, please feel free to contact us. We also accept customized services.
