SHR618 Flat Plastic Bottle Hot Stamping Machine For Cosmetic And Liquor Industry

SHR618 Flat Plastic Bottle Hot Stamping Machine For Cosmetic And Liquor Industry

Catalog 03_compressed.pdf

SHR618 is suitable for hot stamping round, oval, square and many shapes of bottles, lids, cans and tubes. It is widely used in cosmetic industry, liquor industry.

• Configurable automatic descrambler feed
• Equipped with PLC and touch screen control panel
• The machine adopts integrated turntable design, which is fully functional and easy to operate.
• The machine adopts well-known brand electrical components, PLC control system and easy-to-use touch screen for reliable performance.

Technical Specifications:

Machine Features:

Automatic Feeding System

The machine can be installed according to customer's needs and equipped with a variety of automatic feeding systems, such as vibrating disk and rotary feeder.

Surface Treatment System

The machine can be individually equipped with a surface treatment system as per customer requirements, which effectively addresses surface treatment needs of various plastic products (e.g., PET, PP materials). It features easy operation and can meet diverse application demands.​
Prior to printing on plastic products, surface treatment is generally necessary—this process breaks down the surface molecular structure and significantly enhances the adhesion of printed patterns, ensuring long-lasting pattern adherence. Specifically, there are two common surface treatment processes compatible with the machine: one is flame treatment, and the other is corona treatment, both adaptable to different plastic surface characteristics.

Componentless No-Print System and Adjustable Print Head System
When the fixture reaches the printing position, the printing system will not work if the machine finds no product on the transfer.

Depending on the product, the printing head stroke and the angle of the initial printing action can be adjusted to achieve the best printing results.

UV Curing Systems/LED Curing Systems

Customers can choose different curing systems according to their needs.

UV curing technology is mature, low lamp replacement cost and low maintenance cost.

Compared with traditional high-pressure mercury lamps, LED curing is characterized by soft light output, long life, energy saving, safety and environmental protection, wide irradiation area, small space occupation, and uniform light spot, but its disadvantage is high maintenance and replacement costs.

Applications:

SHR618 Series Flat UV Screen Printing Machine is a semi-automatic flat UV screen printing machine. Its application focuses on small-sized workpieces, mainly suitable for screen printing on small round cans (e.g., small metal round cans, small plastic round cans), small containers (such as mini plastic containers, small glass containers) and small flat lids (like small metal flat lids, small plastic flat lids).​
With UV curing function, it ensures fast pattern drying and strong adhesion, well adapting to the surface printing needs of these small workpieces, and meets the production requirements of industries like food, cosmetics, and daily chemicals for small-package printing.​

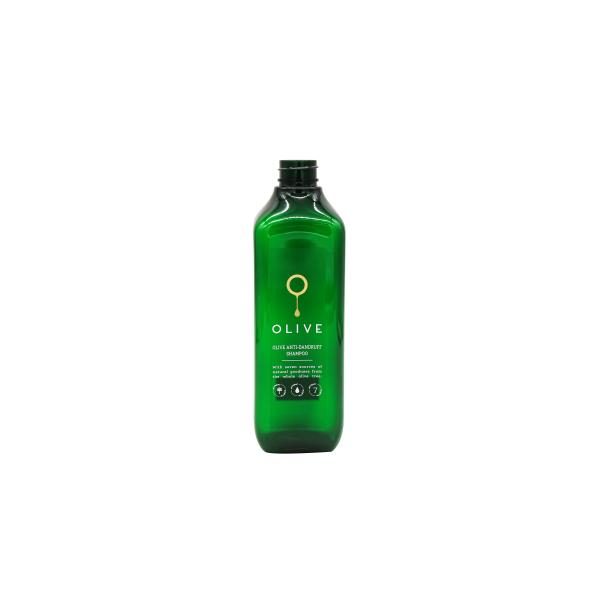

Printing sample

About us:

SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.

SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.

In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.

With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.

Dongguan Senny Printing Equipment Co., Ltd was founded in the year of 2004, and registered HongKong Senny Holding Co., Ltd in 2013. We have a great engineering team, who has engaged in mechnical & electrical automachine designing, parts processing, equipment assembly and debugging for more than 20 years. To provide high-quality products and services, we have a number of presision CNC and other processing equipment. All machines are made of world brand electrical components and materials.

With years of development, Senny can provide premium quality automatic screen-printing machine, labelling machine, pad printing machine, hot-stamping machine and other printing packaging and services according to customers' special products and demands.
