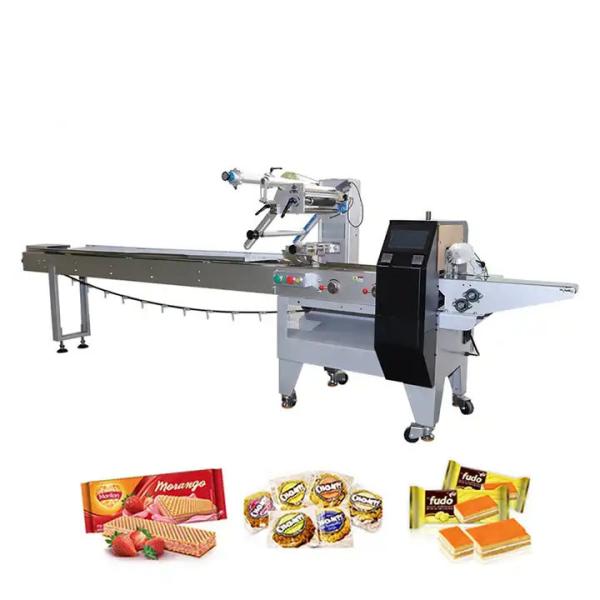

Servo Motor Temperature Control Flow Wrapping Machine
Frequency Conversion Control Flow Wrapping Machine with
Moisture-Proof Sealing Packaging for puffed food, nuts, and dry
goods.
HFFS Horizontal Flow Wrapping Machine
Working Principle and Operational Technical Guide
Core Working Principle
The horizontal flow wrapper achieves horizontal packaging for
block, strip, granular, and other materials through a continuous
automated process of "film transport - formation & filling - heat
sealing & cutting". Its core logic is to shape the film into a
pillow-shaped bag, synchronously complete material conveying and
filling, bag sealing, and fixed-length cutting, and finally form a
"pillow-style" packaged product with sealed ends and bonded sides.
It is suitable for mass packaging of various products in food,
daily necessities, pharmaceutical, and other industries.
Analysis of Key Operational Technologies
1. Film Transport Mechanism
Film transport is the fundamental link to ensure packaging
accuracy. It relies on dual controls of servo drive and
photoelectric positioning to guarantee stable film operation and
precise positioning:
- Servo Drive Speed Control: After the roll film is unwound via the guide roller, the servo
drive system precisely controls the film transport speed, with a
tension control accuracy of ±0.5.
- Photoelectric Color Mark Correction: A high-sensitivity photoelectric sensor continuously monitors the
printed color marks on the film, controlling the alignment error
between the printed pattern and the bag within ±0.3mm.
2. Formation and Filling Stage
This stage realizes the synchronous connection of "film-to-bag
conversion + material bagging", with the core focusing on formation
stability and material transport synchronization:
- Film Formation: Guided and shaped by the former, the film is folded and pressed
into a cylindrical bag structure with open ends.
- Synchronous Material Filling: The synchronous conveyor belt gently feeds materials into the
cylindrical bag at a speed matching the film transport speed.
3. Heat Sealing and Cutting Unit
Heat sealing and cutting are crucial for ensuring package tightness
and finished product integrity:
- Vertical Heat Sealing: The vertical sealing device adopts constant temperature control
technology, with the temperature adjustable within 150-200℃.
- Horizontal Sealing & Cutting: Integrates dual functions of "sealing + cutting" with adjustments
for temperature and pressure.
Technical Specifications
| Model | WZ-220(single jaw) | WZ-220(double jaws) | WZ-220(triple jaws) |
|---|
| Package Length | 120-300 mm | 60~200 mm | 45~100mm |
| Package Width | 35-80 mm | 35-80 mm | 35-70 mm |
| Package Height | 5-35 mm | 5-35 mm | 5-30 mm |
| Packing Speed | 30-150 bags/min | 30-250 bags/min | 30-450 bags/min |
| Packing Film type | PP,PVC,PS,EVA,PET,PVDC+PVC,OPP+(RECOMBINATION)CPP |
| Type of power supply | 220V 50HZ |
| General power | 3.1 KW | 3.8 KW | 4.5 KW |
| Weight | 360 Kg |
| Dimension | 4000x 930x1370 mm |
Product Application
The HFFS horizontal flow wrapping machine serves diverse industries
with its versatile packaging capabilities:
- Food packaging: Candies, biscuits, chocolates, pastries, frozen foods and
quick-frozen foods
- Medical product packaging: Medicines, health products, medical devices and medical
consumables
- Cosmetic packaging: Facial masks, lotions, shampoos, shower gels and other cosmetic
products
- Daily necessities packaging: Detergents, shampoos, shower gels, soaps, and personal care
products
- Agricultural product packaging: Seeds, fertilizers, pesticides with moisture-proof protection
- Electronic product packaging: Electronic components, accessories and small electronic devices
Product Advantages
- Productivity Enhancement: High-speed packaging capability meets high-volume manufacturing
demands
- Versatility: Adjustable packaging solutions for products of various shapes and
sizes
- Aesthetic Packaging: Delivers tidy and visually appealing packaging results
- Freshness Preservation: Flow wrapping technique maintains product quality and extends
shelf life
- Resource Efficiency: Optimizes material utilization, reducing waste and packaging costs
- User-Centric Interface: Intuitive controls simplify operation and maintenance
- Automation Integration: Streamlines operations, reduces manual involvement and ensures
consistency
Selection Considerations
When selecting an HFFS wrapping machine, evaluate these key
factors:
- Product Characteristics: Ensure compatibility with your specific product type
- Production Capacity: Match machine capabilities with your output requirements
- Packaging Dimensions: Verify adjustable range meets your packaging size needs
- Automation Level: Consider the balance between automation features and cost
- Brand Reputation and Quality: Research manufacturer reliability and machine durability
- Budget Considerations: Balance initial investment with long-term operational benefits
Our Packaging Machine Range
- VFFS machines: Granule, powder, and liquid packing machines
- Flow wrapping machines: Up paper, down paper, four side sealing flow, cookie/cake/popsicle
packing machines
- Heat Shrink Packaging Machine
- Pouch packing machines: Granule, powder, liquid doypack machines, rotary and horizontal
premade pouch machines
- Automatic packaging line solutions
- Supporting equipment: Weight inspection, metal detection, carton packing/sealing,
coding, and palletizing systems
Our machines package various foods including nuts, dried fruits,
bakery products, candies, frozen snacks, chocolate, chips, noodles,
and more.
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we provide quality products at factory
price, welcome to visit us!
Q2: What quality guarantee or warranty do you provide?
A2: We provide 3-year warranty and lifetime technical support.
Q3: When can I get the machine after payment?
A3: Delivery time depends on the specific machine model ordered.
Q4: How do you provide technical support?
A4: 24/7 support via phone, email or online platforms; installation
guides/videos; overseas engineer services available.
Q5: How does your after-sales service work?
A5: Machines are pre-adjusted before shipment; free factory
training available; lifetime technical support provided.
Q6: How about spare parts?
A6: We provide a spare parts list with each machine.
Q7: Can you help with custom design requirements?
A7: Yes, our experienced engineers can create customized solutions.
Q8: Can you analyze and design machines for new products?
A8: Yes, our technical department can analyze, design and test new
products.
Q9: What is your order process?
A9: 30% deposit -> production -> testing -> balance
payment -> shipment.
Q10: Can you send product catalog and price list?
A10: Electronic catalog available; specific pricing available upon
request.
Q11: Can I visit your factory?
A11: Yes, our factory address: Room 304, Wanchuangfang, No.155
Anzhi Road, Jiading District, Shanghai, China
