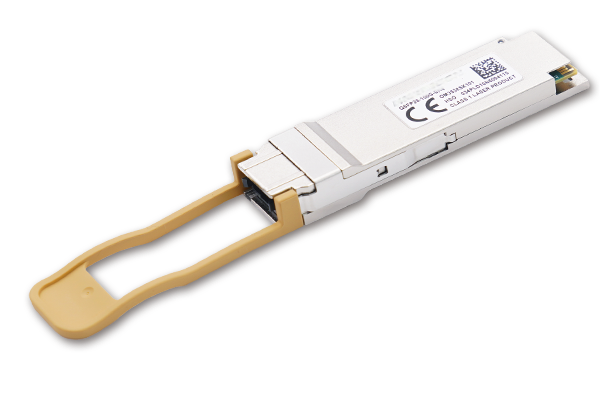

Name: Quad Small Formfactor Pluggable 100G SR4 transceiver module
Brand: CY COM
Price: 1 USD

Home >

Quad Small Form-factor Pluggable 100G SR4 transceiver module

Categories	Fiber Optic Transceivers
Brand Name:	CY COM
Model Number:	QSFP28 100G SR4
Certification:	ISO9001:2015, ISO14001:2015, ROSH
Place of Origin:	Shenzhen,China
MOQ:	10PCS
Payment Terms:	T/T, Western Union
Supply Ability:	50k/Month
Delivery Time:	5-8 days
Packaging Details:	Plastic box and Carton box
Form Factor::	QSFP28
Transceiver::	SR4
Interface::	MPO
Media::	MMF
Reach/km::	0.1km
Power Consumption/W::	3.5
Temperature/℃::	0 to 70

Contact Now

Add to Cart

Company Info.

Shenzhen CY COM Product Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Quad Small Form-factor Pluggable 100G SR4 transceiver module

Description
OM3538SX101 is a parallel full-duplex 100GE Quad Small Form-factor Pluggable (QSFP28) transceiver
designed for short-range multi-lane data communication. It offers four independent data lanes based on
850 nm VCSEL/PD array technology, and each lane is capable of 25GE operation for an aggregate data
rate of 100GE over 100 m OM4 MMF, 70 m OM3 MMF.
OM3538SX101 is compliant with the QSFP28 MSA and IEEE 802.3bm, PMD Type 100GBASE-SR4 and
CAUI-4, integrating DDM function for real-time performance monitoring and troubleshooting.
Figure 1-1 Transceiver block diagram

Pin Descriptions
OM3538SX101 is a hot-pluggable QSFP28 transceiver. Hot pluggable refers to plugging in or unplugging
a module while the host board is powered. The QSFP28 host connector is a 0.8 mm pitch 38 position
right angle improved connector specified by SFF-8661. QSFP28 module contacts mate with the host in
the order of ground, power, followed by signal as illustrated by Figure 2-1.
Figure 2-1 MSA compliant connector

Mechanical Specifications
Figure 3-1 Mechanical dimensions

Product Features
● QSFP28 MSA compliant
● IEEE 802.3bm 100GBASE-SR4 compliant
● 4 x 25.78125 Gbps electrical interface (CAUI-4)
● Transmitter: 1 x 4 Vcsel Array
● Reciever: 1 x 4 PINPD Array
● Digital diagnostic monitoring support
● Four independent full-duplex channels
● MPO-12 optical connector
● 103.125 Gbps aggregate bit rate
● Link distances up to 100 m OM4, 70 m OM3
● Operating case temperature ranges from 0°C to
70°C
● Single 3.3 V power supply
● RoHS 2 compliant

Applications
● 100GE Ethernet
● Data Center Interconnect
● Enterprise networking
