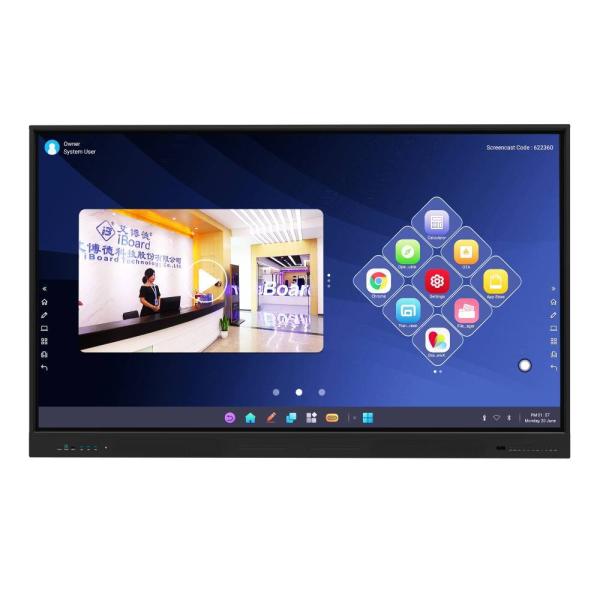

Iboard YL5W-75 Brochure for Android 13.0 8G 128G 500cd/m2 With Speaker Wifi Camera And Mic For School Project Office meetings Use

Categories Iboard Interactive Whiteboard
Brand Name: iBoard
Model Number: TE-YL5W-75
Certification: CE/ROHS/LV/IEC/ISO certificates,etc.
Place of Origin: China
MOQ: 1PC
Price: USD990-1100/pc
Payment Terms: L/C, T/T
Supply Ability: 3000PCS Per month
Delivery Time: 15-18 working days
Packaging Details: carton Box, optional with wooden crate or box
Camera: optional to built in
Speaker: 20W × 2 + 20W subwoofer
Microphone: Optional with camera
Wifi: 6
VESA mount: 600 × 400 mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Iboard YL5W-75 Brochure for Android 13.0 8G 128G 500cd/m2 With Speaker Wifi Camera And Mic For School Project Office meetings Use

iboard YL5W-75 Brochure for Android 13.0 8G 128G 500cd/m2 With Speaker Wifi Camera And Mic For School Project Office meetings Use

Features:

75" (IPS, Ultra HD 4K) - Resolution: 3840x2160 (UHD) - Glow: 500 nits - Contrast: 1200:1 (typical), 6000:1 (DCR) - Display area: 1649.5mm(H)x927.3mm(V) - Response time: 8 ms - Viewing angles: 178° (H) / 178° (V) - Surface treatment: Anti-reflective, 7H hardness - Backlight lifespan:50,000 hours (at 8 hours per day)


- Guy:Ultra Fine Touch (infrared recognition) - Touch points: 50/40(Windows)/(Android) - Touch resolution: 32,768 × 32,768 - Pencils included:2(IBOARD Pen)


--Android sytem: A73*4+A53*4 RAM 8GB Storage : 128GB, Android 13


--Certificate:1.ENVIRONMENTAL MANAGEMENT SYSTEM CERTIFICATE GB/T24001-2016/ISO14001:2015
2.QUALITY MANAGEMENT SYSTEM CERTIFICATE ISO 9001:2015 standard
3.EMC
4.CE/LVD
5.ROHS
6.IECEE IEC 62368-1:2018
7.ENERG STAR


Specification sheet:

ItemIboard YL5W-75 Brochure for Android 13.0 8G 128G 500cd/m2 With Speaker Wifi Camera And Mic For School Project Office meetings Use
ModelTE-YL5W-75
Backlight typeD-LED Backlight
Resolution3840*2160 Ultra HD 4K
Brightness500 cd/㎡
Contrast ratio1200:1 (typical), 6000:1 (DCR)
Screen size (mm)1649.5*927.3
Viewing angle178° (H) / 178° (V)
Backlight lifespan50,000 hours (at 8 hours per day)
Paenl response time8ms
Surface treatment/GlassAnti-reflective, 7H hardness,Anti-glare
Touch technologyUltra Fine Touch (infrared recognition)
Touch points40 (Windows)/(Android) - Pencils included
Touch resolution32,768 × 32,768
Android version13
CPUCPU: Octa-core (ARM Cortex-A73×4 + Cortex-A53×4) - RAM: 8 GB - Storage:128GB
Input ports

Rear: HDMI x2, USB2.0x1,USB 3.0 x2, TOUCH USB x 2, TF card x1, RS232 x1, RJ45 In x1, MIC x1, DP x1 , VGA/Audio x1, USB-C x1(65W PD Charge) , OPS slotx1

Front: USB 3.0x 3 , HDMI2.0x 1, Touch USB B Typex 1, USB-Cx 1

Output PortsHDMI OUT x1, Coaxial x1, Headphonex 1 , RJ45 out x1
Light sensorYes, it is an integrated brightness detector that automatically adjusts the brightness of the panel according to ambient light.
Camera & Micexternal camera and mic mounted ,Model: IBM20
VoltageAC(100~240)V-50/60HZ
VESA MOUNT600x400mm
Audio20W*2 speaker+20W subwoofer
AccessoriesMagnetic touch Pens*2, HDMI Cable*1, Touch USB Cable*1, Power Cable*1, Remoter*1, Wall mounting bracket *1,RS232 cable(optional),camera mounted screws,(optional) warranty certificate(optional), guide manual (integrated or print, optional)
Dimension1700x1047.8x82.6mm
Net weight (kgs)50Kgs

Packing : 1pc/carton, optional with wooden crate or box


Shipping: by sea,by air, by truck optional


For more info, please check our data sheet
