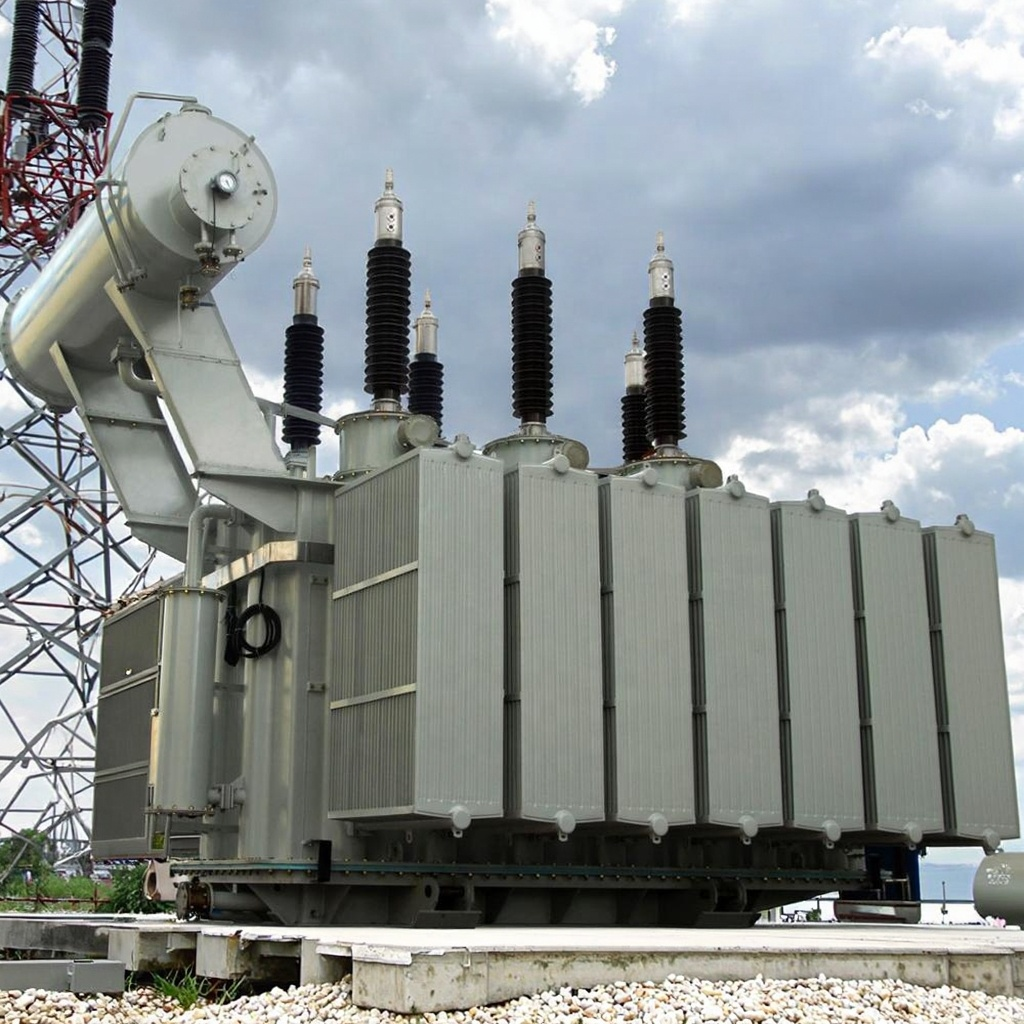

110kV High Voltage Transformer with IP23 Protection and IEC 60076 Compliance for Efficient Power Transmission

110kV High Voltage Transformers for Utilities & Industry | Low Loss & Efficient
High Voltage Rating for Efficient Power Transmission

Designed for regional power grids, large-scale industrial facilities, and renewable energy booster stations. These transformers enhance long-distance transmission efficiency while minimizing line losses.

  • Robust insulation system with exceptional high-voltage shock resistance
  • Optimized for maximum transmission efficiency
Flexible Configuration Options

Multiple cooling structures and wiring methods for diverse application requirements:

  • Cooling methods: ONAN, ONAF, and OFWF
  • Wiring group options: YNd11 and YNyn0 configurations
  • Optional intelligent monitoring system for remote status tracking
Internationally Certified Quality

Manufactured to meet global standards with reliable craftsmanship:

  • Compliance with IEC, ANSI, and GB standards
  • Third-party testing available (SGS, KEMA)
  • Premium materials and vacuum drying technology ensure insulating oil and winding quality
  • Global export capability to Middle East, Africa, Southeast Asia, and South America
110kV High Voltage Transformer technical diagram
Technical Specifications
Rated Power (KVA)High Voltage (HV)Low Voltage (KV)Connection SymbolShort Circuit ImpedanceNo-load Loss (W)On-load Loss (W)No load Current (%)
6300110 1216.3 6.6 10.5 11YNd1110.510000360000.8
8000110 1216.3 6.6 10.5 11YNd1110.512000450000.8
10000110 1216.3 6.6 10.5 11YNd1110.514200530000.74
12500110 1216.3 6.6 10.5 11YNd1110.516800630000.74
16000110 1216.3 6.6 10.5 11YNd1110.520200770000.69
20000110 1216.3 6.6 10.5 11YNd1110.524000930000.69
25000110 1216.3 6.6 10.5 11YNd1110.5284001100000.64
31500110 1216.3 6.6 10.5 11YNd1110.5338001330000.64
40000110 1216.3 6.6 10.5 11YNd1110.5404001560000.58
50000110 1216.3 6.6 10.5 11YNd1110.5478001940000.58
63000110 1216.3 6.6 10.5 11YNd1110.5568002340000.52

Widely used in power plants, substations, and large industrial facilities. Incorporates advanced domestic and international technologies with optimized design for core, winding, active parts, leads, and tank.

Key Features
  • Low partial discharge and minimal operational losses
  • Reduced noise emission levels
  • Lightweight yet highly reliable construction
  • Stable performance with economic and environmental benefits
