| Categories | Hydraulic Pump Excavator Parts |
|---|---|
| Brand Name: | Belparts |
| Model Number: | R210LC-9 |
| Place of Origin: | Made in China |
| MOQ: | 1 piece |
| Price: | Negotiable price |
| Payment Terms: | T/T, Paypal and Trade Assurance |
| Supply Ability: | 1000pieces |
| Delivery Time: | 1-7days |
| Packaging Details: | Wooden packing |
| Model: | R210LC-9 |
| Part number: | 31Q6-10100 |
| Application: | Excavator, Engineering machinery equipment |
| Appliion: | excavator |

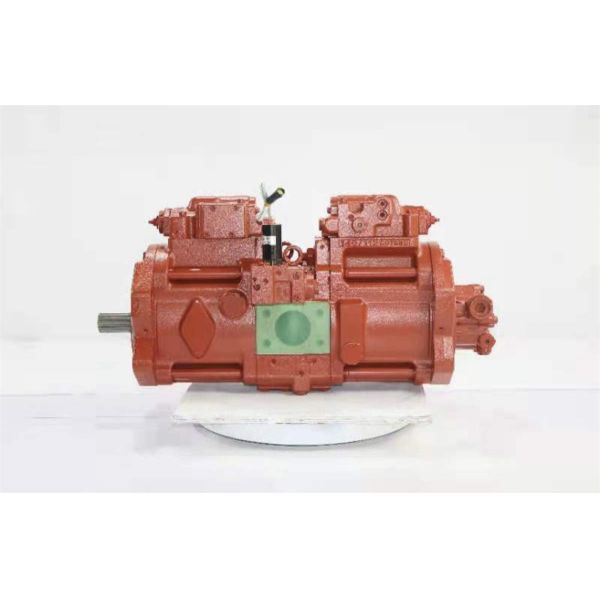

| Name: | hydraulic main pump assembly |
| Highlight: | crawler excavator K3V112DTP-9C14 R210LC-9 31Q6-10100 hydraulic main pump |
| Usage: | hyundai crawler excavator |
| Condition: | new/used |
| Company Info. |
| GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
| Application | Excavator |
|---|---|
| Part Name | Hydraulic Main Pump |
| Model | R210LC-9 |
| Part Number | K3V112DTP-9C14 31Q6-10100 |
| Warranty | 3-12 months |
| Payment Term | T/T, Trade Assurance, Paypal and etc. |
| Brand | Hitachi or as required |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | 31Q6-10100 | MAIN PUMP *-1,*-2,*-3,*-4 | 1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| NS141 | XJBN-00067 | BLOCK-CYLINDER | 2 | |
| NS151 | XJBN-01032 | PISTON | 18 | |
| NS152 | XJBN-01214 | SHOE | 18 | |
| 153 | XJBN-00945 | PLATE-SET | 2 | |
| 156 | XJBN-00083 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00084 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00085 | PLATE-SHOE | 2 | |
| NS212 | XJBN-00780 | PLATE-SWASH | 2 | |
| S214 | XJBN-00071 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00779 | SUPPORT | 2 | |
| 312 | XJBN-00776 | COVER-VALVE | 1 | |
| NS313 | XJBN-01035 | PLATE-VALVE(R) | 1 | |
| NS314 | XJBN-01036 | PLATE-VALVE(L) | 1 | |
| 316 | XJBN-00690 | COVER | 1 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 8 | |
| 409 | XJBN-00696 | SCREW-HEX | 2 | |
| 410 | XJBN-00775 | SCREW-HEX | 12 | |
| 412 | XJBN-00774 | SCREW-HEX | 1 | |
| 467 | XJBN-00265 | PLUG | 2 | |
| 491 | XJBN-00234 | PLUG | 9 | |
| S531 | XJBN-00771 | PIN-TILTING | 2 | |
| 532 | XJBN-00770 | PISTON-SERVO | 2 | |
| 534 | XJBN-01124 | STOPPER(L) | 2 | |
| 535 | XJBN-00093 | STOPPER(S) | 2 | |
| 536 | XJBN-00768 | COVER-SERVO | 2 | |
| NS548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| 703 | XJBN-00915 | O-RING | 2 | |
| 709 | XJBN-00387 | O-RING | 1 | |
| 725 | XJBN-00045 | O-RING | 2 | |
| 732 | XJBN-00904 | O-RING | 2 | |
| 752 | XJBN-00763 | PACKING-SEAT | 1 | |
| 789 | XJBN-00099 | RING-BACK UP | 2 | |
| 793 | XJBN-00761 | RING-BACK UP | 2 | |
| 806 | XJBN-00101 | NUT-HEX | 2 | |
| 807 | XJBN-00760 | NUT | 2 | |
| 885 | XJBN-00103 | PIN-VALVE PLATE | 2 | |
| 886 | XJBN-00054 | PIN-SPRING | 2 | |
| 888 | XJBN-00712 | PIN | 1 | |
| 953 | XJBN-00757 | SCREW-SET | 2 | |
| 954 | XJBN-00392 | SCREW-SET | 2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 | 2 | |
| *-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4040 | 1 | |
| *-4 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4045 | 1 | |
| S | XJBN-01039 | PISTON SUB ASSY SEE ILLUST | 2 | |
| S | XJBN-01040 | CYLINDER SUB ASSY-RH SEE ILLUST | 1 | |
| S | XJBN-01041 | CYLINDER SUB ASSY-LH SEE ILLUST | 1 | |
| S | XJBN-00756 | SWASH PLATE ASSY SEE ILLUST | 2 | |
| S | XJBN-00754 | TILTING PIN ASSY SEE ILLUST | 2 |
To truly understand your excavator's hydraulic power, you need to know its two vital signs: Pressure (PSI/Bar) and Flow (GPM/LPM). Think of them as the dynamic duo working together inside your hydraulic pump. Flow (GPM/LPM) is the volume of hydraulic oil the pump delivers per minute. It determines the speed of your hydraulic functions – how fast the boom raises, the arm curls, or the bucket dumps. More flow generally means faster cylinder and motor movement. Pressure (PSI/Bar), generated by the pump and regulated by the system, is the force behind that oil. It determines the power or strength – how much weight the boom can lift, how hard the bucket can dig into tough ground, or how much force the tracks can apply to push. The pump creates flow; resistance in the system (like a cylinder trying to lift a heavy load) creates pressure. A powerful pump delivers high flow at high pressure. It's crucial they are balanced for your machine. Too little flow, and movements are sluggish. Too little pressure, and the machine lacks digging or lifting force.
|
