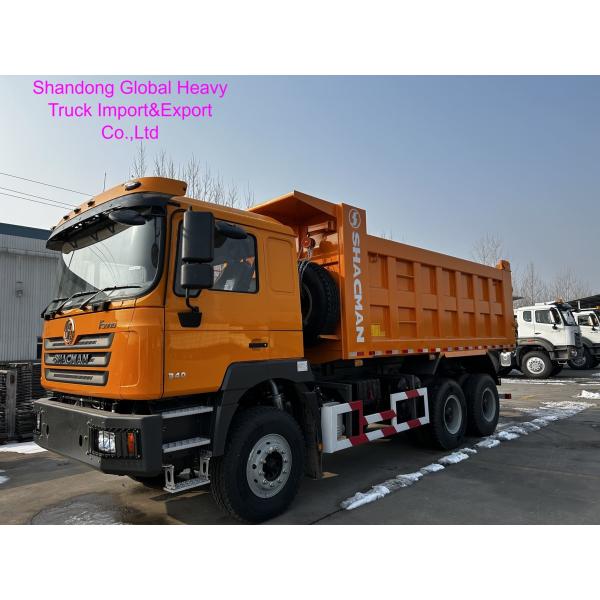

Shacman F3000 6x4 400HP Dump Truck

Product Overview

The Shacman F3000 6x4 Dump Truck is engineered for heavy-duty applications in construction, mining, and logistics. With a powerful 400HP engine, reinforced chassis, and large payload capacity, it is ideally suited for Lagos, Nigeria’s demanding road and project conditions.

Main Specifications

• Brand: Shacman

• Model: F3000 6x4 Dump Truck

• Drive Type: 6x4 (Left Hand Drive, optional Right Hand Drive)

• Engine: Weichai WP10.400E32 / 400HP, Euro II/III emission standard

• Horsepower: 400 HP

• Displacement: 9.7L

• Transmission: Fast brand 10JSD/12-speed manual gearbox

• Clutch: Reinforced single dry plate, 430 mm

• Axle:

  • Front Axle: 7.5T

  • Rear Axle: 16T double reduction, hub reduction optional

  • Ratio: 4.77 / 5.73 available

• Suspension: Leaf spring, reinforced, front 9 + rear 12

• Frame: 8 + 8 + 8 mm double-layer high-strength steel

• Steering: Hydraulic power steering, ZF technology

• Brakes: Air brake system, ABS optional

• Cabin: F3000 high-roof cabin with A/C, sleeper, adjustable seats

• Fuel Tank: 400L aluminum alloy

Dump Body

• Type: U-shape or square box

• Box Size: 5600–5800 × 2300 × 1500 mm (customizable)

• Material: High-strength steel Q345 / NM450

• Thickness: Bottom 8–10 mm, side 6–8 mm

• Capacity: 25–30 tons payload

• Hydraulic System: HYVA brand cylinder for fast lifting

Dimensions & Weight

• Overall Dimensions (L×W×H): 8614 × 2490 × 3450 mm

• Wheelbase: 3775 + 1400 mm

• Curb Weight: 12,500–13,000 kg

• GVW (Gross Vehicle Weight): 25,000–30,000 kg

• Max Speed: 80–90 km/h

Applications in Lagos, Nigeria

• Hauling sand, gravel, and asphalt for road projects

• Quarry and mining transport (limestone, granite)

• Bulk material movement in ports (Apapa, Lekki)

• Waste disposal and municipal projects

FAQs

Q1: Can the truck handle Lagos bad road conditions?
Yes, the reinforced chassis, high ground clearance, and heavy-duty suspension make it suitable for both city and rural roads.

Q2: How much fuel does it consume?
Average fuel consumption is 35–38 liters per 100 km, depending on load and terrain.

Q3: Are spare parts available in Nigeria?
Yes. Shacman has authorized spare parts dealers and service partners in Lagos and across Nigeria.

Q4: What about after-sales support?
We provide remote technical guidance, local workshops in Lagos, and quick spare parts supply.

Q5: Can the dump body be customized?
Yes. Box size, thickness, and material can be adjusted based on project requirements.

Q6: What is the delivery time?
Usually 30–40 days after order confirmation.
