| Categories | Fiber Optic Gyroscope |
|---|---|
| Brand Name: | JTZG |
| Place of Origin: | china |
| MOQ: | negotiable |
| Price: | negotiable |
| Delivery Time: | According to customer's requirement |
| Payment Terms: | Negotiable |
| Supply Ability: | Strong production capacity |
| Grade: | Industrial |
| Power Supply: | -5,+5V |
| Module Type: | Gyroscope |
| Product Name: | Single Axis Gyroscope |
| Applications: | Aerospace, Defense, Navigation, Robotics |
| Original Place: | China |
| Operating Temperature: | -40°C To +85°C |
| Features: | Digital Closed-loop Mode |
| Company Info. |
| Wuhan Jingtian Zhiguang Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

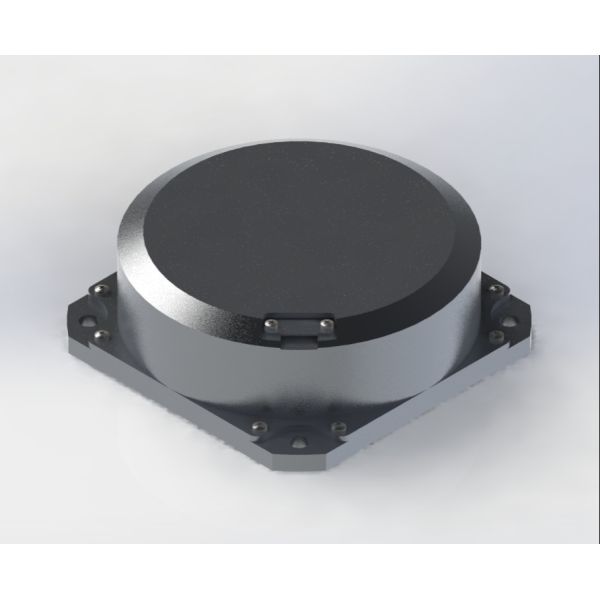

The Fiber Optic Gyroscope is an advanced technology product designed for precise measurement of angular velocity. Originating from China, this cutting-edge device is equipped with a Digital Closed-loop Mode, ensuring accurate and reliable performance in various applications.
As a part of the Fiber Optic family, this gyroscope serves as a crucial component in systems such as Fiber Optic Inertial Navigation Systems and Fiber Optic Inertial Measurement Units. Its high level of sensitivity and precision make it ideal for use in demanding environments.
The Single Axis Gyroscope is built to withstand extreme conditions, with an operating temperature range from -40°C to +85°C. This wide temperature tolerance ensures the device's functionality even in harsh climates or industrial settings.
Powered by a dual power supply of -5V to +5V, this gyroscope offers flexibility in integration with various systems and equipment. The robust power supply range enables seamless operation and compatibility with different power sources.
Overall, the Fiber Optic Gyroscope serves as a reliable Fiber Optic
Angular Velocity Sensor, catering to industries that require
precise measurement and control of angular motion. Its advanced
features and high performance capabilities make it a top choice for
applications demanding accuracy and stability.
| Gyro Level | standard | A | B | C |
| Range ( °/s) | ±150 | ±150 | ±120 | ±40 |
| Bias stability ( °/h) , 100 s | < 0.01 | < 0.01 | < 0.005 | < 0.003 |
| Zero bias repeatability ( °/h) | < 0.01 | < 0.01 | < 0.005 | < 0.003 |
| Random walk coefficient ( °/√h) | ＜0.001 | ＜0.001 | < 0.0005 | < 0.0003 |
| Scale factor non-linearity ( ppm ) | ＜30 | ＜30 | < 20 | < 10 |
| Scale factor asymmetry ( ppm ) | ＜30 | ＜30 | < 20 | < 10 |
| Scale factor repeatability ( ppm ) | ＜30 | ＜30 | < 20 | < 10 |
| Frequency bandwidth ( Hz ) | ≥100 | |||
| Startup time ( s ) | ≤5 | |||
| Magnetic shielding | The optical fiber ring of key sensitive devices has magnetic shielding | |||
| Power supply ( V ) | 6~16V power supply | |||
| Power consumption ( W ) | ≤5 | |||
| Dimensions ( mm ) | 98*98* 32 | 98*98* 35 | ||
| Weight ( g ) | 450±10 | |||
| Output method | RS-422 | |||
| Operating temperature (°C) | -20 ℃ ~ + 60 ℃ | |||
| -40 ℃ ~ + 60 ℃ | ||||
| Storage temperature (℃) | -55 ℃ ~+8 5 ℃ | |||
| Communication interface | DB9, J30 J - 15 -TJ , customizable | |||
|
