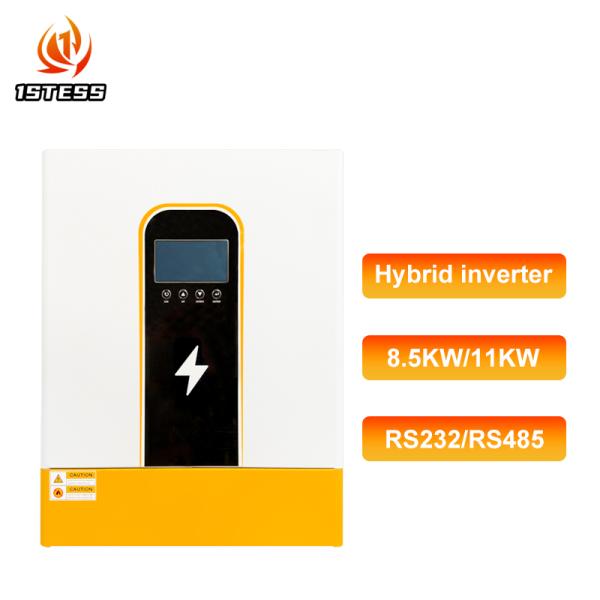

48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units

Categories Solar Hybrid Inverter
Brand Name: COENG
Model Number: M11000T-48PL
Certification: CE, IEC
Place of Origin: Guangdong, China
MOQ: 1
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000piece/month
Delivery Time: 10-30working days
Packaging Details: Carton, pallet
Size: 540*415*122mm
Battery Voltage: 48V
Input Voltage: 230vac
OEM: Accept OEM
Inverter Type: Hybrid Solar Inverter
Output Type: Single, Pure Sine Wave
Gross Weight: 15.5kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units

M8500T-48PLM11000T-48PL
Model NumberM8500T-48PLM11000T-48PL
Place of OriginChinaChina
Mounting MethodWall BracketWall Bracket
Nominal Battery Voltage (V)48VDC48VDC
Parallel Capacity·YES, 6unitsYES, 6units
Lithium Battery activationYES( By PV or Utility)YES( By PV or Utility)
Nominal Voltage230VAC230VAC
Frequency50/60Hz50/60Hz
WaveformPure Sine wavePure Sine wave
Solar Charger TypeMPPTMPPT
Communication InterfaceRS232+RS485+Dry-contactRS232+RS485+Dry-contact
PV Array MPPT Voltage Range60VDC~500VDC60VDC~500VDC
Surge Power17000VA22000VA
Size540*415*122mm540*415*122mm
Weight14.5kg15.5kg
Operating Temperature Range(-10'℃ to 50℃)(-10'℃ to 50℃)
Product Features.
  1. Dual AC output
  2. Built-in 2 MPPT
  3. Parallel max up to 6 units
  4. Lithium battery activation function by PV or Utility
  5. Compatible work with LiFePO4 battery via RS485
  6. Pure Sine Wave
  7. Power factor 1.0
  8. PV Input 500Vdc Max
  9. Built-in MPPT 140A/160A
  10. Capable to work without battery
  11. Detachable dust cover for harsh environment
  12. Wifi remote monitoring optional
  13. Support multiple output priority: SuB, SBU, SUF
  14. EQ function to optimize battery performance and extend lifecycle
