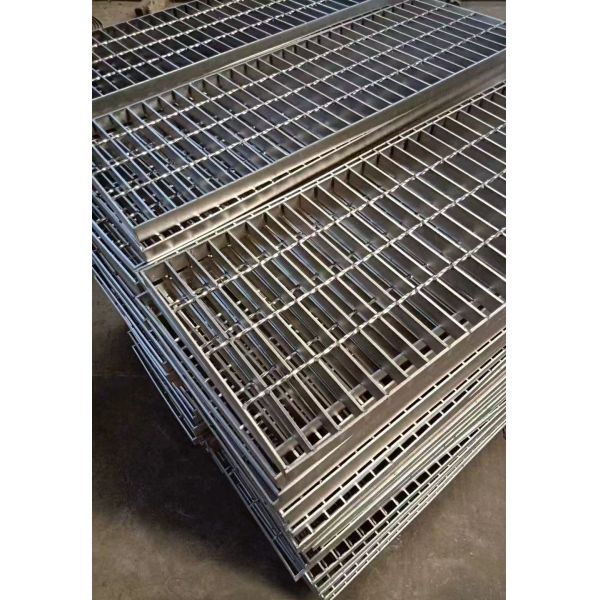

Galvanized Metal Walkways Gratings / Industrial Walkway Grating 1.2M Width

1.2 M Width Galvanized Walkway Floor Gratings

Galvanized Walkway Floor Gratings Description:

Galvanized Walkway Floor Gratings are widely used in the oil and gas industry, petro-chemical industry, mining industry and in power stations. When there's platform flooring has to be changed frequently, press welded grating is a good choice.

Serrated Swage-locked Steel Grating Specifications:

Product name	Galvanized Walkway Floor Gratings
Material	Q195
Technique	Press Welded, Manual Welded
Bearing Bar Pitch	25,30,34,40mm, etc.
Cross Bar Pitch	30,50,76,100mm, etc.
Bearing Bar Thickness	3-80mm
Bearing Bar Width	25-150mm
Surface Treatment	Galvanized
Colour	Silver
Style	Serrated, Flat

Common Product Specifications (In mm)

Bearing bar pitch	Cross-bar pitch	Specification of bearing bar (width x thickness)
Bearing bar pitch	Cross-bar pitch	20x3	25X3	32X3	40X3	20X5	25X5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50	G203/60/50	G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Bearing bar pitch	Cross-bar pitch	Specification of bearing bar (width x thickness)
Bearing bar pitch	Cross-bar pitch	32x5	40x5	45x5	50x5	55X5	60X5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Serrated Swage-locked Steel Grating Features:

Durable
High Load-Bearing Capacity
Improved Safety
Maintenance Free
Long Lifespan
Aesthetics
Easy Installation

Serrated Swage-locked Steel Grating Applications:

Steel gratings are widely used as stair tread, walkway, optional platform, catwalk stage, floor, showcase ground, ceiling, window, sun visor, fountain panel, ramp, lifting track, tree cover, trench cover, drainage cover, industrial truck, bridge construction, decorative wall, security fence, transformer reservoir, chair, shelve, stand, observation tower, baby carriage, substation fire pit, clean area panel, split obstacle or screen, food panel, etc.

Product Tags:


*From:	Your email address is incorrect!
*To:	HeBei Reinforce Pipeline Mesh Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Steel Grating
Brand Name:	REINFORCE
Model Number:	RE-STEEL 3
Certification:	ISO9001
Place of Origin:	China
MOQ:	50 square meters
Price:	USD 15 / square meter
Payment Terms:	T/T
Supply Ability:	5000 square meters thirty days
Delivery Time:	14-20 work days
Packaging Details:	After the steel belt is tied, it is placed on the pallet.
Product Name:	1.2 M Width Galvanized Walkway Floor Gratings
Key words:	Galvanized Steel gratings
Material:	aluminum，carbon steel,stainless steel
Bearing bar type:	rectangular, I type and T type
Cross bar type:	square twisted bars or round bars
Technique:	Press Welded, Manual Welded
Bearing Bar Pitch:	25,30,34,40 mm, etc.
Cross Bar Pitch:	30,50,76,100 mm, etc.
Bearing Bar Thickness:	3-80 mm
Bearing Bar Width:	25-15 mm
