| Categories | Electric Linear Actuators |
|---|---|
| Brand Name: | Linsheng Auto II MaxM |
| Model Number: | LS-INLA-4 |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | USD 99 ~USD 299/PC |
| Payment Terms: | L/C, T/T, PayPal |
| Supply Ability: | 1000pcs/month |
| Delivery Time: | 2 weeks |
| Packaging Details: | Carton |
| Voltage: | DC24V / 12V |
| Load force: | 3000N |
| Speed: | 6mm/s (free load); 3mm/s (rated load) |
| Stroke: | 20mm - 500mm |

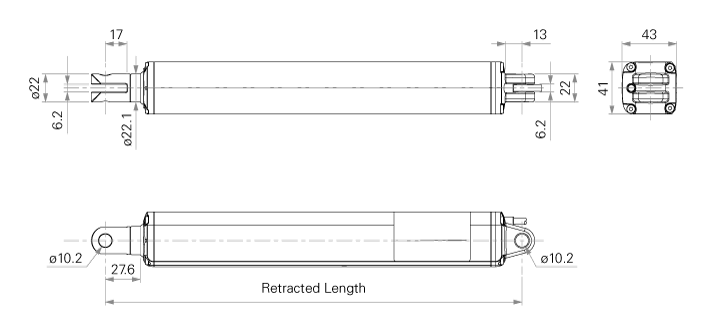

| Retracted length: | ≧ Stroke+248mm |
| Signal output: | Hall sensors |
| IP rating: | IP66 |
| Working temperature: | -20°C~+60°C |
| Limit switches: | Built in |
| Company Info. |
| LINSHENG INTERNATIONAL ENTERPRISE CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
High-quality Aluminum Actuator DC 24V 3000N IP66 for Greenhouse Building Ventilation

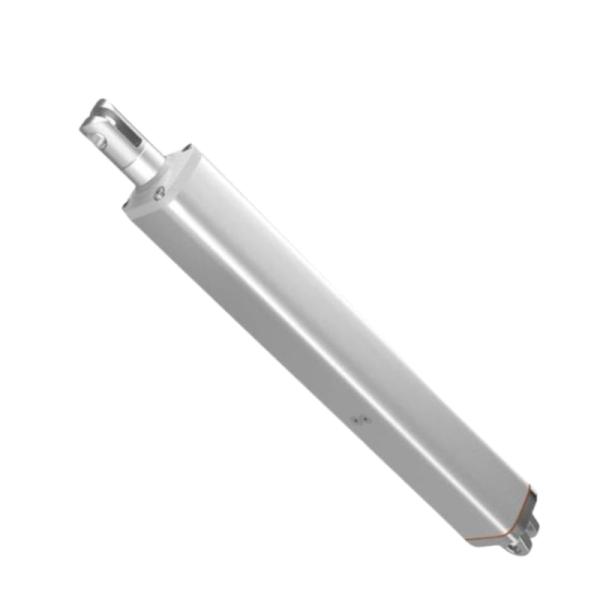

The LS-INLA-4 inline actuator is powered by a 12V/24V DC motor and delivers up to 3000N thrust. It is specially designed for ventilation systems to rapidly exhaust smoke and heat during a fire, helping maintain a safer smoke layer near the floor. Built with durable aluminum, it is well-suited for building and greenhouse applications.
Specifications:
| Model | LS-INLA-4 |
| Load force | 3000N (300KG) |
| Voltage | 12V / 24V DC |
| Speed | 3mm/s - 6mm/s |
| Stroke | 20mm - 500mm |
| IP rating | IP66 |
| Limit switches | In-built |
| Signal output | Hall sensors |
Features:
- High-quality aluminum Construction
- Long-lasting durability
- Precision control
Applications:
- Industrial Smoke Extraction
- Automated Greenhouse Window System
- Building ventilation




About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is
specialized in Auto motion, motion remote control systems,
automobile safety and security electronics for more than 10
years.Our products have strict quality control and all of them with
CE, FCC that are certificated by SGS. With an experienced R&D
department of 19 engineers team, we can provide customized design
and molding to support your OEM/ODM projects.
Support and Services:
All our products come with a one-year warranty. We provide
technical support and services for Linear Actuator Controllers. Our
team of engineers and technicians are available to help you
troubleshoot any problems you may be having with your Linear
Actuator Control box.
Packing and Shipping:
All our products are packaged carefully before shipping. The box is
sealed with tape and labeled with the product name and shipping
address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
|
